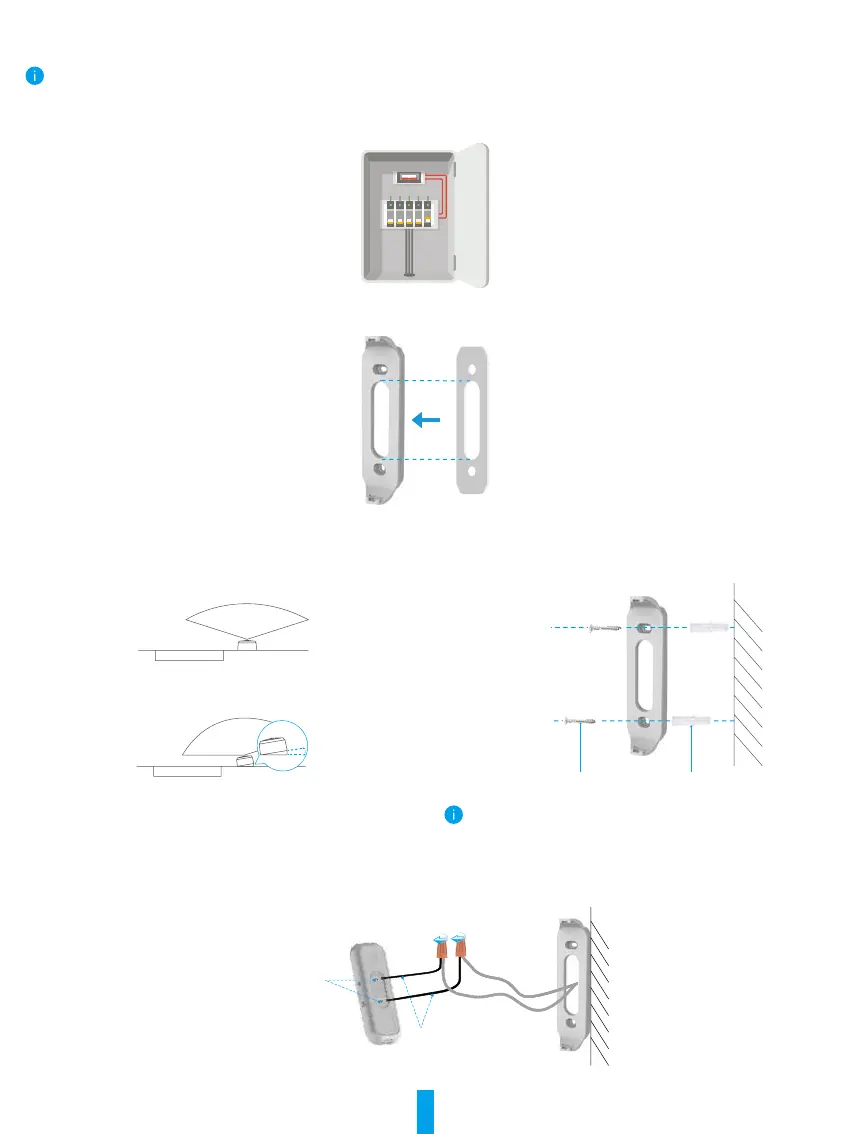

Doorbell Installation
RecommendedInstallationHeight:1.2m(4ft)abovetheground.
1
Shut off the electricity at the breaker that controls doorbell's circuit.
2
(Optional) When the wall is uneven, paste the plate foam to the mounting plate.
3
Use the mounting plate, or use the inclined mounting plates as a supplementary mounting bracket if you wish to see more on
a specific side.
Using your mounting plate as a template, mark the location of the two mounting holes on your wall, and insert anchors, then
fix the mounting plate to the wall.
Door
Doorbell
Without Inclined Mounting Plate
Door
Doorbell
15°
With Inclined Mounting Plate
AnchorMounting Screw
Recommended Hole Depth: 25 to 30 mm (1 inch to 1.2 inch).
4
If you have a chime installed, follow Option A; If not, follow Option B.
Option A
Connect doorbell with your existing doorbell wires�
Power Supply: 16 to 24 VAC
U-Shaped Wire
Fixing Screw
