SETTING UP YOUR CARAVAN
KITCHEN
Your Winton caravan can be optionally equipped with a quality stainless steel kitchen complete with 4 burner cook
top, sink and dryer rack. It is important to learn how to open and close your kitchen so it is secured when driving
and fully supported when at camp.

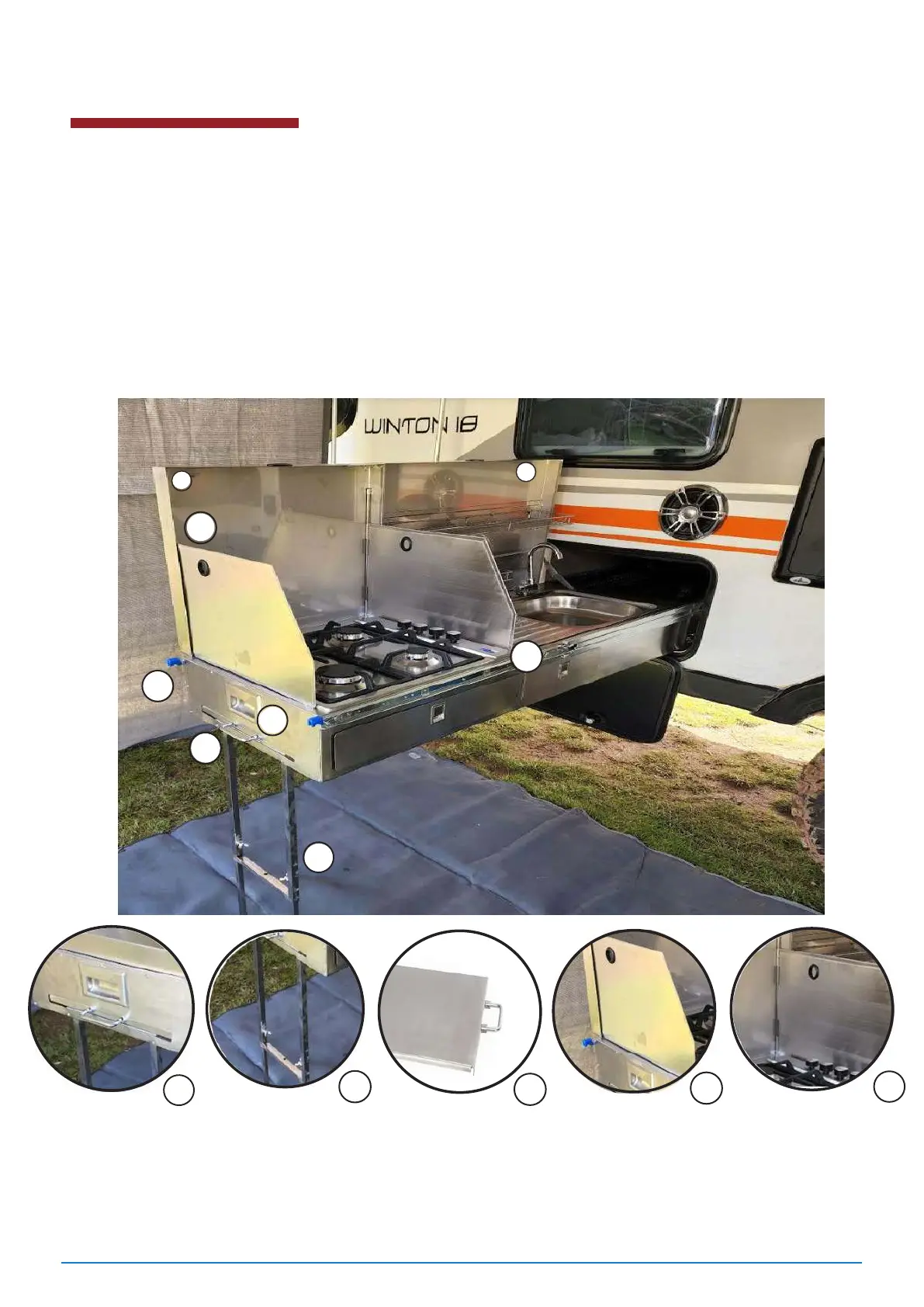

• Before sliding out kitchen, release the two locking levers (1)
• Slide the kitchen out by pulling on the fixed handle (2)
• When the kitchen is extended, fold down the support legs and adjust the height to suit (3)
• Once extended, pull the handle at the end to extend the kitchen prep space table (4)
• Push windguard A up and stop once the locking hinge clicks signaling it is in place (5)
• Push windguard B up making sure it is equal to windguard A, push on clip A at top left hand corner, once it has clicked
the windguards will be locked together in place. (5)
• On windguard B lift side windguards up and pull out ends to reach their respective sides of the cooker, place into their
designated holes to keep the side winds guards from moving. (5)
