TORQUE SPECIFICATIONS, SDA-2300
–21–
75 FT-LBS
1 5/16-12 STUD PILOTED
750-800 FT-LBS
250 FT-LBS
75 FT-LBS
175 FT-LBS

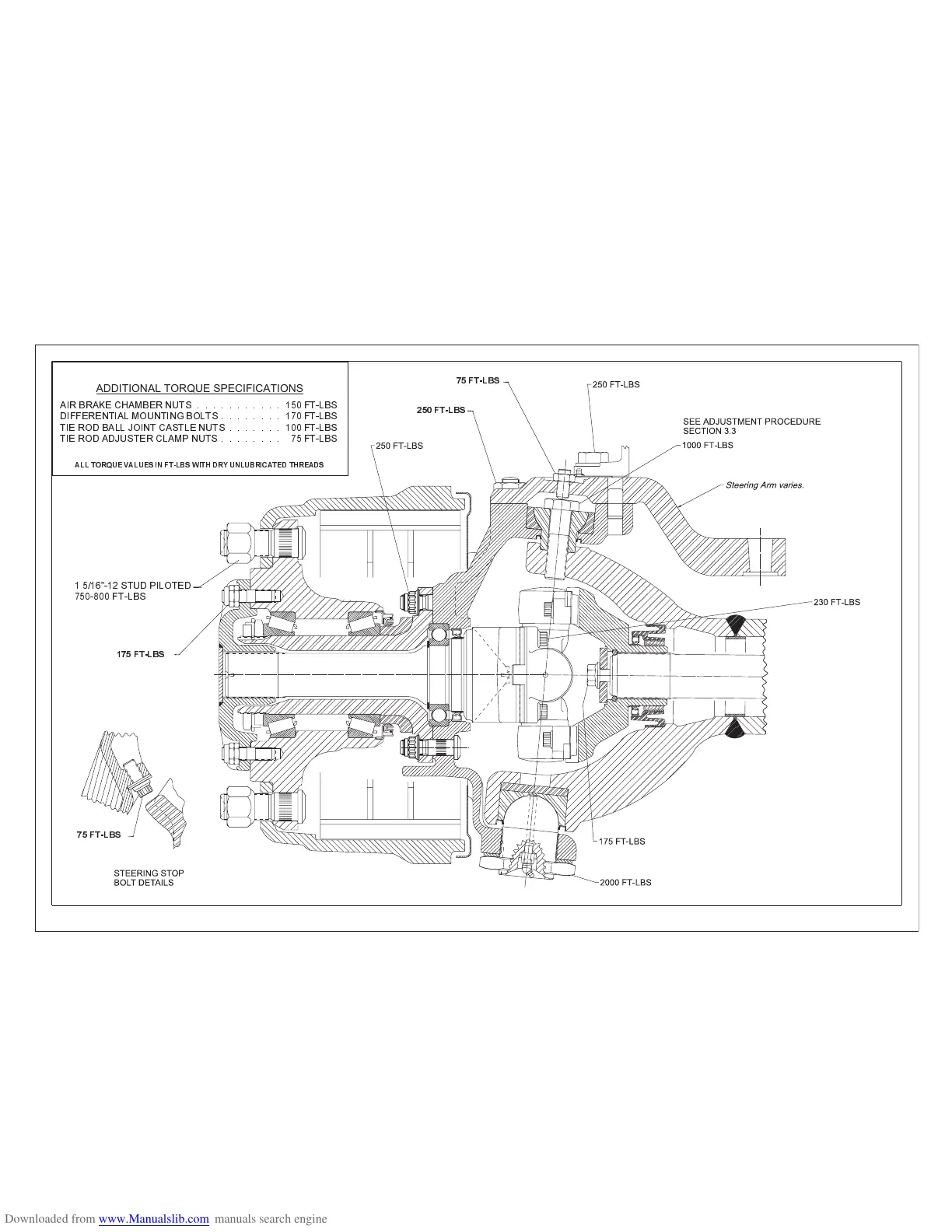

ADDITIONAL TORQUE SPECIFICATIONS
AIR BRAKE CHAMBER NUTS ...........150 FT-LBS
DIFFERENTIAL MOUNTING BOLTS ........170 FT-LBS
TIE ROD BALL JOINT CASTLE NUTS .......100 FT-LBS
TIE ROD ADJUSTER CLAMP NUTS ........ 75 FT-LBS
ALL TORQUE VALUES IN FT-LBS WITH DRY UNLUBRICATED THREADS
STEERING STOP
BOLT DETAILS
250 FT-LBS
SEE ADJUSTMENT PROCEDURE
SECTION 3.3
1000 FT-LBS
Steering
Arm varies.
230 FT-LBS
