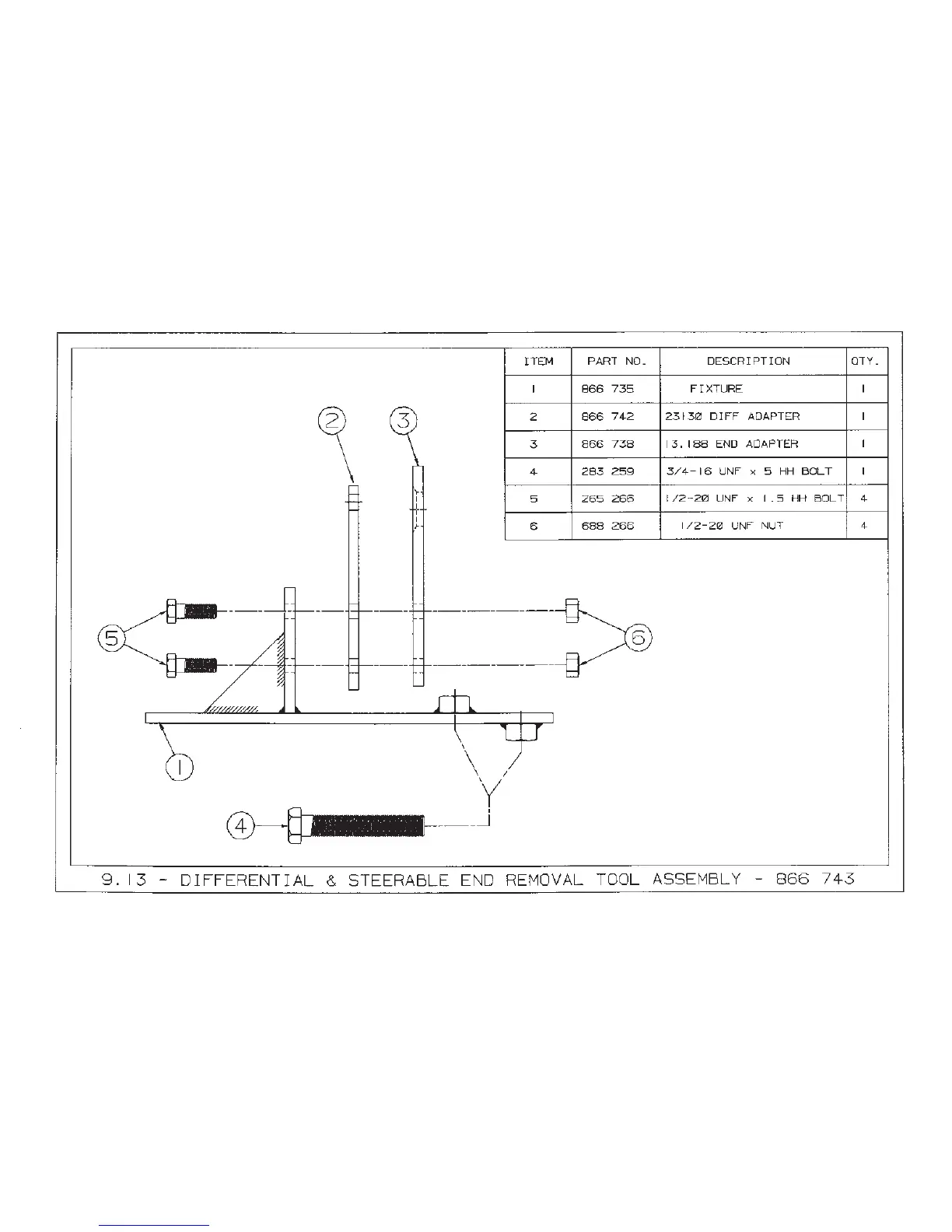

Fabco SDA-2300 - 9.13 DIFFERENTIAL & STEERABLE END REMOVAL TOOL ASSEMBLY

–34–
tTEM
PART NO. DESCRIPTION
QTY.
866 735
FIXTURE
2
866 742
23130 DIFF ADAPTER
3
866 738 13. 188 END ADAPTER
4
283 259
3/4-16 UNF x
5 HH BOLT
5
265 266
1/2-20 UNF x
I. 5 HH BOLT 4
I
>- 6
688 266
1/2-20 UNF NUT 4
I
\ I
'Y
I
___ _I
9. 13 - DIFFERENTIAL & STEERABLE END REMOVAL TOOL ASSEMBLY - 866 743
