Version 12/04 - Page 5

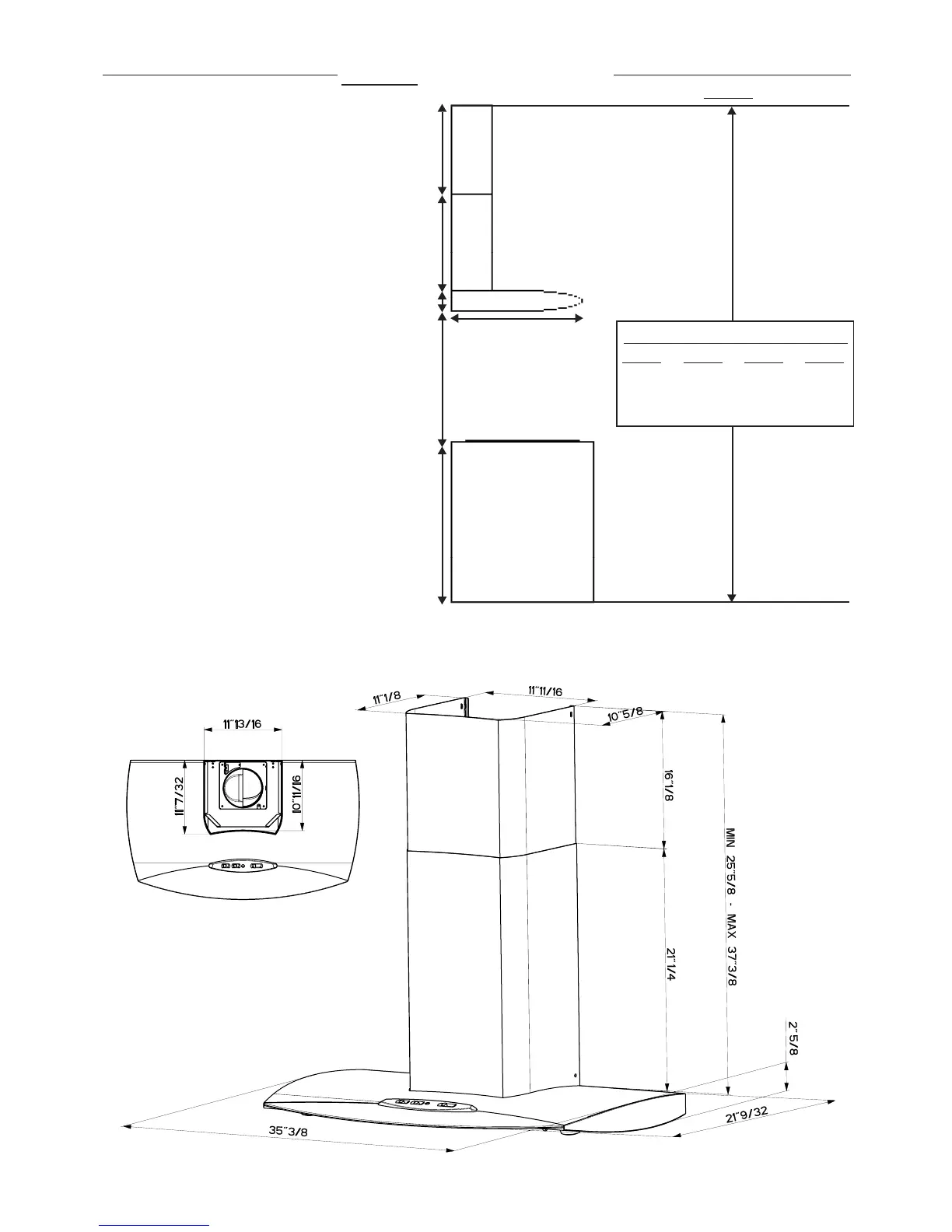

DUCTED INSTALLATION DIMENSIONS
The Axia Plus chimneys are adjustable and
designed to meet varying ceiling heights as
indicated in FIGURE 4. The chimneys can be
adjusted for ceilings between 7' 4 1/4" and 8'
10" depending on the distance between the
bottom of the hood and the cooktop (distance
x). For shorter ceilings, have the chimney
cover(s) cut at a sheet metal shop. For
higher ceilings, the High Ceiling Chimney
Kit includes a new 40” upper chimney which
would replace the 16 1/8” upper chimney that
came with the hood.
Note: If 24" or 30" High Backsplash and
Backsplash Adapter are being installed, the
distance between the bottom of the hood and
the cooktop (DISTANCE X IN FIGURE 4) is
determined by the combined height of the
Backsplash and Backsplash Adapter.
upper chimney cover
lower chimney cover
canopy
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
cabinet base
4 3/8” min
16 1/8” max
21 1/4"
2 5/8”
36”
FIGURE 4 DUCTED INSTALLATIONS
21 9/32”
x
also consult cooktop
manufacturer's recommendation
(vented to the outside)
min & max ceiling height examples
x = 30"
min
7' 10 1/4"
max
8' 10"
x = 28"
min
7' 8 1/4"
max
8' 8"
x = 26"
min
7' 6 1/4"
max
8' 6"
x = 24"
min
7' 4 1/4"
max
8' 4"
