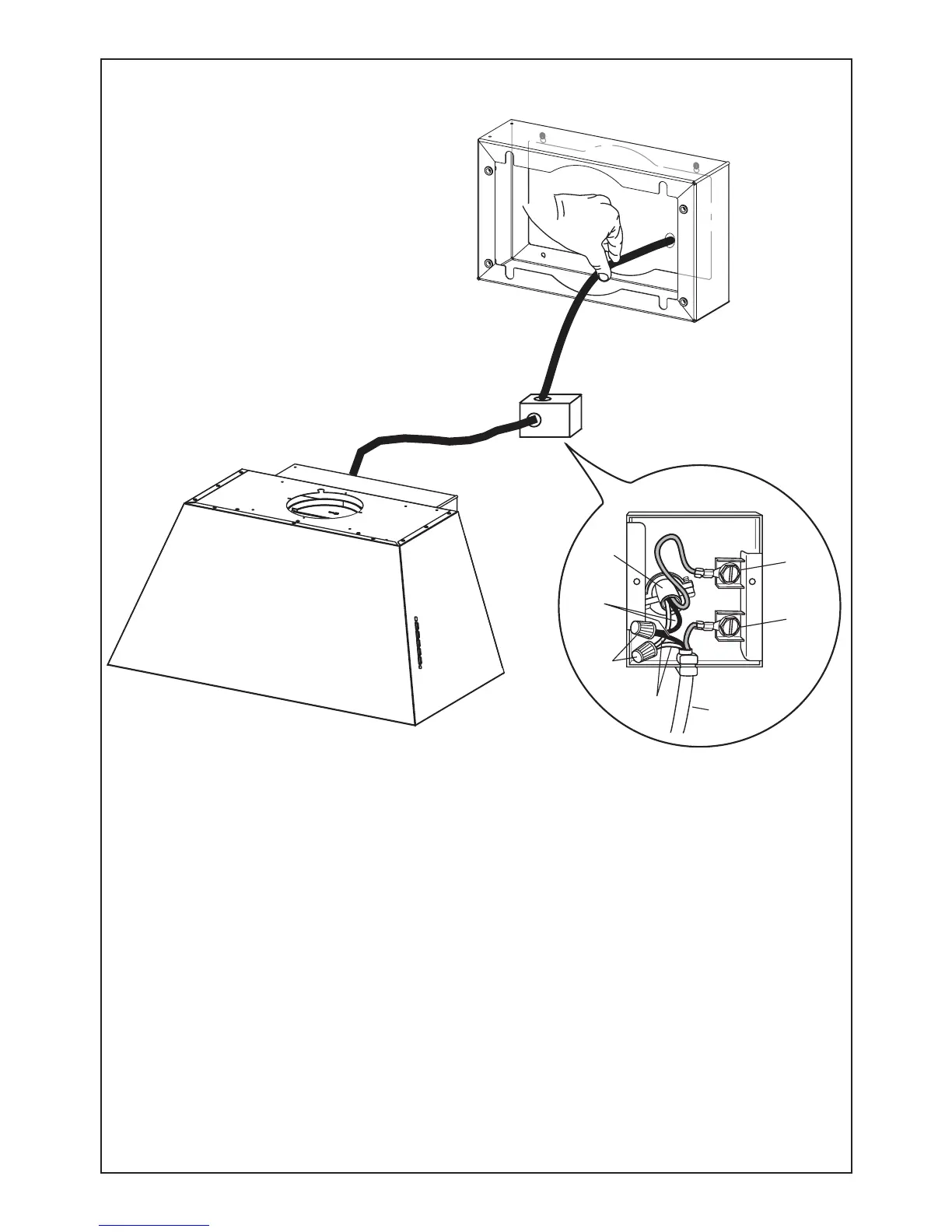

A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D. White wires
E. Green (or bare) ground wire from home power supply connected to green ground screw
F. Range hood power supply cable
G. Green ground wire from Range hood power supply cable connected to green ground screw.
E
A
F
D
C
B
G
Installation of wiring connection
5HPRYHWKHFRYHUIURPWKH¿HOGZLULQJFRPSDUWPHQW
DO NOT turn on the power until installation is complete!
Connect the Power Supply Cable to the rangehood.
Connect the Green (Green and Yellow) ground wire under the Green grounding
screw. Attach the White lead of the power supply to the White lead of the range-
hood with a twist-on type wire connector.
Attach the Black lead of the power supply to the Black lead of the rangehood
with a twist-on type wire connector.
5HSODFHWKH¿HOGZLULQJFRPSDUWPHQWFRYHU
