Faber Chloe - Page 15

15
15
16

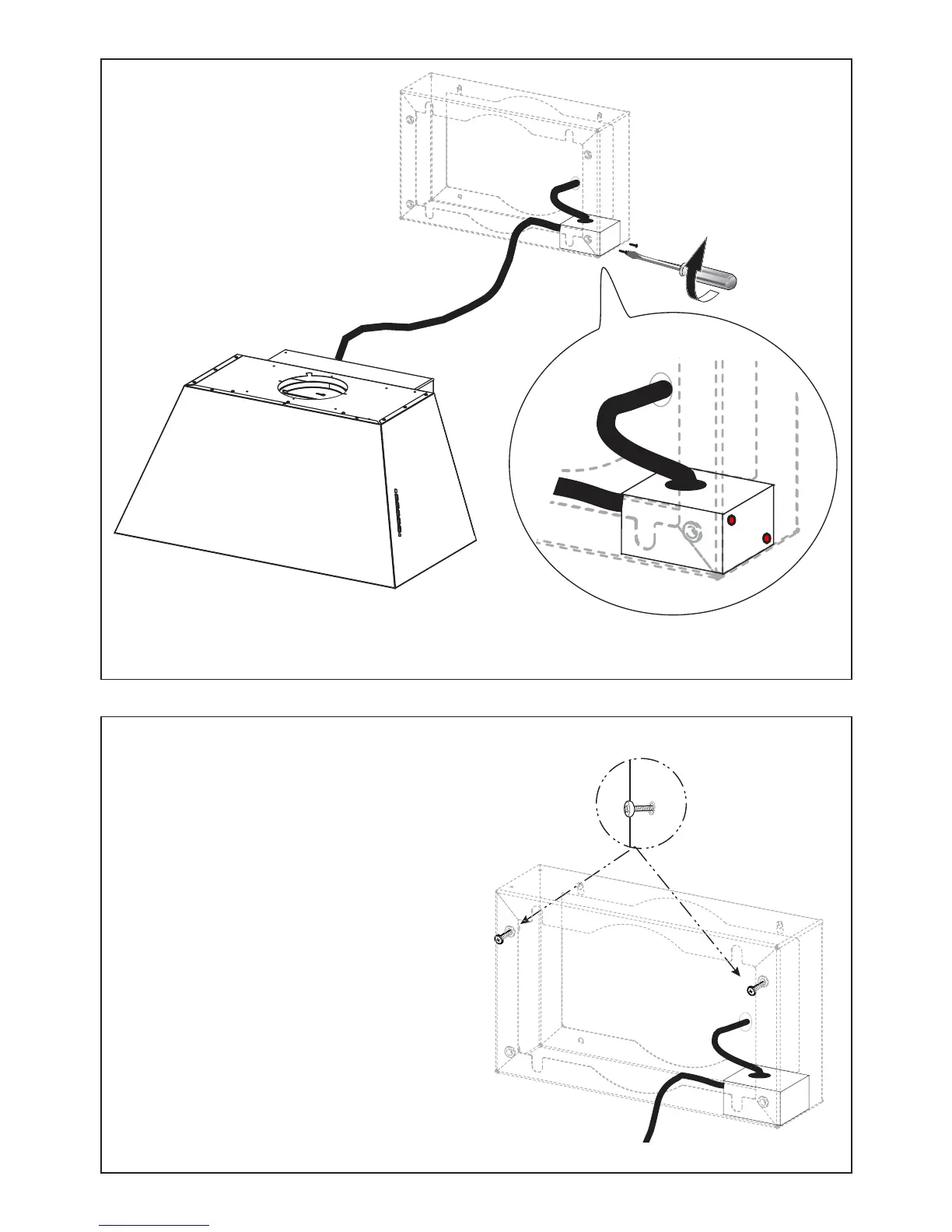

Secure the Wiring Box as shown
in the image with the 2 Screws
(12b).
12b
Attention: After the Wiring Box installation, place the Cable inside a Rear Section without stressing for
the Cable.
12a
Screw the two 12a screws into
the Rear Section with the heads
exposed by 1/4".
