24

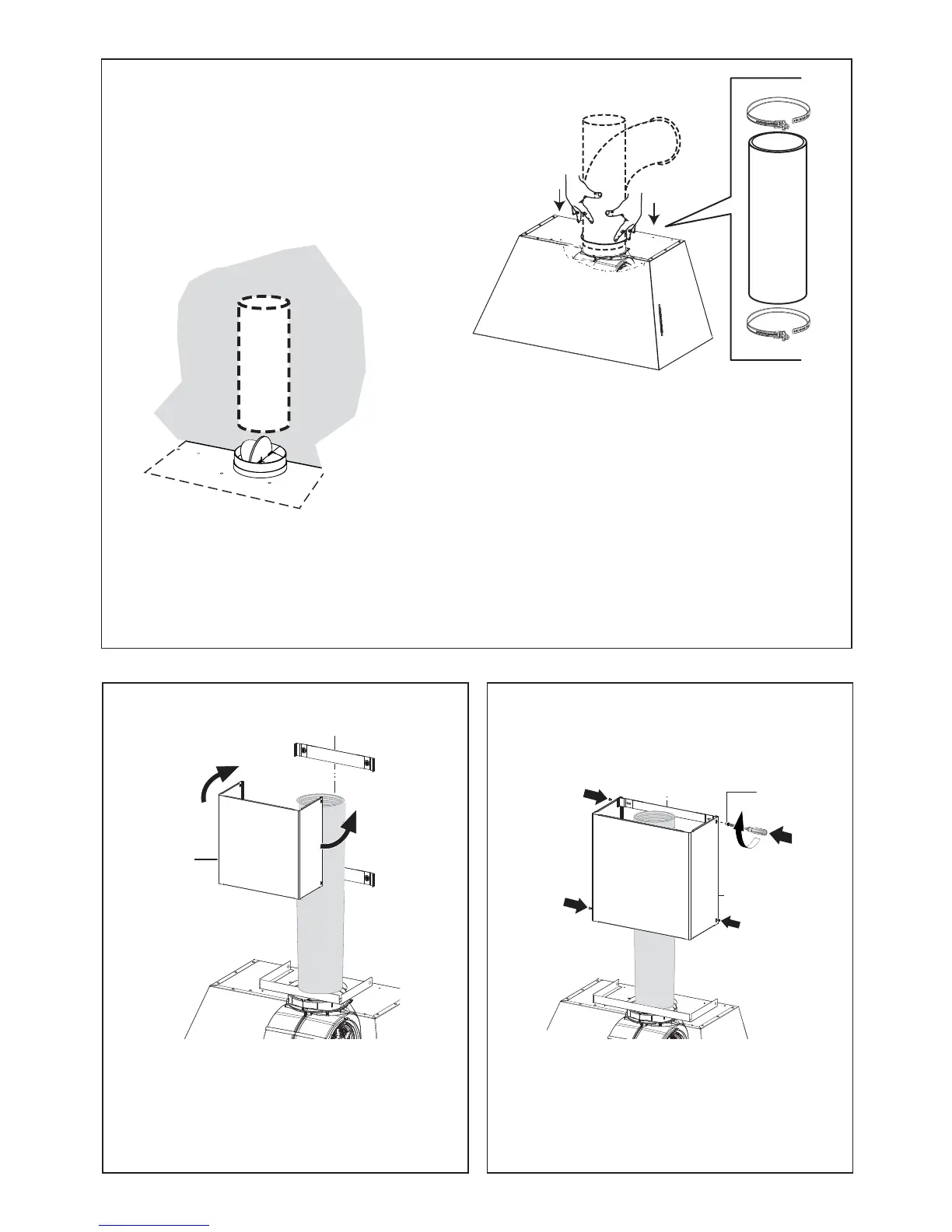

Install Roof or Wall Cap purchased separately. Connect the 6" metal ductwork to the Roof or Wall Cap and
then attach ductwork.
N1
10
B
11
N1
M1
4x
B
Slightly widen the two sides of the upper
chimney and hook them behind the brackets,
making sure that they are well seated.
Secure the sides to the brackets by using the 4
screws .
15 16
14
