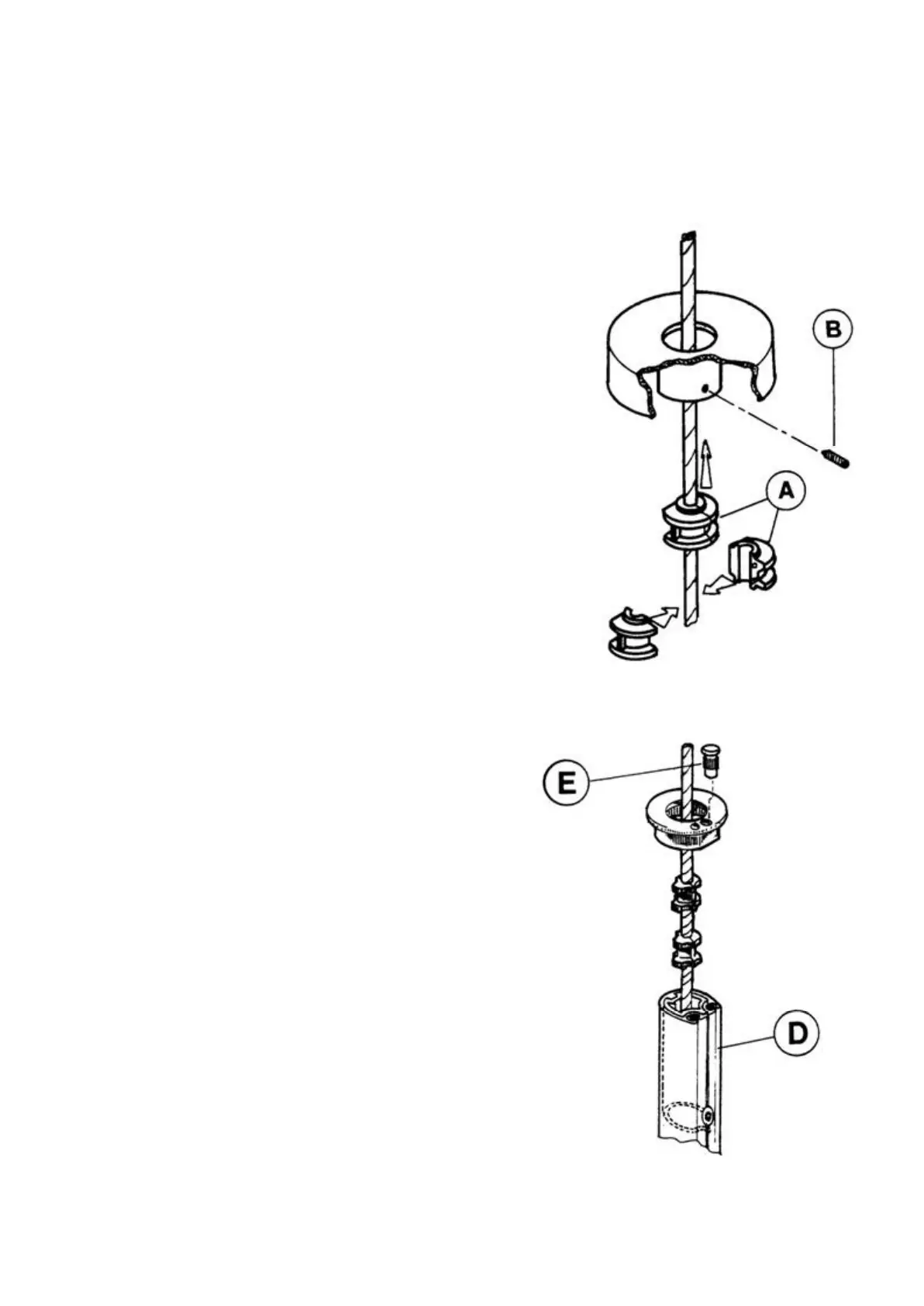

II. FITTING THE HALYARD DEFLECTOR WHEEL
1. pass the terminal of the forestay through the halyard
deflector wheel and fit the 2 bearings (Rep. A) onto the
wire with their flat side opposite to the screw (Rep. B) as
shown.
2. push up both bearings into the deflector wheel and secure
with the screw (Rep. B).
III. FITTING THE TOP CAP
To fix the cap to the top section, tap the pin (Rep. E)
with a soft head hammer.
