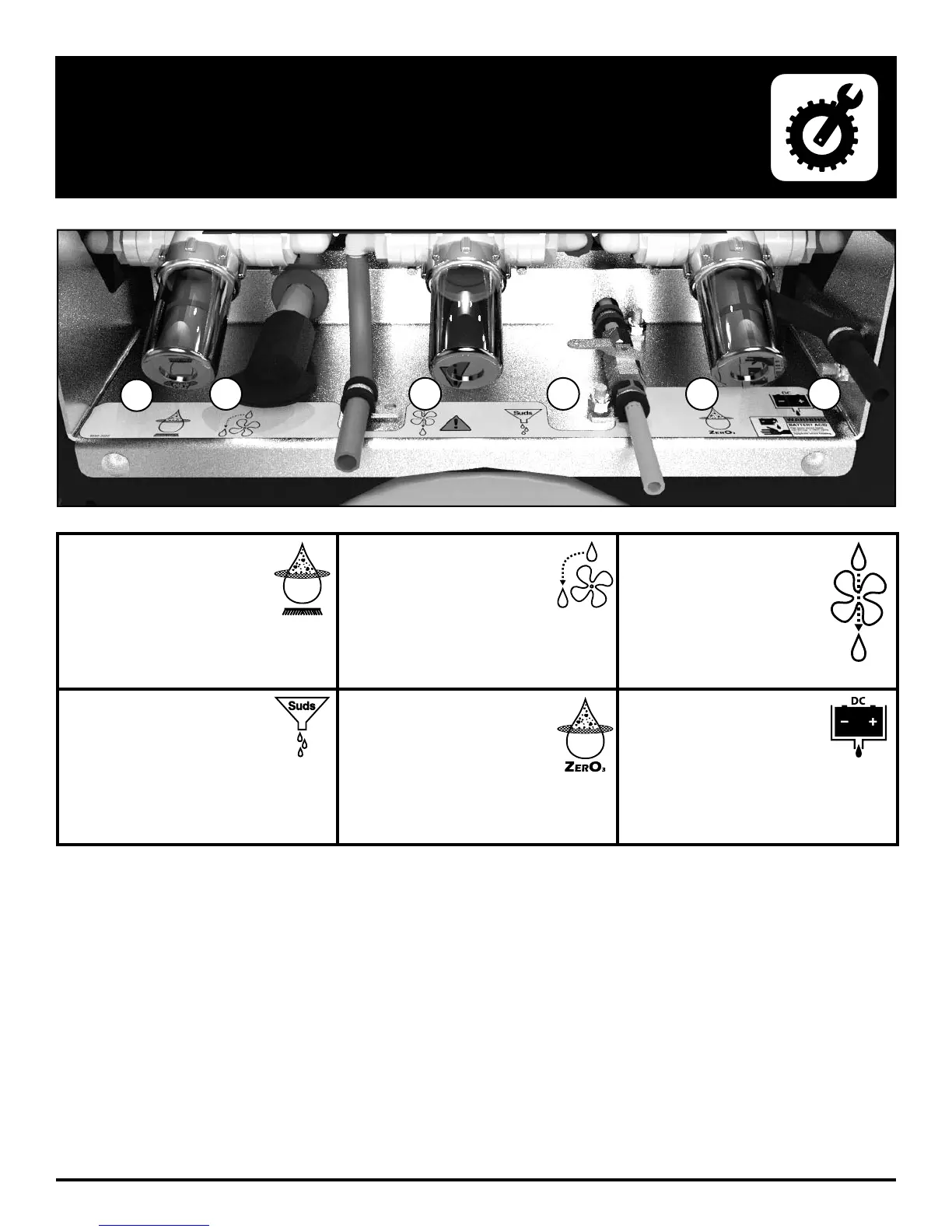

SERVICE CABINET
19
20 21 22 23
24
19. SOLUTION FILTER:
Standard Solution Feed Filter
for scrubdeck.
20. VAC BOX UNLOADER:
Unloader valve for the Yellow
Vac Box. Water present in the
Yellow Vac Box will drain when
vacuum is off.
21. VACUUM
DISCHARGE:
Water passed through the
Vacuum Motor will be visible
in the reservoir and excess
will fl ow from the blue hose.
Indicates service required.
22. SUDS DRAIN:
Drain detergent from Suds
reservoir.
23. ZERO3 FILTER:
Optional ZERO3 (O3+) Ozone
System Solution Filter.
24. BATTERY DRAIN:
Drain any fl uid from Poly
Battery Box.
