fadini Bart 350 - SAFETY EDGES; Safety edge input in Opening; Safety edge input in Closing

English
- 31 -
Safety edge
input
in Opening
Safety edge
input
in Closing
Common
Common

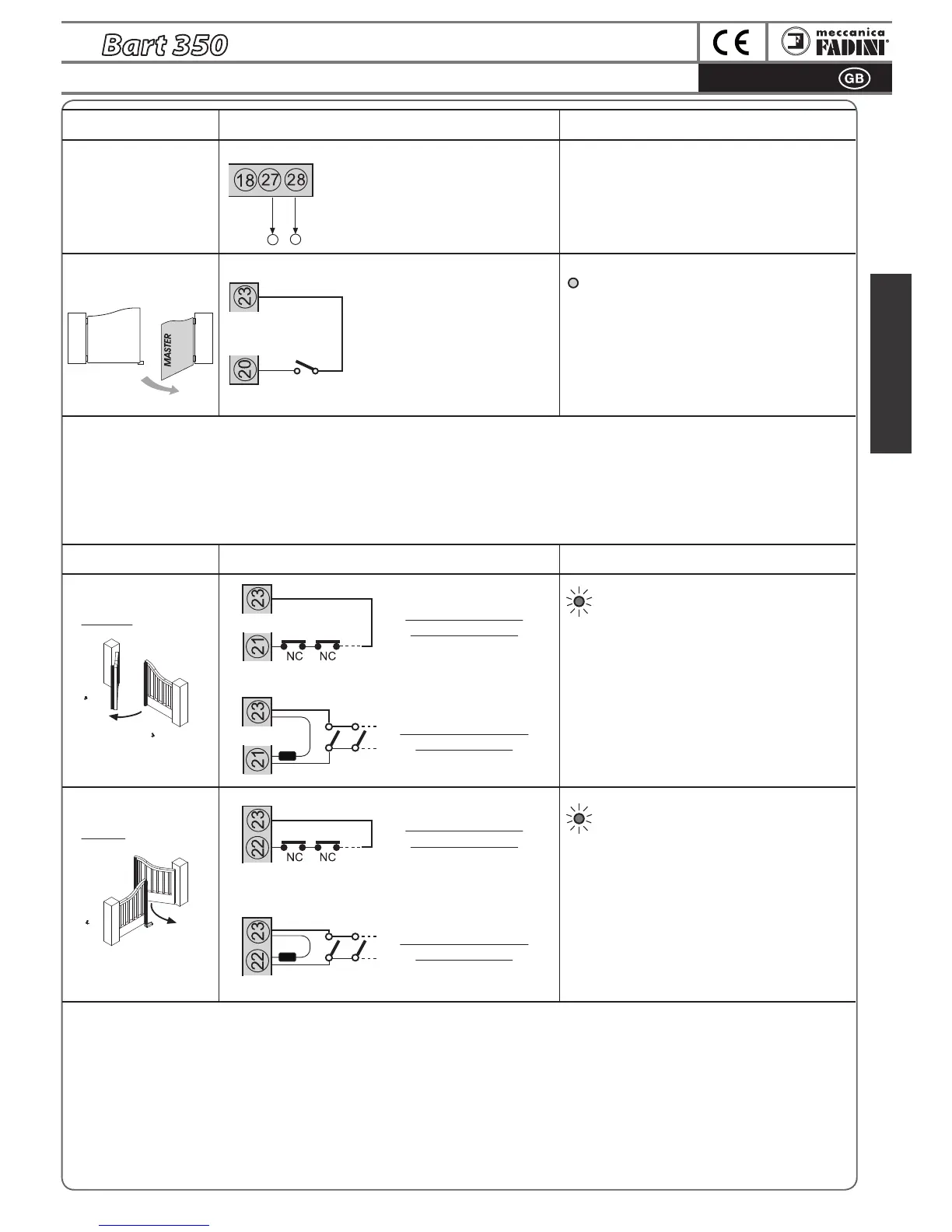

SAFETY EDGES
There are two separated inputs dedicated to safety edge control, one for opening and one for closing respectively. Identication by Elpro 35M board occurs
during the programming phase.
Thanks to a dedicated micro-controller circuit, separately tted on to the board, the actual integrity and correct functioning of the safety system is constantly
controlled. Any possible fault or loss of eciency is signalled by L21 and L22 LEDs ashing.
In case any of the safety edges detects an obstacle, gate travel is reversed for a bit so that obstacle can get loose.
In series if safety edges
are mechanical, N.C.
In parallel if safety edges
are resistive 8,2 kΩ
8,2 kΩ
8,2 kΩ
Common
Common
In series if safety edges
are mechanical, N.C.
In parallel if safety edges
are resistive 8,2 kΩ
L21
L22
ELECTRICAL CONNECTIONS to the TERMINALS and THEIR FUNCTIONS
Instructions
Accessory Electrical connections
Dip-switches and LED indication
of their functions
Accessory Electrical connections
Dip-switches and LED indication
of their functions
Common
Pedestrian
Output for courtesy
lamp relay 24V 50mA
Pedestrian opening
on Bart 350 Master
NO input for external contact
for pedestrian opening on the
Bart 350 Master gate
Output for courtesy lamp relay
max 24V 50mA
L20 red O= lights up at every pedestrian
opening pulse
Normally alight:
whenever the safety edge is engaged,
the LED goes o.
Normally alight:
whenever the safety edge is engaged,
the LED goes o.
