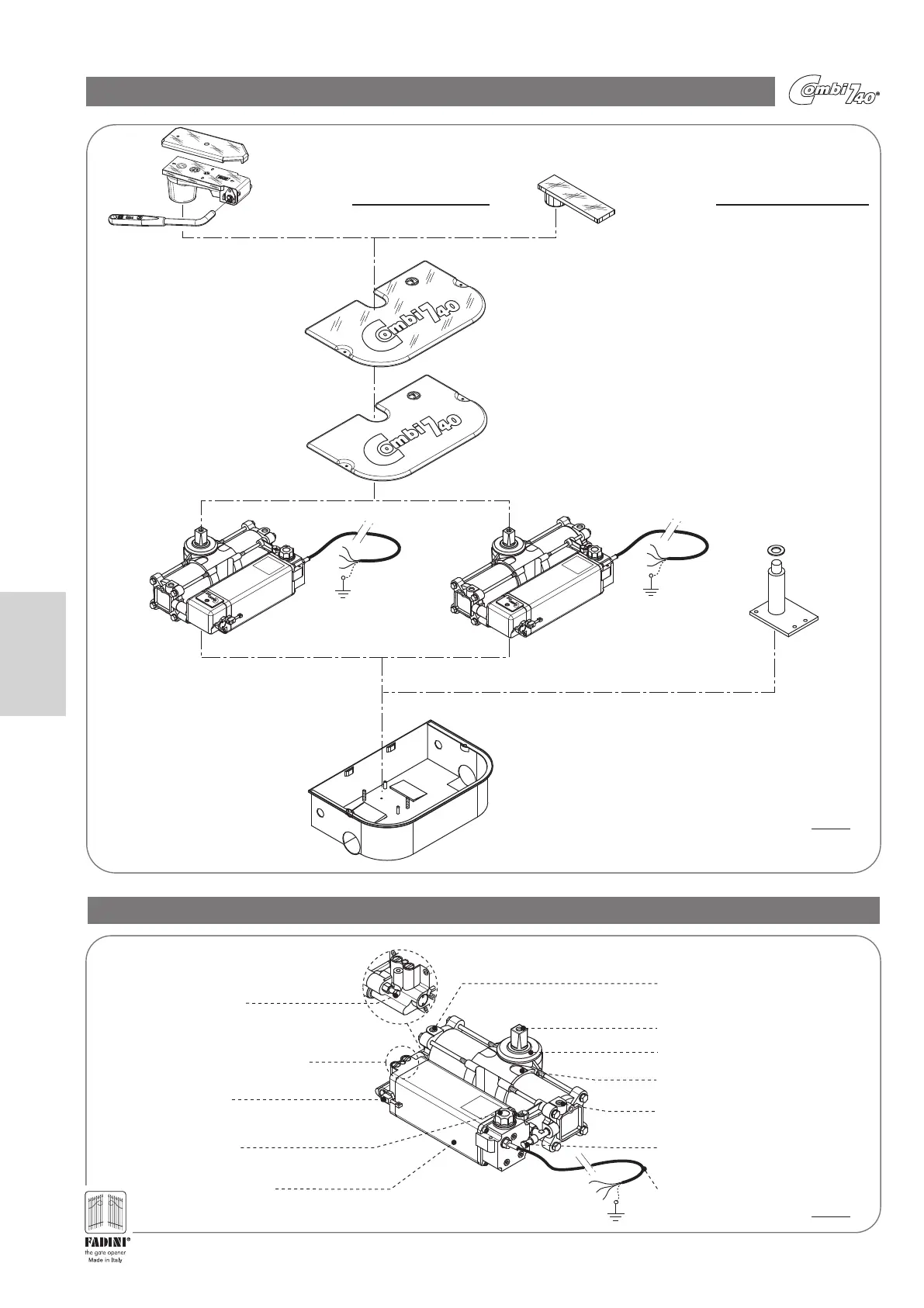

MAIN COMPONENTS OF THE BELOW GROUND OIL-HYDRAULIC GATE OPENER
DESCRIPTION OF JACK / MOTOR PUMP COMPONENTS
Motor pump oil reservoir
Maximum and minimum pressure valves
in both shaft rotation directions
Oil reservoir plug
Hydraulic jack
release lever
Hydraulic jack
Braking adjustment
(Braking version)
Rotation shaft
Combi
Right or Left Indication
Braking adjustment
(Braking version)
Electric power 4x1mm
2
cable 230V
length 2.50 meters
Flow regulator
(version with Flow
Regulator)
Flow regulator
(version with Flow
Regulator)
Sx
Enclosure
(zinc-coated or stainless steel)
Combi 740 175°
Stainless steel cover (Optional)
Aluminium enclosure
cover
Gate spacer
hinge
1790
1790
Emergency manual release with
square ferrule, release key and
welding plate
(for hydraulic jacks
with hydraulic locking device)
Plate with square ferrule
(for hydraulic jacks without hydraulic locking device)
Combi 740 110°
