8
211816 17 19 20 2422 23 25
-
+
CLOSING LEAF DELAY TIME
0s - 18s
-
+
DWELL TIME (If Dip-Switch 3=ON)
0s - 120s
-
+
OPERATING TIME
2s - 100s
Having terminated the electrical connections of the Motors, the three timers must be adjusted:
Leaf delay on closing, Dwell Time and Operating Time
MOTOR M1 OUTPUT
230V SINGLE-PHASE
(Motor for opening 1st leaf
and Pedestrian)
MOTOR M2 OUTPUT
230V SINGLE-PHASE
COMMON
21
M1 M2
18
16
17
19
20
COMMON
4
ON: Pre-ashing
OFF: Without pre-ashing
22 23
FLASHING LIGHT
230V 25W max
24 25
POWER SUPPLY INPUT
SINGLE-PHASE 230 V 50Hz
10%
Apply a high sensitivity dierential Thermo magnet switch type 0.03A to the
programmer’s power supply.
The card requires a 230V 50Hz
10% single-phase power
supply once all the low voltage and
power connections have been completed.
Pedestrian opening of a completely closed gate leaf is obtained giving an Open command, with
Dip-Switch no. 6=ON, to terminals 3-4:
- a rst opening command opens the Motor 1 leaf
- with a second command to terminals 3 and 4, the second leaf also opens.
The transmitter is always enabled for both leaves with Radio Contact 7-8.
The function "Pedestrian Opening" is not in service during the rst operation cycle,
after a power failure.
3
ON = Closes in Automatic mode
OFF = Does not close in Automatic mode
Semi-automatic function
Automatic cycle: when an open pulse is given, the leaves open, they stop in dwell for the time
set on the timer, after which they close automatically.
Semi-automatic cycle: when an open pulse is given, the leaves open. To close the leaves, give
the close pulse.
230 VOLT
-
+
DWELL TIME
0s - 120s
6
ON= Single-leaf pedestrian service
OFF= Normal service
M1
Pre-ashing Dip-Switch 4=ON: Once the control pulse has been given the
ashing light switches on and the operator starts 3 seconds later.
8
ON: Eliminates the Leaf delay when opening.
The motors start together
OFF: Leaf delay when opening enabled
3
ON = Closes in Automatic mode
OFF =Does not close in Automatic mode
Semi-automatic function
7
ON: Stroke reversing pulse function enabled
when opening from closed gate
OFF: Stroke reversing pulse deactivated
Function (Dip-Switch no. 7=ON) t
is completely closed, even in Pedestrian Opening mode: with the gate leaves closed, before
opening they are pushed to close for 2 seconds.
Dip-Switch no.5=ON At each pulse on the radio contact the gate performs open-stop-close-stop
5
ON: Step-by-step function enabled
OFF: Step-by-step function deactivated
3
ON = Closes in Automatic mode
OFF = Does not close in Automatic mode
Semi-automatic function
43
COMMON
COMMON
OPEN
NO
External clock
CLOCK: The Elpro 13 exp Programmer makes it possible to connect a normal clock for opening-closing
Wiring: connect in parallel the NO contact of the Clock with terminal no. 4 OPEN and no. 3 COMMON, activating automatic re-closing
with the Dip-Switch no. 3=ON and setting the dwell time on the trimmer
Operation: programme the opening time on the clock, at the time set the gate will open and remain open (the ashing light switches
o and the indicator light gives the signal with two quick ashes followed by a longer dwell) and will not accept any further command
(including radio commands) until the time set on the clock has elapsed, at the end of which, following the dwell time, automatic
reclosure will take place.
-
+
DWELL TIME
0s - 120s
exp
13
GB

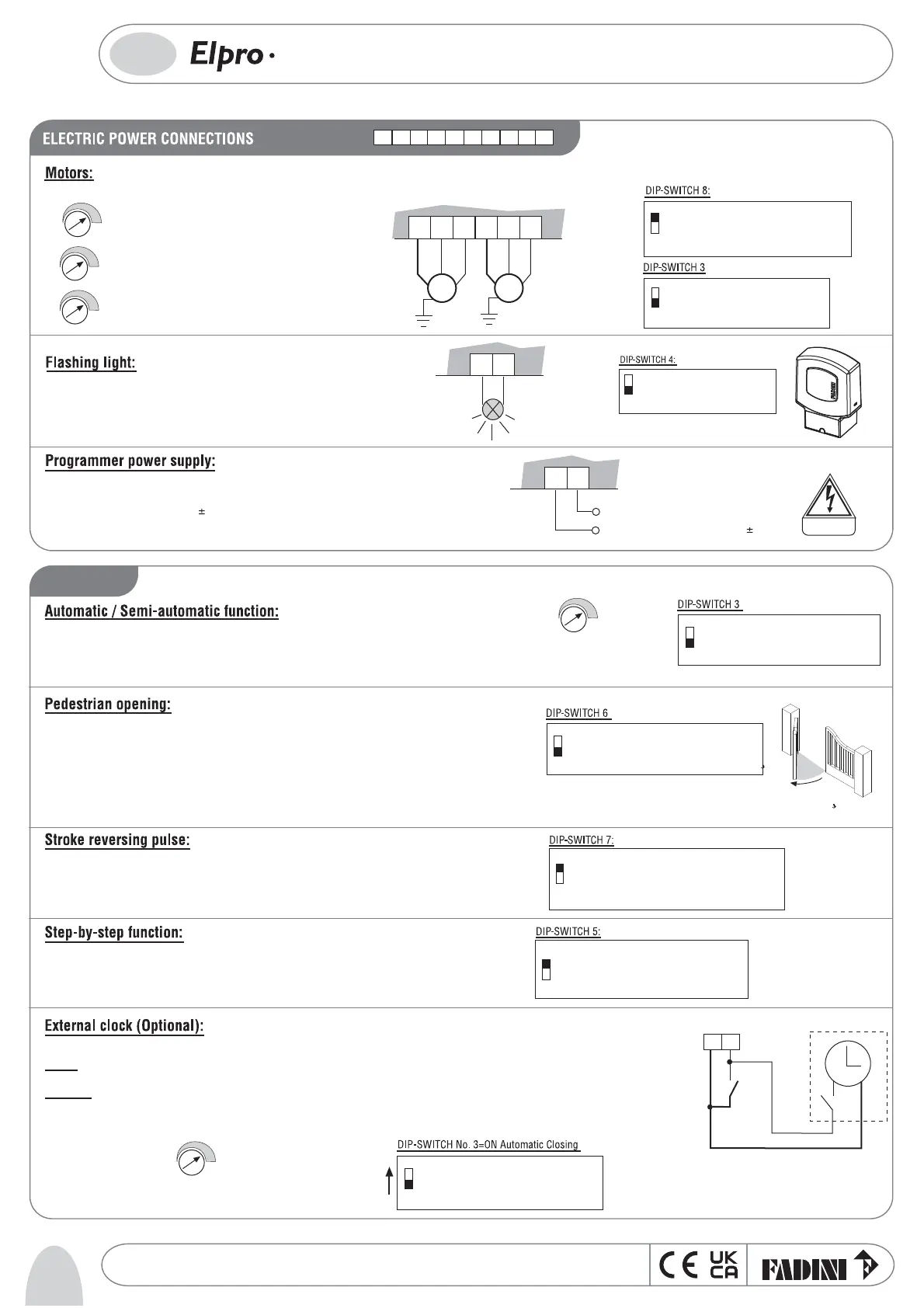

230V SINGLE-PHASE PROGRAMMER FOR SWING GATE OPERATORS
1643
Drwg. No.
Function (Dip-Switch no. 7=ON)that facilitates disengagement of the electric lock when the gate
is completely closed, even in Pedestrian Opening mode: with the gate leaves closed, before
opening they are pushed to close for 2 seconds.
8
