fadini Elpro 9 Plus - Electric Power Connections and Functions; Single-phase Motor Connections; Flashing Lamp and Voltage Supply; Automatic and Semi-automatic Modes

FOR SWINGING GATES
PLUS
9
GB
7
Pedestrian Partial Opening:
3
DIP-SWITCH 3
ON= Automatic Closing
OFF= No Automatic Closing
Semi-automatic Mode
Automatic/ Semi-automatic:
Automatic Mode: On pulsing to Open, the gate starts opening, stops to dwell as pre-set on T2 trimmer,
on expiring of the pre-set time it starts closing automatically
Semi-automatic Mode: On pulsing to Open, the gate starts opening and stays open. A pulse to Close is
needed to close the gate
How it works: Set the clock to the required Open time. On the pre-set time the gate is automatically operated to open
and stays open. No other commands are accepted (not even by remote control) until the time pre-set on the clock is
expired. On expiring of the pre-set time, after the Dwell Time, the gate is automatically operated to close
Dip-Switch N°3=ON.
It is operated by giving an Open command superior to 6 seconds to terminals 3 and 4.
Time Clock
Installation :
43
COMMON
COMMON
OPEN
N.O.
DIP-SWITCH N°3=ON Automatic Closing
3
ON= Automatic Closing
OFF= No Automatic Closing
Semi-automatic Mode
Dwell Time
from 5 to 128s
T2
-
+
Stroke Reversing Pulse on Opening:
Before the gate starts opening, it is first pushed to Close
direction for 3 seconds,a fixed time, to help the electric
lock to disengage.T4 trimmer to the lowest
With the gate in closed position, it is possible to open the gate partially
by giving a pulse to terminals 3 and 4 for 2 to 6 seconds max:
- a first pulse to Open operates M1 motor to open
- a second pulse to Open operates the other gate (M2 motor)
-
+
WITH T4 TO THE LOWEST THE TIME OF THE STROKE
REVERSING PULSE IS 3s AND THAT OF THE
ELECTRIC LOCK IS 4s
Single-phase Motors (230V):
21
19 20
COMMON
M2
Gate Delay
Open
Gate Delay
Close
18
16 17
COMMON
M1
DIP-SWITCH N°8
8
ON: A pulse is given
every two hours
OFF: Two hours Pulsing
Out of Service
-
+
+
-
DWELL TIME
max 128s
T2
-
+
MOTOR RUN TIME
max 64s
T1
Flashing Lamp:
22
23
230V MAX 25W
4
ON: Pre-flashing
OFF: No pre-flashing
DIP-SWITCH 4:
230V
±10% 50Hz
SINGLE-PHASE VOLTAGE SUPPLY
Voltage Supply:
24
NEUTRAL
25
LIVE
With gate in closed position,it
is possible to pulse gate to
close every two hours
6
ON: Lamp is Out of Service on Dwell
Time on Automatic Mode
OFF: Lamp flashes on Dwell
Time on Automatic Mode
DIP-SWITCH 6:
T3 GATE DELAY TIME:
0-3s= same Delay Time on Opening and Closing
longer than 3s= Delay Time is fixed 3 s on Opening
it varies from 3 to 12 s on Closing
Courtesy Light:
Connect a 24VAC Modular Relay to operate a Courtesy Light
Trimmer T4 from straight centre position to max. setting
position: time can be adjusted from 128s to 3s
9
10
-
+
4192
Drwg. No.
External Time Clock
®
FUNCTIONS

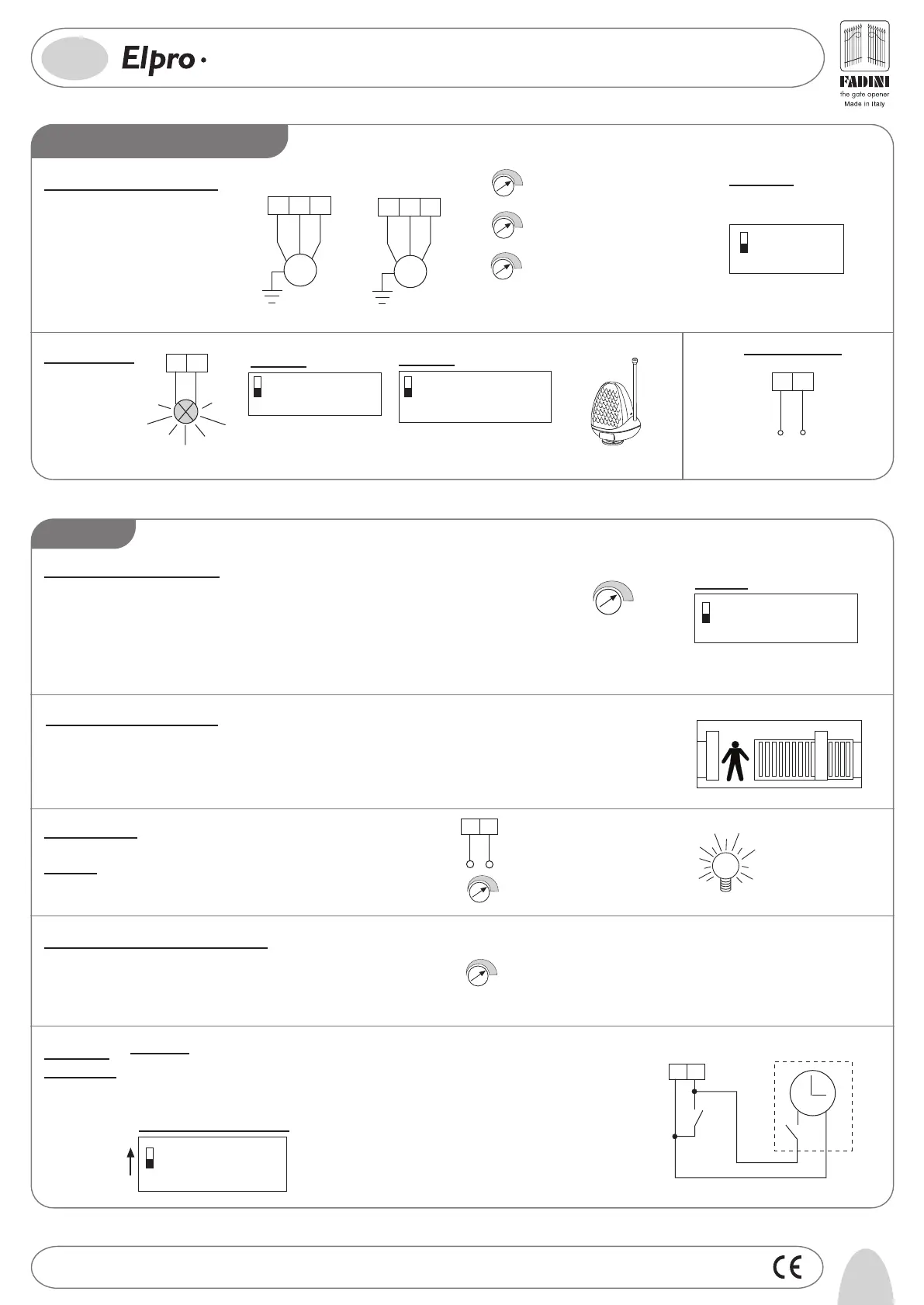

ELECTRIC POWER CONNECTIONS
FADINI
l'apricancello
