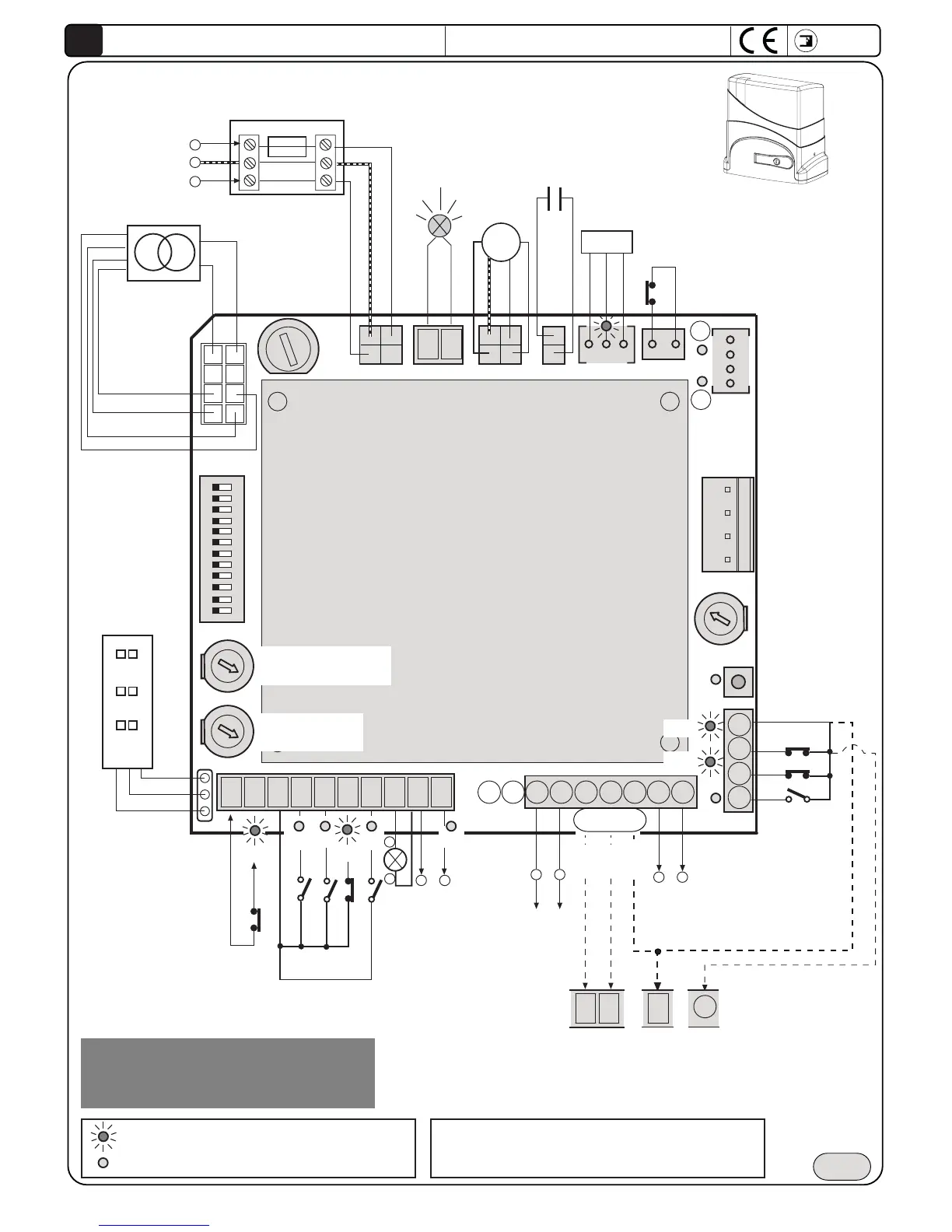

fadini Junior 633 - Elpro 63 Control Board; PCB Layout and Connections (Fig. 17)

16
45 3
pag 17
Junior 633 - Junior 650
meccanica
FADINI
Elpro 63
GB
PLEASE NOTE. The LEDs shown here
are in their normal operational status
for correct ELPRO 62 PCB
LED ON
LED OFF
Fig. 17
NOTE: all of the possible connections at the programmer
terminal boards are also illustrated in the respective instruction
sheets for each individual accessory.
12345678910 13 14 18 19
NC
15 16 1711 12
20 21 22 23
-
+
Trimmer
Force
Pulse of
programming
STOP
COMON
OPEN
CLOSE
NC
photocell
coast
RADIO CONTAC
Light 24V - 1W
+
-
OUTPUT
230V-25W for
flasher
-
+
Relay Output
courtesy lamp
max
24V 50mA
LP
NC
Unlock handle
switch
L20
L2
L4 L5
L6
L7
L10
Condenser
12,5µF
230V
Transformer
F1= 630mA
Transformer
Radio
contact
LED card
cover
Elpro 63
for Junior 633
and Junior 650
230V
5A
Terminal with
fuse
Output for 2°
sliding leaf
OPEN
CLOSE
Common
123456789101112
clutch limit
switch
Y
X
0V
12V
24V
20V
24 25
COMMON
Junior 633 - 0,33CV
Junior 650 - 0,5CV
-
+
Trimmer Pause
da 1s - 120s
-
+
Dip-Switch
Encoder
M
commo
n
NC
Pedestrian
L22
L21
Elpro 63 SLAVE terminal for
2° sliding
Dip- Switch 12= ON
AP
CH
C
Auxiliary
for 2° Junior
Trimmer Pedestrian
max 3m
External Electrical
power supply 230V
50Hz ±10%
for superior distances
the 50m to increase
the section wires
Output 24V cc/ca for
photocell TX set up for
DSA control
-
+
24V OUTPUT for max load 500mA:
n°2 pairs of photocelles
n°1 Radio receiver
n°1 Led selector Chis 37 and Chis E37
ATTENTION: USING ACCESSORIES THAT
ARE NOT FADINI MAY RESULT INTO
DAMAGES TO THE BOARD: ALWAYS USE
CLEAN CONTACTS FOR THE NO-NC INPUTS
