V0612 - 20i-T / 30i-T - Installation/Operation - DRO operation - (13/32)

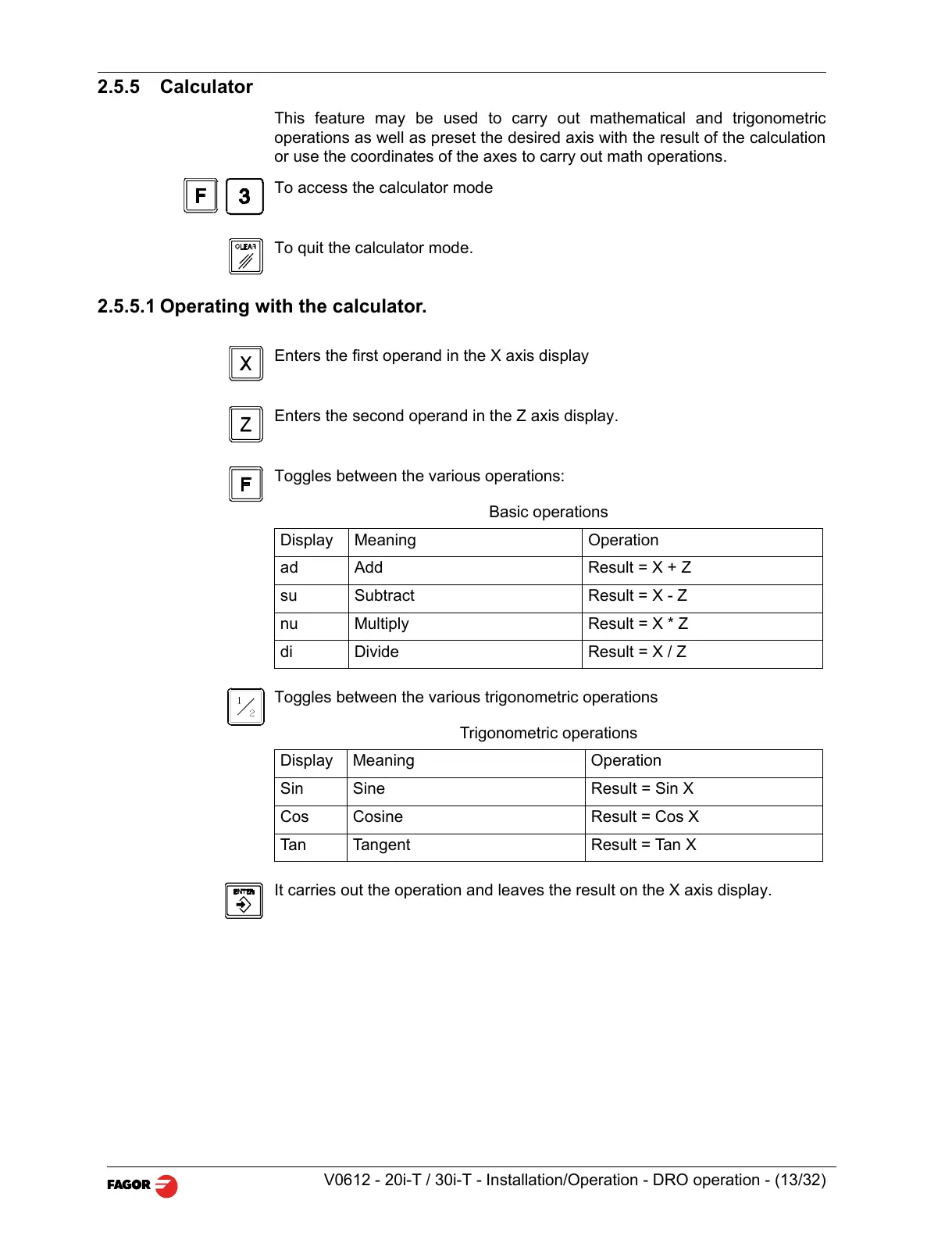

2.5.5 Calculator
This feature may be used to carry out mathematical and trigonometric
operations as well as preset the desired axis with the result of the calculation
or use the coordinates of the axes to carry out math operations.
To access the calculator mode
To quit the calculator mode.
2.5.5.1 Operating with the calculator.
Enters the first operand in the X axis display
Enters the second operand in the Z axis display.
Toggles between the various operations:
Toggles between the various trigonometric operations
It carries out the operation and leaves the result on the X axis display.
Basic operations
Display Meaning Operation
ad Add Result = X + Z
su Subtract Result = X - Z
nu Multiply Result = X * Z
di Divide Result = X / Z
Trigonometric operations
Display Meaning Operation
Sin Sine Result = Sin X
Cos Cosine Result = Cos X
Tan Tangent Result = Tan X
