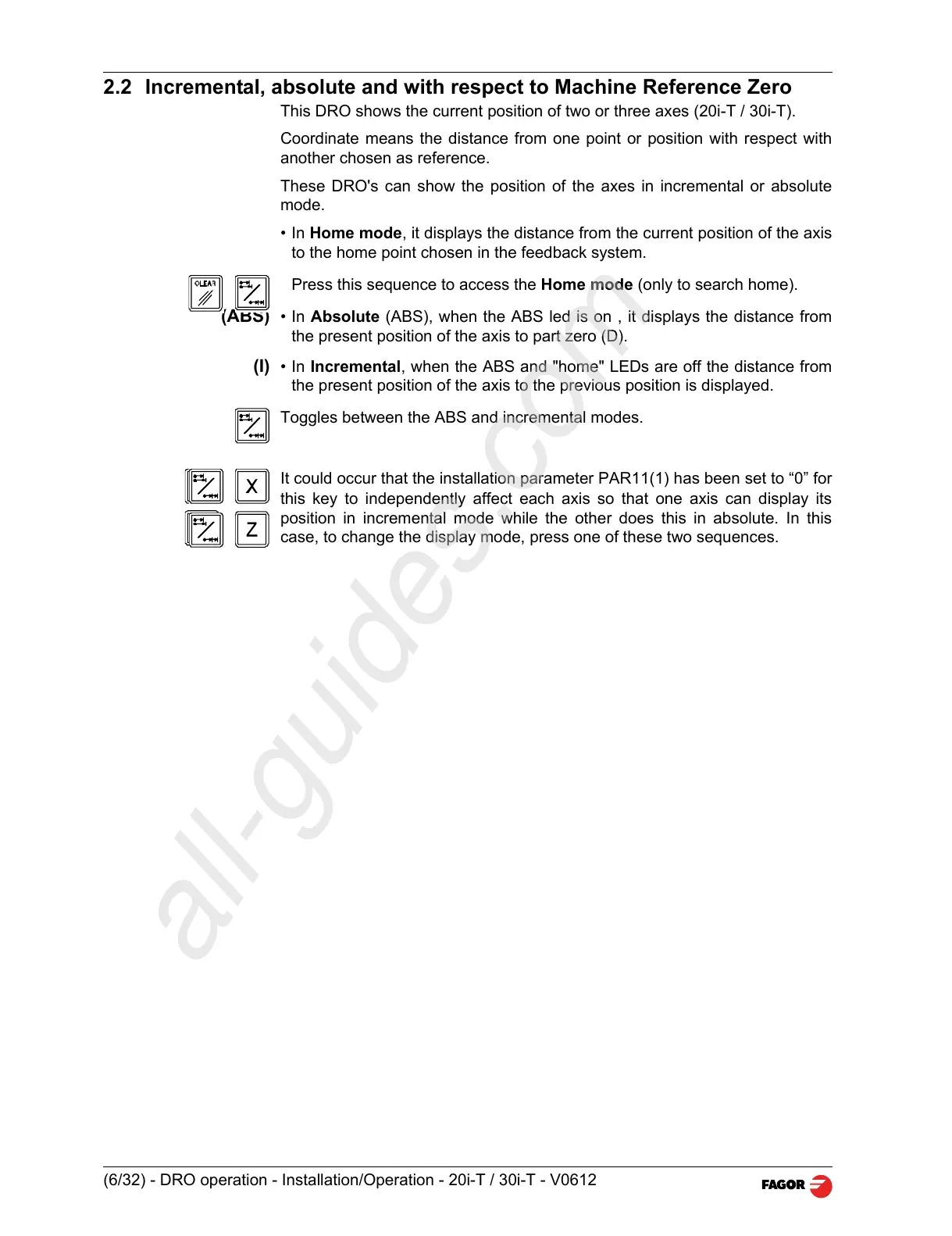

2.2 Incremental, absolute and with respect to Machine Reference Zero
This DRO shows the current position of two or three axes (20i-T / 30i-T).
Coordinate means the distance from one point or position with respect with
another chosen as reference.
These DRO's can show the position of the axes in incremental or absolute
mode.
•In Home mode, it displays the distance from the current position of the axis
to the home point chosen in the feedback system.
Press this sequence to access the Home mode (only to search home).
(ABS) •In Absolute (ABS), when the ABS led is on , it displays the distance from
the present position of the axis to part zero (D).
(I) •In Incremental, when the ABS and "home" LEDs are off the distance from
the present position of the axis to the previous position is displayed.
Toggles between the ABS and incremental modes.
It could occur that the installation parameter PAR11(1) has been set to “0” for
this key to independently affect each axis so that one axis can display its
position in incremental mode while the other does this in absolute. In this
case, to change the display mode, press one of these two sequences.
