4 8025/8030 CNC OPERATING MANUAL

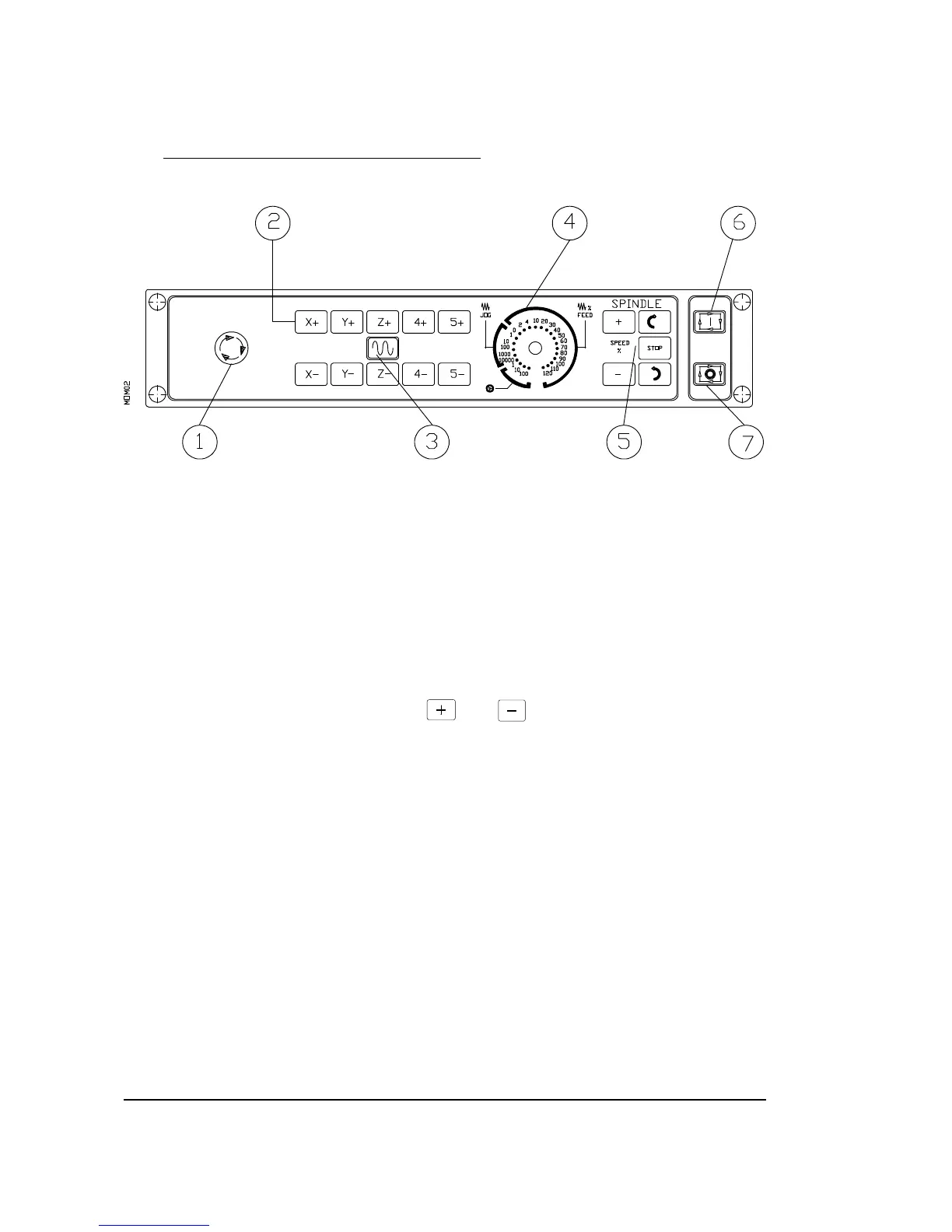

2.2. CONTROL PANEL FOR THE 8030 CNC
1. Emergency Button or Electronic Handwheel (optional)
2. JOG keys for manual displacement of the axes.
3. RAPID FEED button.
4. Switch (M.F.O.), which allows a % variation of the programmed feedrate and to choose
the different ways of working in the JOG MODE (continuous, incremental, electronic
handwheel).
5. Spindle operating keys. Allow the spindle to be put into OPERATION and to STOP
it, in the JOG operating mode. The and keys allow a % variation of the
programmed turning speed of the spindle during operation.
6. START. Cycle START key.
7. STOP. Cycle STOP key.
