Fagor BCSD-15AEG-EC - Connection between BCSD-EC 2-Axis Drive

Installation manual
Beta series EtherCAT Servo Drives | Ref.2107 BCSD EtherCAT - 21|52

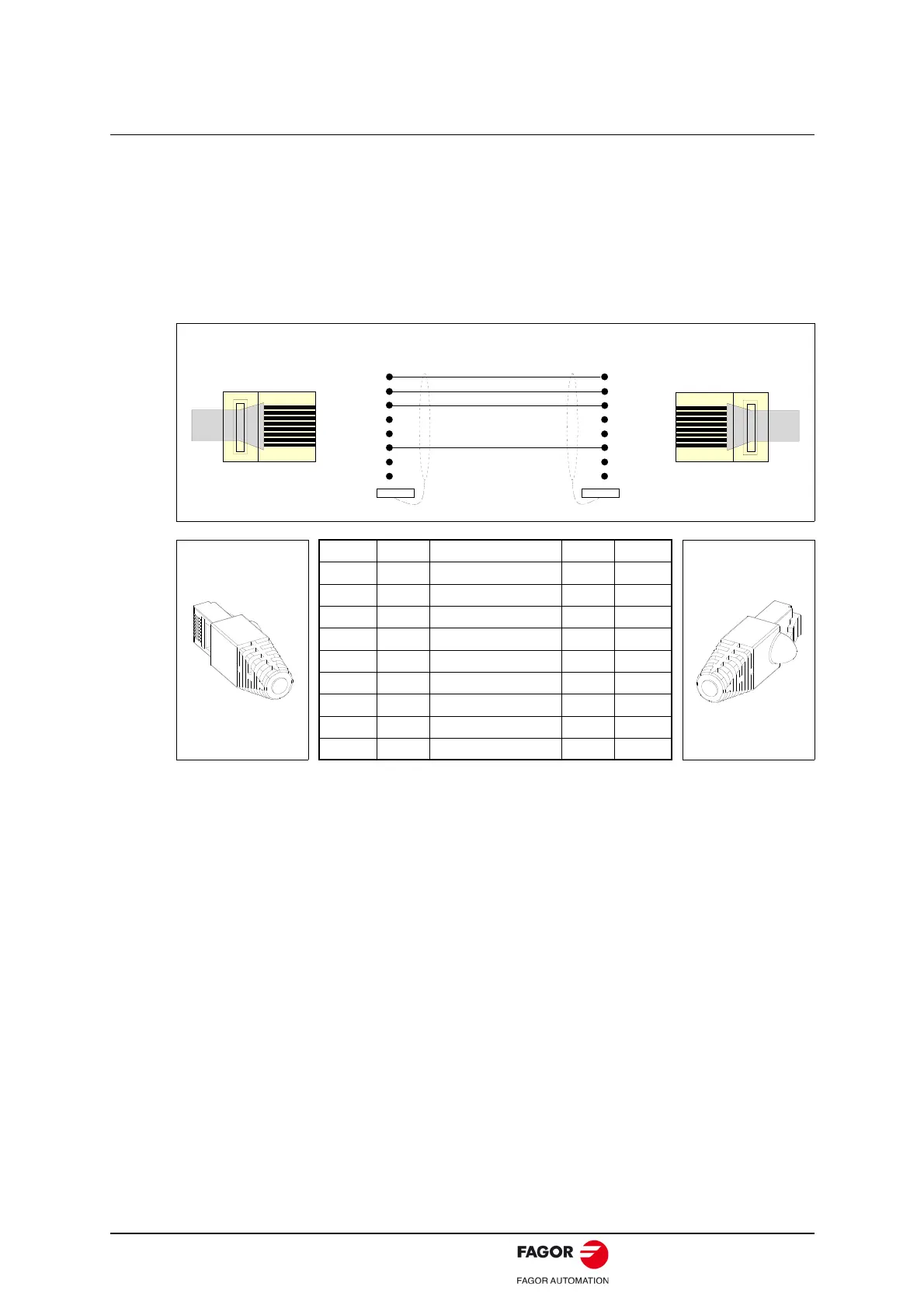

3.2. Connection between BCSD-EC 2-Axis Drive
Cable name: BSC-EC-0.3
Cable between BCSD-EC axis drive · CN4 connector · and BCSD-EC axis drive · CN3
connector ·.
Length: 300 mm.
Pinout
2x RJ-45 connectors.
Characteristics
Type: Shielded. Twisted pairs (1x2x0.22 mm
2
).
Flexibility: Superflexible.
Minimum static bending radius of 50 mm and a dynamic radius of 95 mm.
Cover: PUR.
Impedance: Cat. 5. 100/120 .
PIN SIGNAL DESCRIPTION SIGNAL PIN
1 TD + Transmission Data + TD + 1
2 TD - Transmission Data - TD - 2
3 RD + Receiver Data + RD + 3
4
- - - 4
5
- - - 5
6 RD - Receiver Data - RD - 6
7
- - - 7
8
--- 8
Housing Shield Screening Shield Housing
S H
I E L D
1
2
3
4
5
1
2
3
4
5
P i n P i n
6
7
8
B C S D - E C · C N 3 ·
6
7
8
T D +
T D -
H O U S I N G
H O U S I N G
S H
I E L D
R D +
R D -
T D +
T D -
R D +
R D -
B C S D - E C · C N 4 ·
