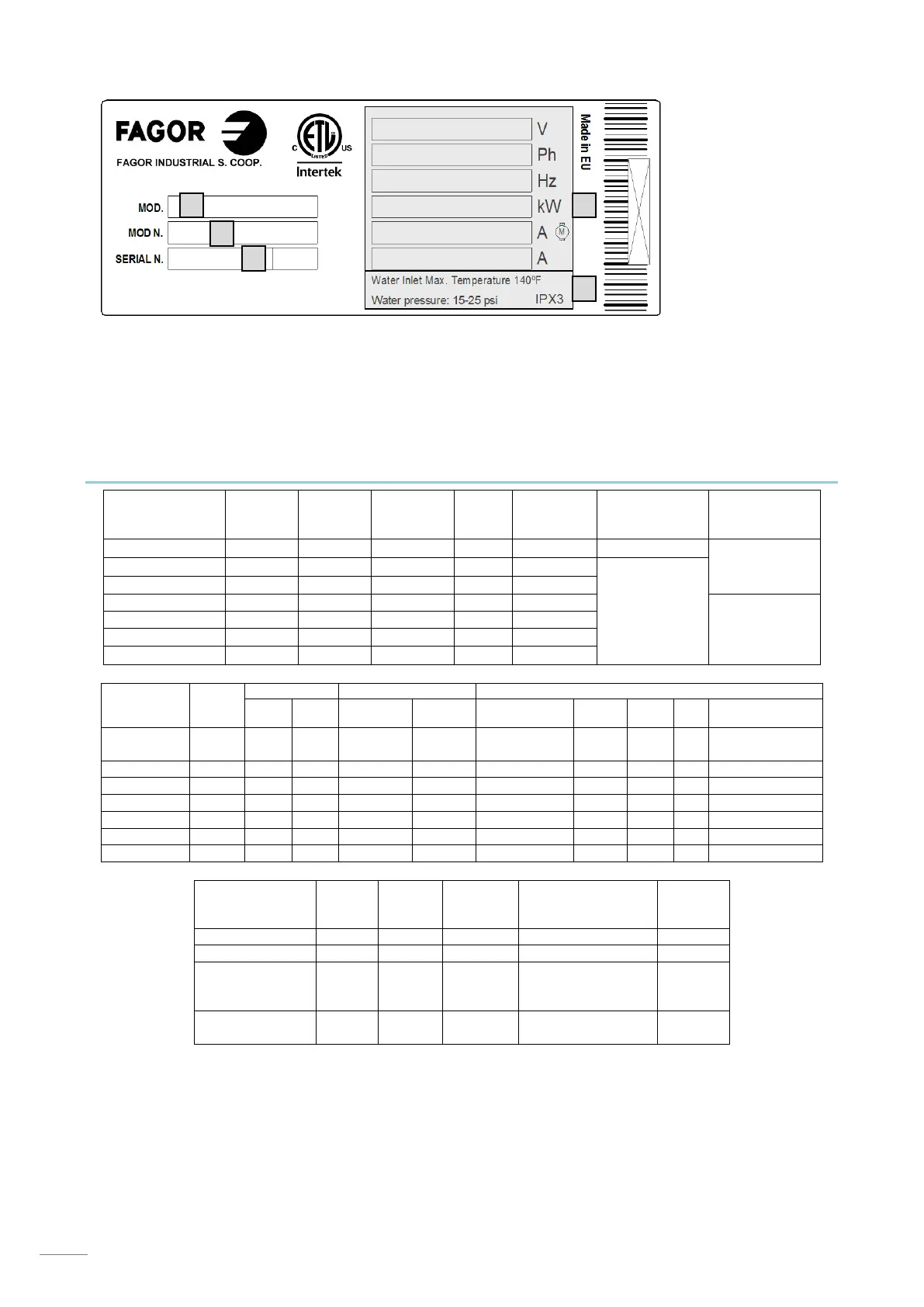

DATA PLATE
1:
APPLIANCE MODEL NAME
4:
ELECTRICAL SPECIFICATIONS
2:
APPLIANCE REFERENCE
5:
WATER INLET SPECIFICATIONS
3:
SERIAL NUMBER + MANUFACTURE DATE
These details should be quoted when the technical service is called.
7.1 TECHNICAL SPECIFICATIONS
MODEL
RACKS
PER HR.
DISHES
PER HR.
GLASSES
PER HR.
WASH
TANK
(gal)
GALLONS
PER
CYCLE
WATER INLET
MAX. TEMP.
WATER INLET
PRESSURE
COP-174W HRS
34
850
1224
8.7
0.53
77 ºF
At Water Inlet
15 – 58 psi
COP-174W
60
1500
2160
8.7
0.53
140 ºF
COP-504W
40
925
1332
5.4
0.53
CO-502W
40
750
1080
5.4
0.53
At Pressure
Gauge
25psi ± 5psi
CO-500W
30
700
1008
5.4
0.53
CO-402W
40
242
352
4
0.53
CO-400W
30
242
352
4
0.53
WASH
MIN. TEMP.
HEATING ELEMENTS
OPERATING CYCLE TIME (s)
MODEL
PUMP
MOTOR
WASH
RINSE
WASH
TANK (kW)
BOILER
(kW)
WASH
DWELL
RINSE
HRS
TOTAL
COP-174W
HRS
1 hp
156°F
180°F
4.9/3.25
13.1/8.7
39/59/104/584
5
11
50
105/125/170/650
COP-174W
1 hp
156°F
180°F
4.9/3.25
13.1/8.7
39/59/104/584
5
11
-
55/75/120/600
COP-504W
3/4 hp
156°F
180°F
3
6.1/4.1/3
74/104/164
5
11
-
90/120/180
CO-502W
3/4 hp
156°F
180°F
3
3
71/101/161
5
14
-
90/120/180
CO-500W
3/4 hp
156°F
180°F
3
3
101
5
14
-
120
CO-402W
1/3 hp
156°F
180°F
2.15
3
71/101/161
5
14
-
90/120/180
CO-400W
1/3 hp
156°F
180°F
2.15
3
101
5
14
-
120
MODEL
WIDTH
DEPTH
HEIGT
MAX CLEARANCE
FOR DISHWARE
RACK
COP-174W HRS
24 3/4”
29 1/2”
75 1/2"
17”
20” x 20”
COP-174W
24 3/4”
29 1/2”
57 2/3”
17”
20 x 20”
COP-504W
CO-502W
CO-500W
23 5/8”
23 5/8”
32 11/16”
14 3/16”
20” x 20”
CO-402W
CO-400W
20 7/8”
26 3/4”
35
10 5/8”
16” x 16”
1
2
3
4
5

Fagor W Series Specifications
