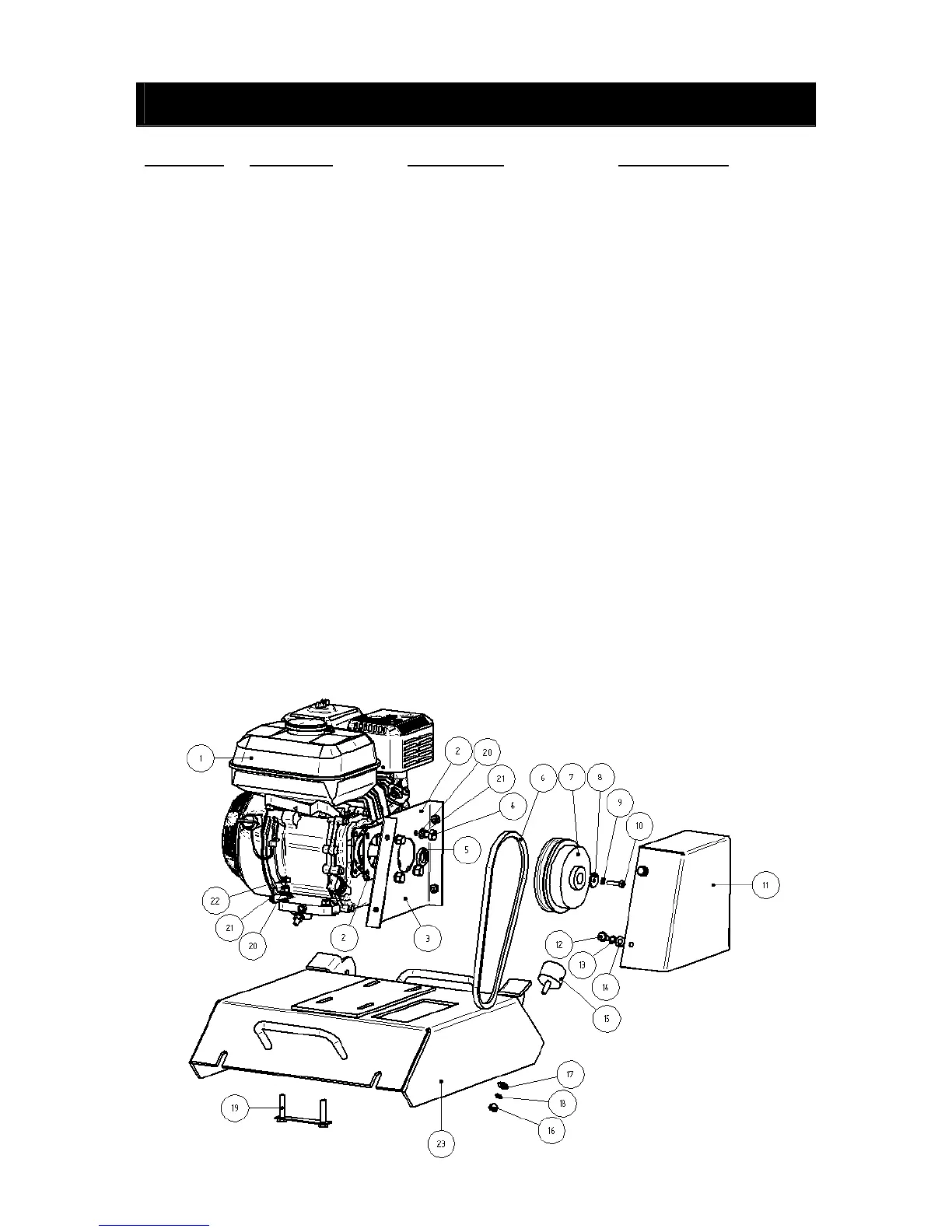

12. PARTS LIST – BEDPLATE AND DRIVE SYSTEM
Parts List Part Code Description Qty Required
1 W81731 Honda GX160 1
2 W14681 Engine Spacer 1
3 W14815 Belt Guard Back Plate 1
4 W406/5/12 5/16 UNF x ¾” Hex Setscrew 4
5 W14562 Clutch Spacer 1
6 W87287 Vee Belt 1
7 W87060 Clutch 1
8 P80120 Retaining Washer 1
9 W432/6 M6 Spring Washer 1
10 P80167 1/4 UNF x 1” Setscrew (FPC320) 1
11 W14816 Belt Guard 1
12 W437/8/16 M8 x 16 Hex Setscrew 4
13 W432/8 M8 Spring Lock Washer 4
14 W418/8 M8 Washer 4
15 W88920 Buffer Mount 2
16 W440/10 M10 Nut 2
17 W418/10 M10 Washer 2
18 W432/10 M10 Spring Lock Washer 2
19 WPC080-005 Engine Fixing Plate 2
20 W418/8 M8 Washer 8
21 W432/8 M8 Spring Lock Washer 8
22 W440/8 M8 Nut 4
23 WPC080-007 Engine Bedplate 1
To Next Page
