Fairport PP46 - Block Compacting Mat Kit

12. PARTS LIST AND FITTING INSTRUCTIONS – BLOCK COMPACTING MAT

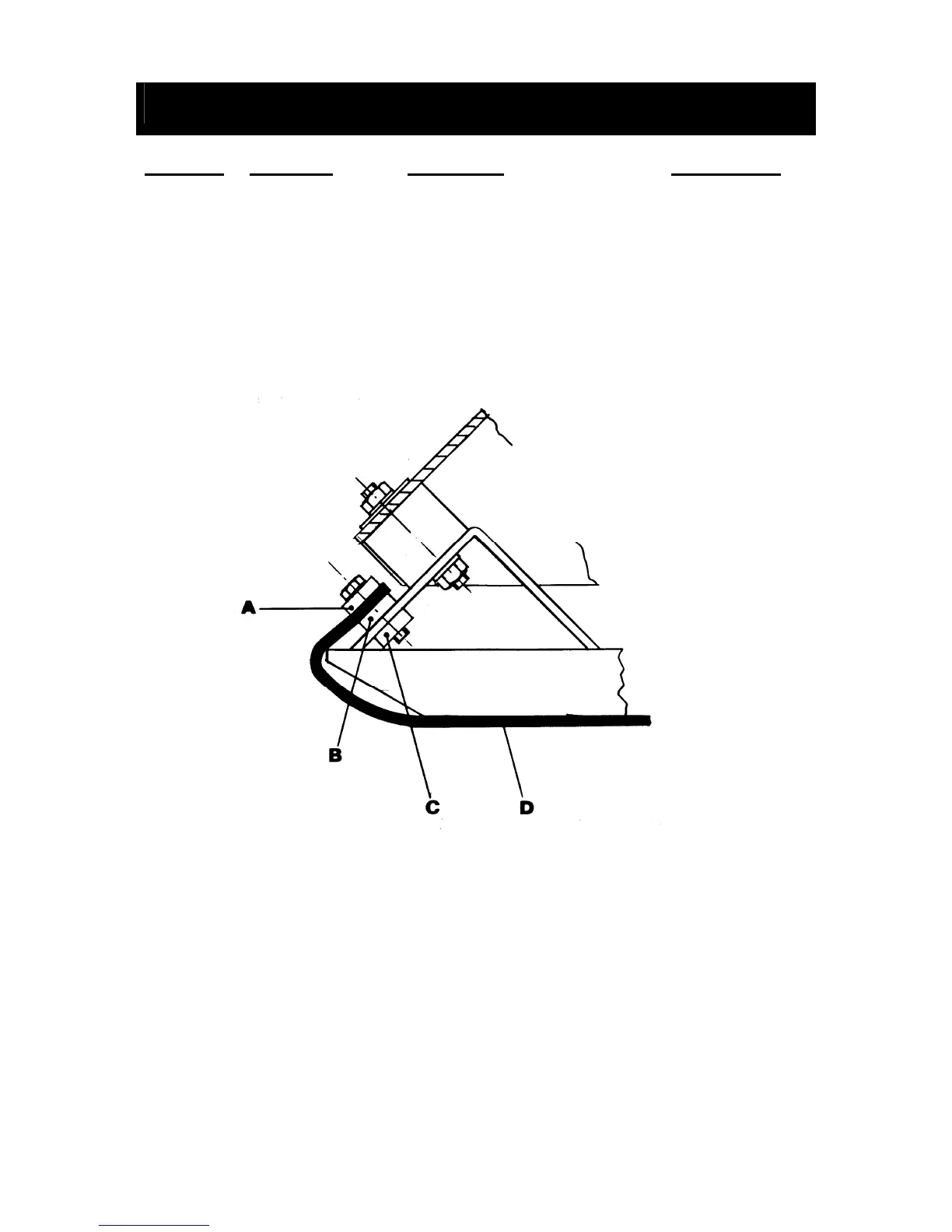

Parts List Part Code Description Qty Required
C W14557 Rear clamp strip 1
B W14558 Centre clamp strip 1
A W14559 Front clamp strip 1
D W14560 Block compacting mat 1
-- W469/8/25 M8 csk screw x 25 2
-- W437/8/40 M8 hex screw x 40 5
-- W439/8 M8 Shakeproof 5
92991 Complete kit, includes all above parts
1. Locate Rear Clamp Strip, C, part no. W14557 behind anti-vibration mount
bracket on plate compactor with welded-on spacer facing upward. The Rear Clamp
Strip is the one with threaded holes
2. Fasten Centre Clamp Strip, B, part no. W14558 to Rear Clamp Strip with the
two M8 countersunk screws provided. The Centre Clamp Strip is the one with the
two countersunk holes.
3. Place Front Clamp Strip, A, part no W14559 onto Block Compacting Mat, D,
part no W14560 and push five M8 hexagon screws through holes in both strip and
mat after first placing Shakeproof washers under heads of screws.
4. Offer Clamp Strip, Mat and screws up to Clamp Strips fastened to compactor.
Locate screws into holes and tighten.
