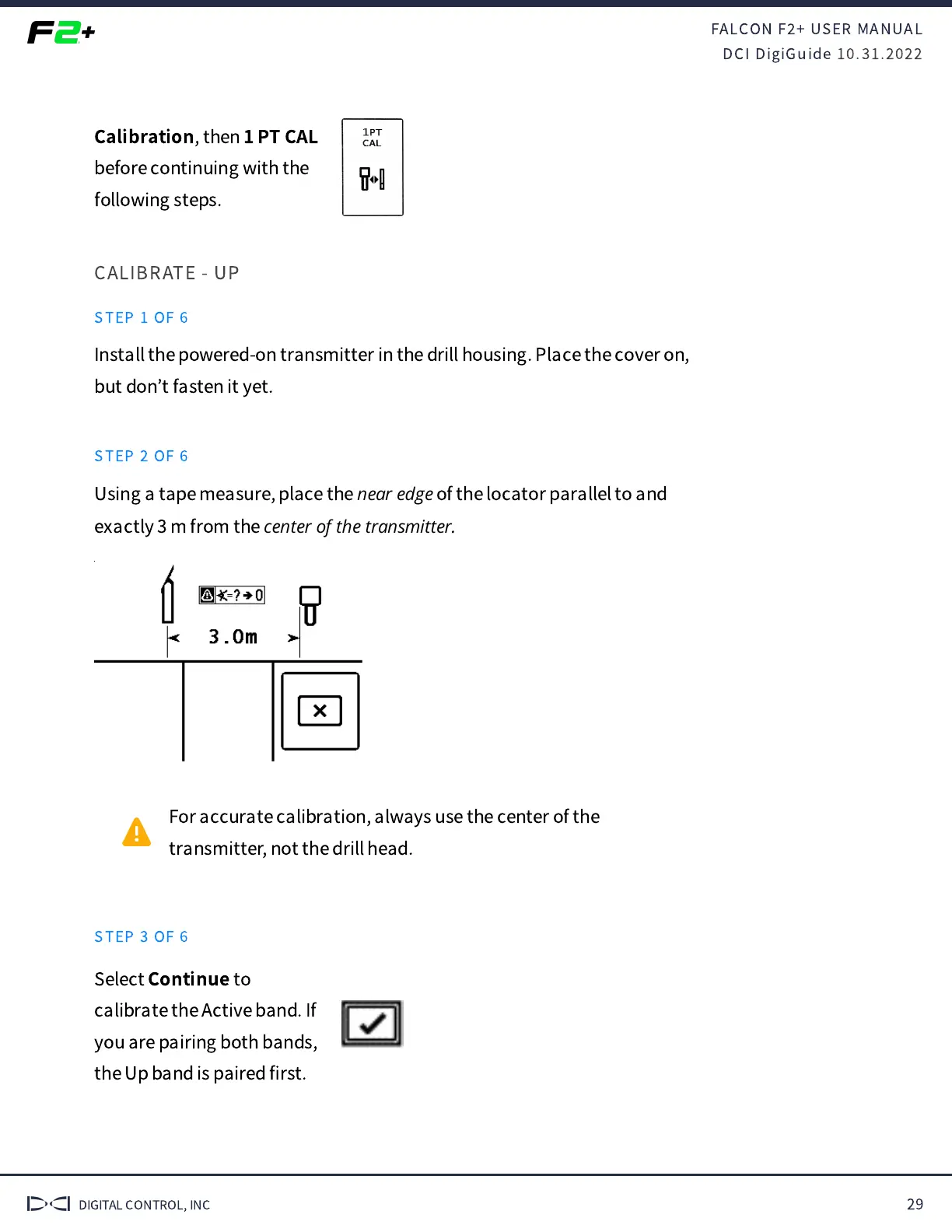

Calibration
, then
1 PT CAL
before continuing with the
following steps.
CALIBRATE - UP
STEP 1 OF 6
Install the powered-on transmitter in the drill housing. Place the cover on,
but don
’
t fasten it yet.
STEP 2 OF 6
Using a tape measure, place the
near edge
of the locator parallel to and
exactly 3 m from the
center of the transmitter.
For accurate calibration, always use the center of the
transmitter, not the drill head.
STEP 3 OF 6
Select
Continue
to
calibrate the Active band. If
you are pairing both bands,
the Up band is paired
fi
rst.
