Operation:
All connections of the device should be made before switching on. Use only high-quality
cables that are as short as possible for the connections.
Number Function Description
1 FUNCTION foot switch Used to switch the pedal on and off as well as to
operate the pedal, see Diagram 1.
2 LED Displays pedal status, see Diagram 2.
3 LEVEL controller Controls the volume.
4 Input Input jack for a standard instrument cable
(6.3mm mono jack).
5 Output With a standard instrument cable, you can
connect another effects pedal or your amplifi er to
this output.
6 DC IN connection For connecting a power supply DC 9V (-) inside.

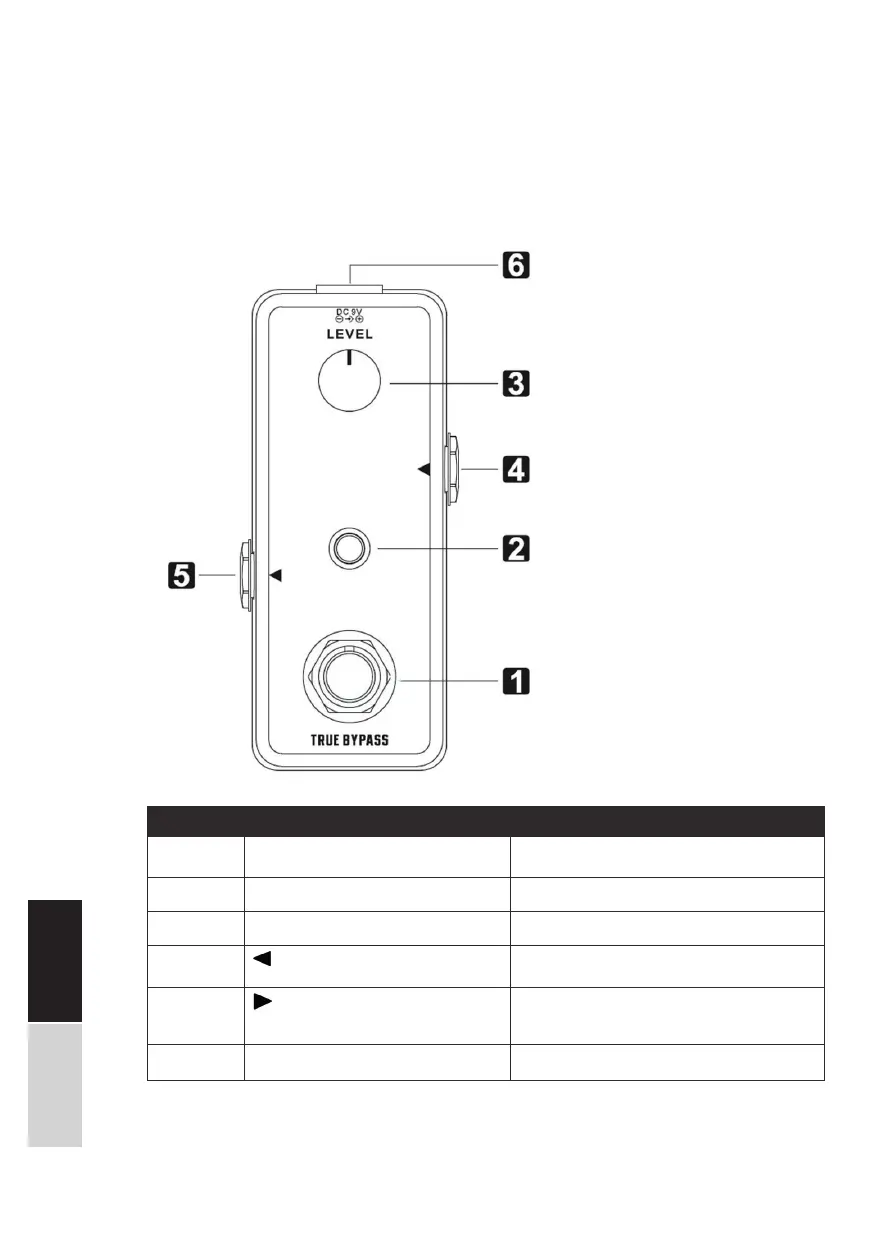

Connections and Control Elements:
