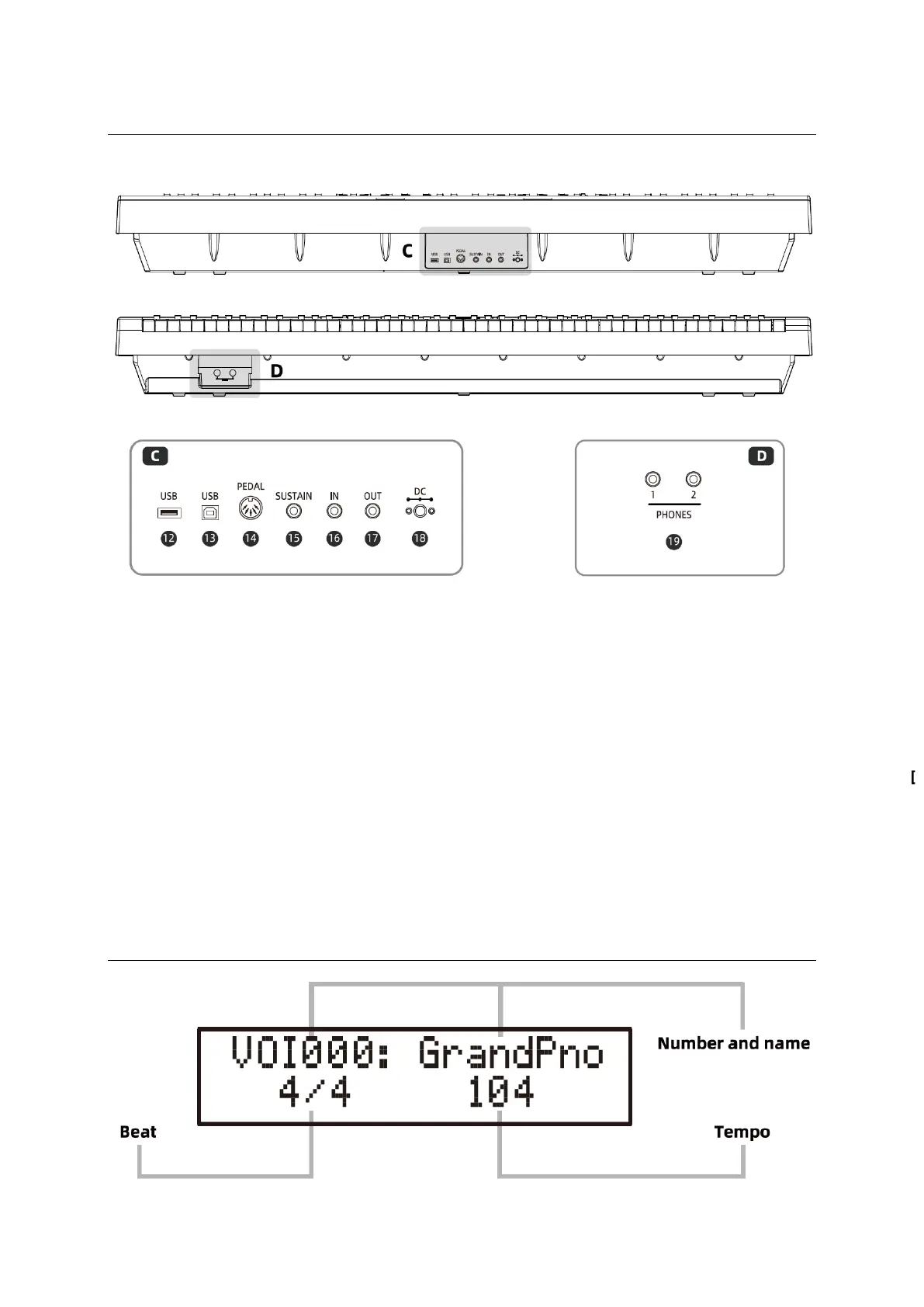

CONNECTIONS
[12] USB jack
[16] Audio In jack
This jack is used to connect a USB memory
device.
This Jack is used to connect an audio output
device with a 6.35mm audio cable.
[13] USB MIDI jack
[17] Audio out jack
This jack is used to connect a computer or a
smart device with a USB-MIDI cable.
This jack is used to connect external
speakers with a 6.35mm audio cable.
[14] Pedal jack
[18] Power jack
This jack is used to connect a Triple Pedal
(Pedal Unit) with the 5-pin DIN plug.
This jack is used to connect the AC Power
Adapter.
[15] Sustain jack
[19] Phones jack
This jack is used to connect a Sustain
Pedal with the 6.35mm plug.
Both jacks are used to connect
headphones with the 6.35mm plug.
