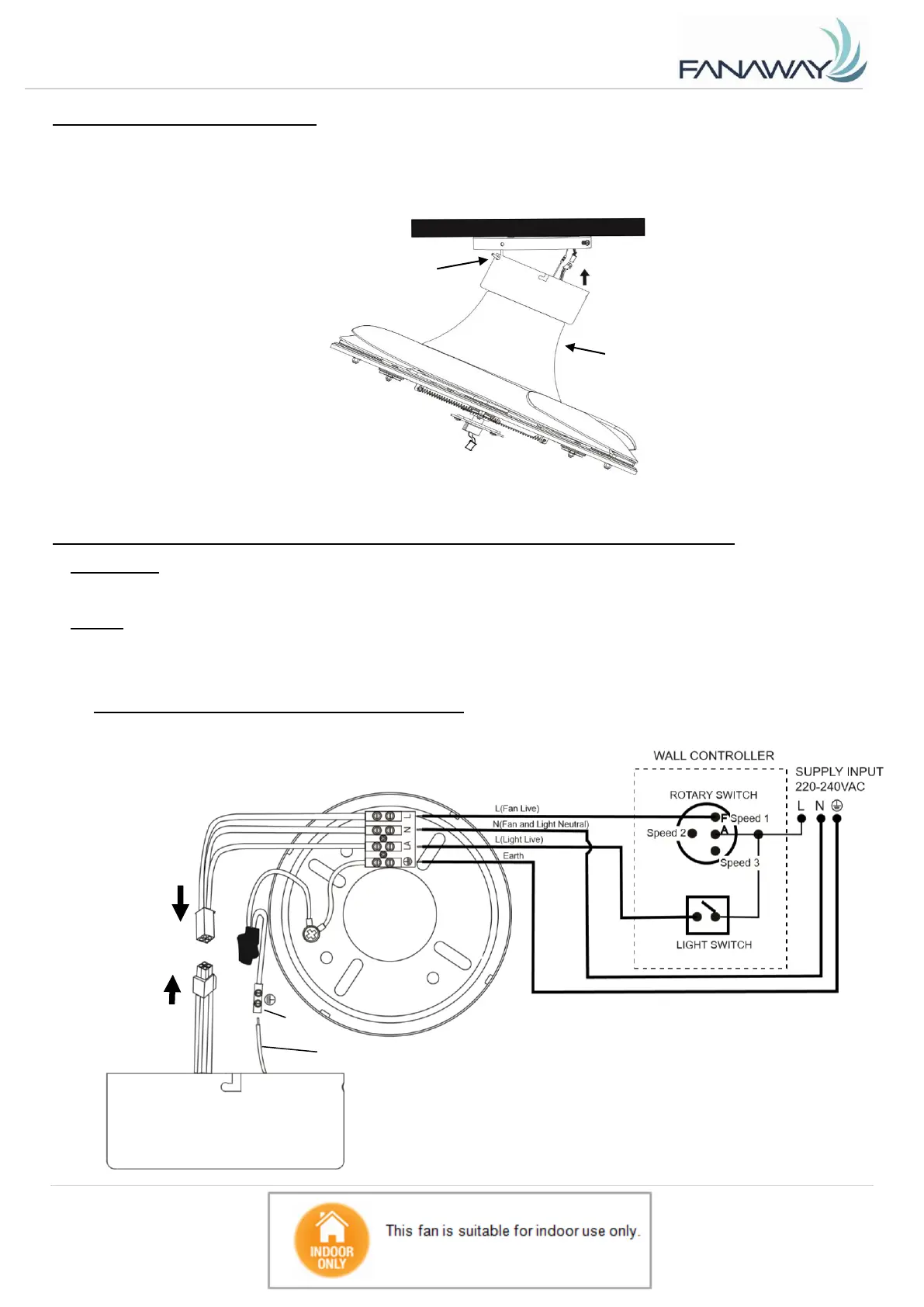

HANGING THE FAN ASSEMBLY
• Lift the fan assembly（1）up to the mounting bracket. Hang the fan assembly onto the J-hook (2) of the
mounting bracket. (Fig.3)
• Complete the electrical wiring according to the ‘ELECTRICAL WIRING DIAGRAM’ section below.
PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 4)
• WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
• NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
• Ensure the motor earth wire is connected to the single earthing terminal block “1” in the diagram below.
• USE WITH WALL SWITCH WIRING DIAGRAM: (Fig.4)
Fig. 3
（2）
1
Motor earth wire
Connect
togehter
Fig. 4
（1）
Fan assembly
