Fanaway Orbit Installation Instructions
7 | P a g e

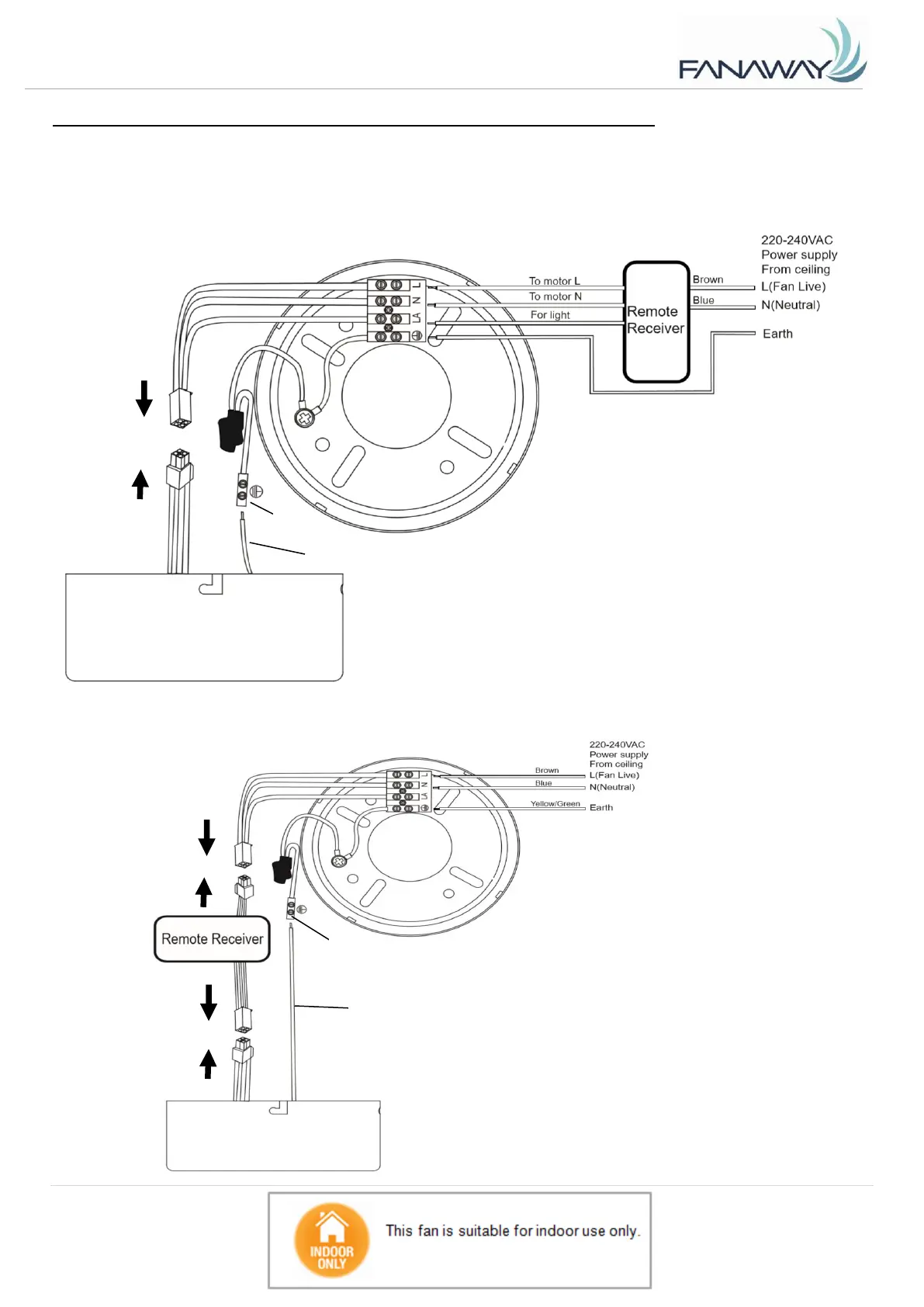

USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)
Ensure the motor earth wire is connected to the single earthing terminal block “1” in the diagram for (Fig.5
and Fig.6)
1/ Remote without plugs (manual wiring) Fig. 5
2/ Remote with plugs (using quick connectors)
Fig. 6
Fig. 5
Motor earth wire
1
Connect together
1
Motor earth wire
Connect together
Connect together
Fan assembly
Fan assembly
