- 5 -

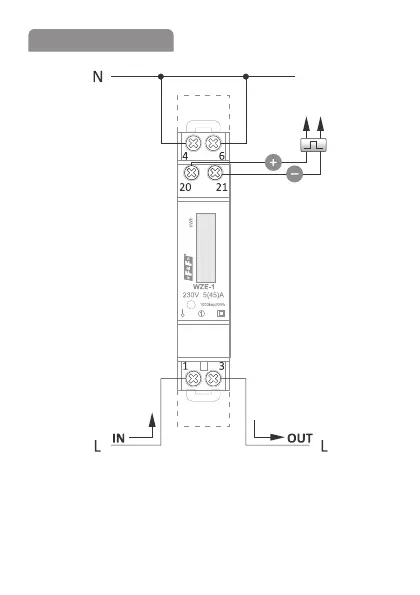

1 phase wire – power supply
3 phase wire – output
4, 6 neutral wire
20 pulse output (+)
21 pulse output (–)
Connection diagram
