Fantek T101D - ELECTRICAL CLEARANCE; Operational Restrictions

USER MANUAL FOR UPSIDE LOAD TOWERS 6
On the following table is recommended the average
length between the highest part of the structure and
the power lines.
Voltage
Min. distance
Between phases
Meters
Feet
0 a 230v
1.5
4.92
230v a 400v
2.8
9.19
400v a 50Kv
3.4
11.15
50Kv a 200Kv
4.9
16.08
200Kv a 350Kv
6.5
21.33
350Kv a 500Kv
8.2
26.90
500Kv a 750Kv
11.3
37.07
750Kv a 1000Kv
14.2
46.59

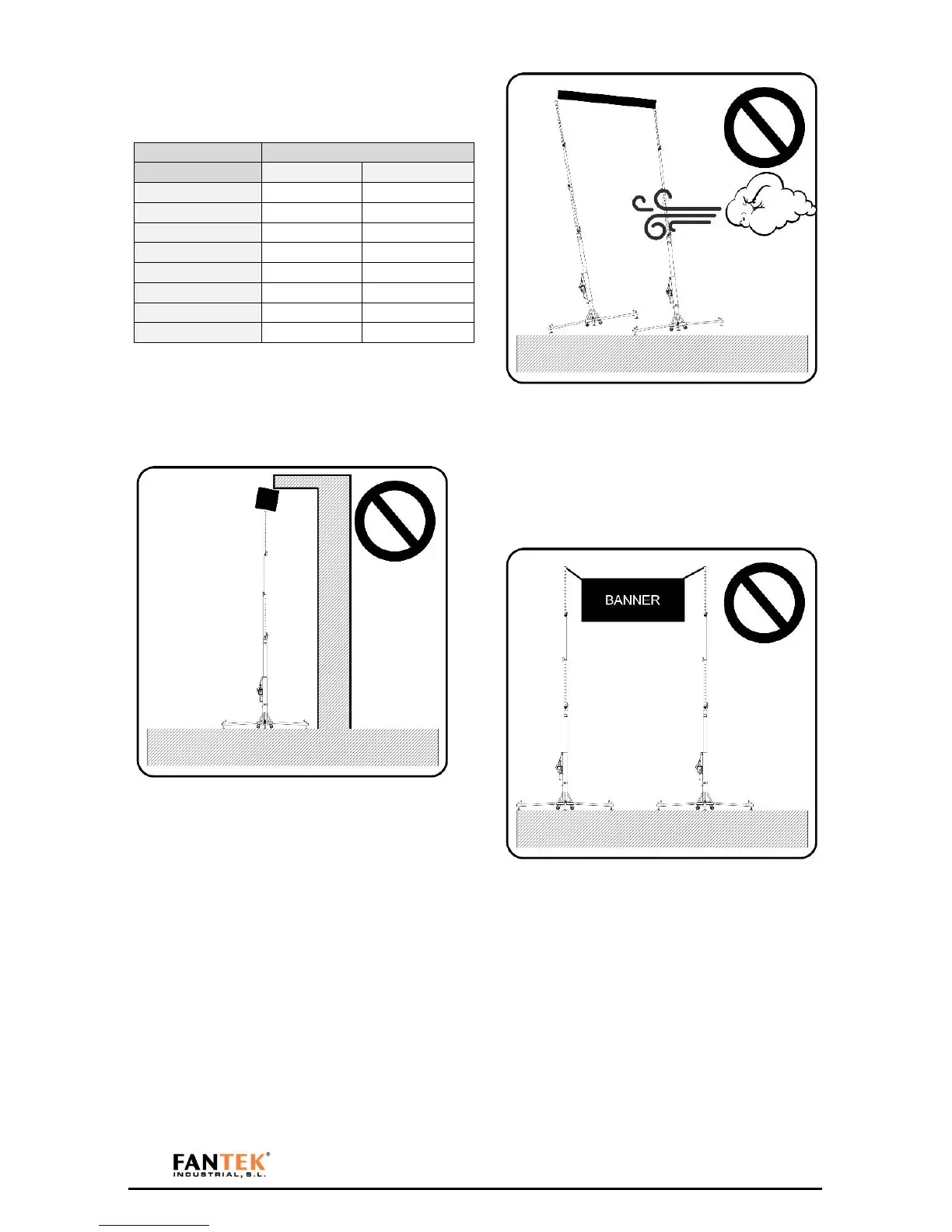

Figure 13
Not use the tower as welding mass.
If necessary, use the grounding placed on the base.
Figure 14
Not lift a load if there is danger of collision. Take at
least 1.5 meters on any direction to lift safety the
load.
Figure 15
The tower can be used outdoor if the wind speed is
low and If it doesn’t put the installation in risk. The
installation is always under responsibility of the
owner.
Figure 16
Do not use the tower as a support of banner or
another type of decoration with strong wind. That can
destabilize the tower and make it fall down.
