USER MANUAL FOR UPSIDE LOAD TOWERS 7

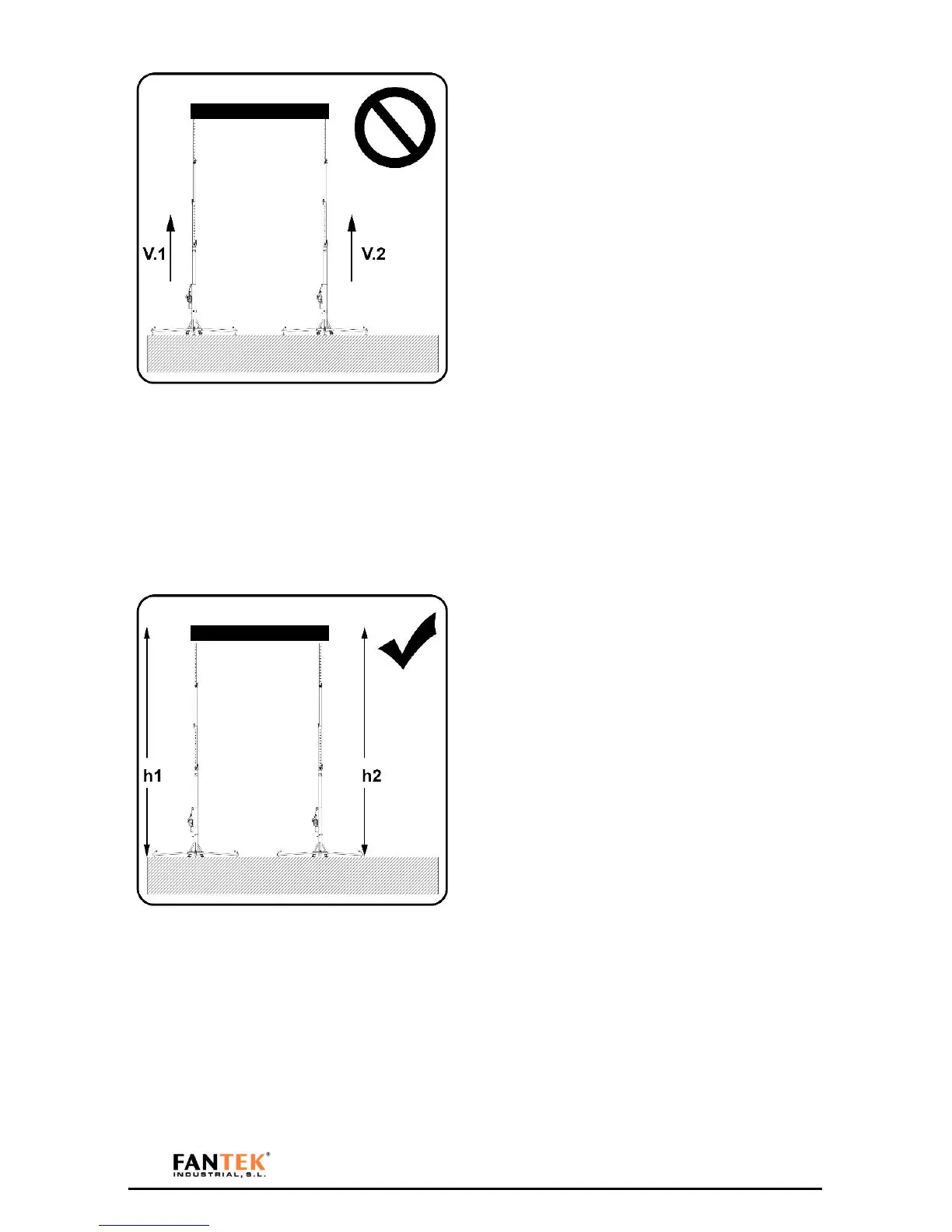

Figure 17
Do not lift structures that require more than one
tower at different speeds
V1
≠
V2
No lift
V1
=
V2
Ok
Figure 18
The structure must be levelled correctly. If not, the
structure can fall.
Always h1 = h2
