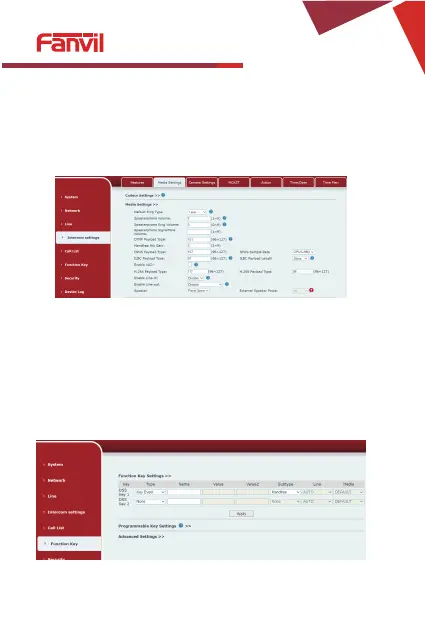

Step 3: Set the volume (if not connected can skip)
Intercom settings => Media Settings => Media Settings
Set the device volume size, as shown below, click [Apply].
Hands-free speakerphone volume setting: normal call speaker volume size.
Hands-free Mic Gain: microphone volume size.
Step 4: Set function key (if not connected can skip)
Set the function key as shown below for a quick start, click [Apply] to save this settings.
Type: Memory key
Number 1 (Value): the function key
will dial to this number 1
Number 2 (Value 2): if number 1 is unavailable, it will be forwarded to number 2.
Subtype: speed dial
Line: working line
Quick installation Guide
PA2S

Other manuals for Fanvil PA2S

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fanvil PA2S and is the answer not in the manual?

Fanvil PA2S Specifications

General IconGeneral
Supported protocolsSIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
Full duplexYes
VPN supportL2TP / OpenVPN
Ethernet LAN data rates10, 100 Mbit/s
WAN connectionEthernet (RJ-45)
Headphone connectivity3.5 mm
Ethernet LAN (RJ-45) ports2
Package depth58 mm
Package width147 mm
Package height114 mm
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)10 - 95 %
Mounting typeDesktop/Wall mounting
Product colorBlack
LED indicatorsNetwork, Status
Enclosure materialAluminum
Voice codecsG.711a, G.711u, G.722, G.729A, G.729B, OPUS
Weight and Dimensions IconWeight and Dimensions
Depth28 mm
Width113 mm
Height83 mm
