GB-17
ENGLISH

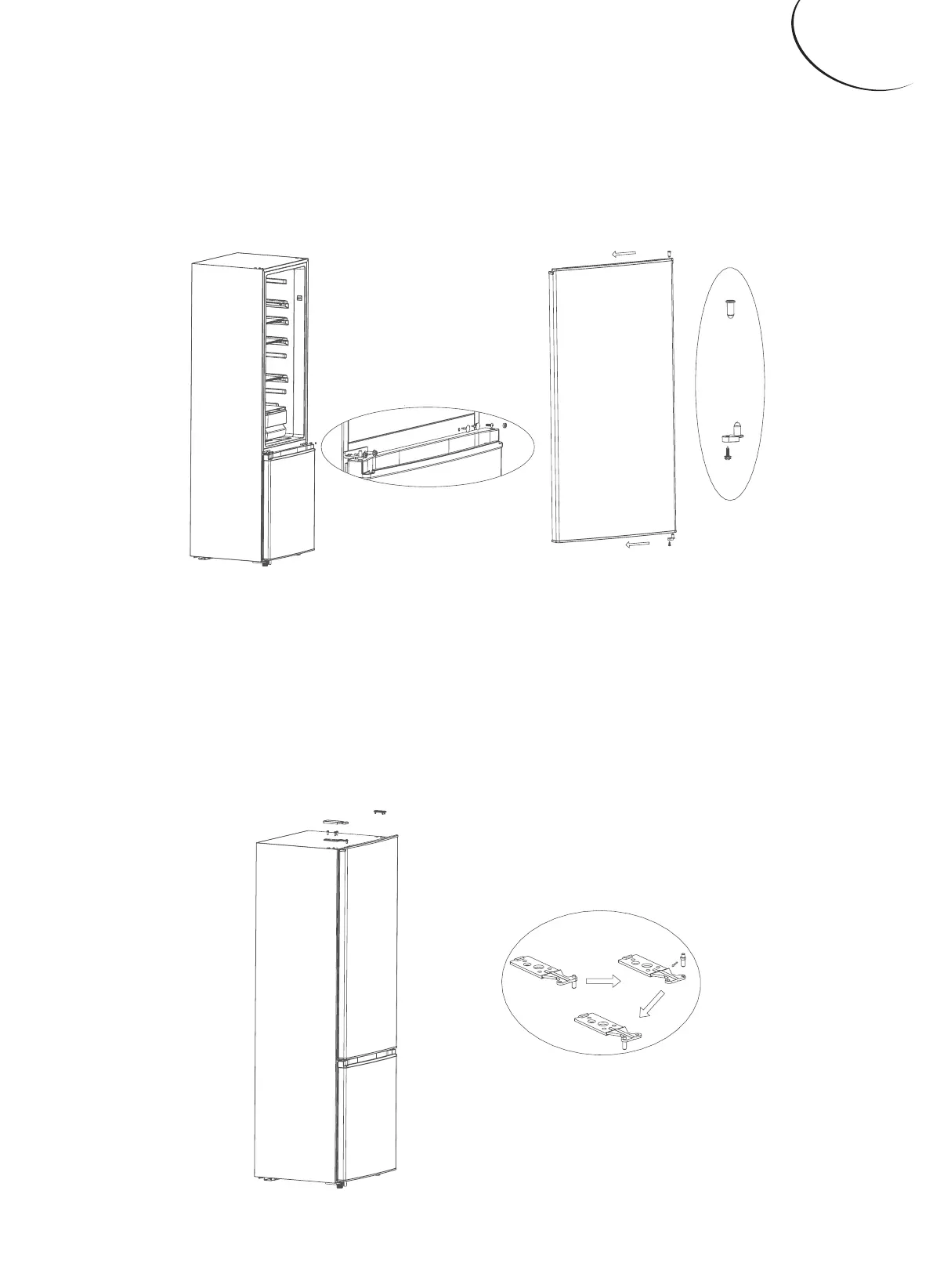

6. Put the freezer door on bottom hinge, then install the middle
hinge and screw hole caps(a). Dismantle the door stopper of
refrigerator door, and install it on other side by fitting screw
(b).
7. Change the installation position of top hinge shaft as shown
as below, then put the refrigerator door on middle hinge, and
fix the top hinge by fitting screws, finally to install the top
hinge cover and hole cap.
To Next Page
