Faria Fuel Manager - Installation; Location

5
IMPORTANT
Always install the Fuel Flow T
. (10 or 2
.
. Damage due to insuf
is not covered by warranty . If in doubt please consult your local
Marine dealer for advice
prior to installation.
Installation
Location
At least 12" from a compass
At least 20" from any radio
Easy to read by the helmsman and
crew
Protection from physical damage
Accessible to electrical cable
connections.
Mounting
The instrument panel may be up to
3
/
4
"
in thickness.
Drill a 2 hole in the instrument
panel.
1
/
16
"
Remove brackets and insert the
the instrument panel.
Slide the back clamp over the
instrument and tighten mounting
nuts until secure.

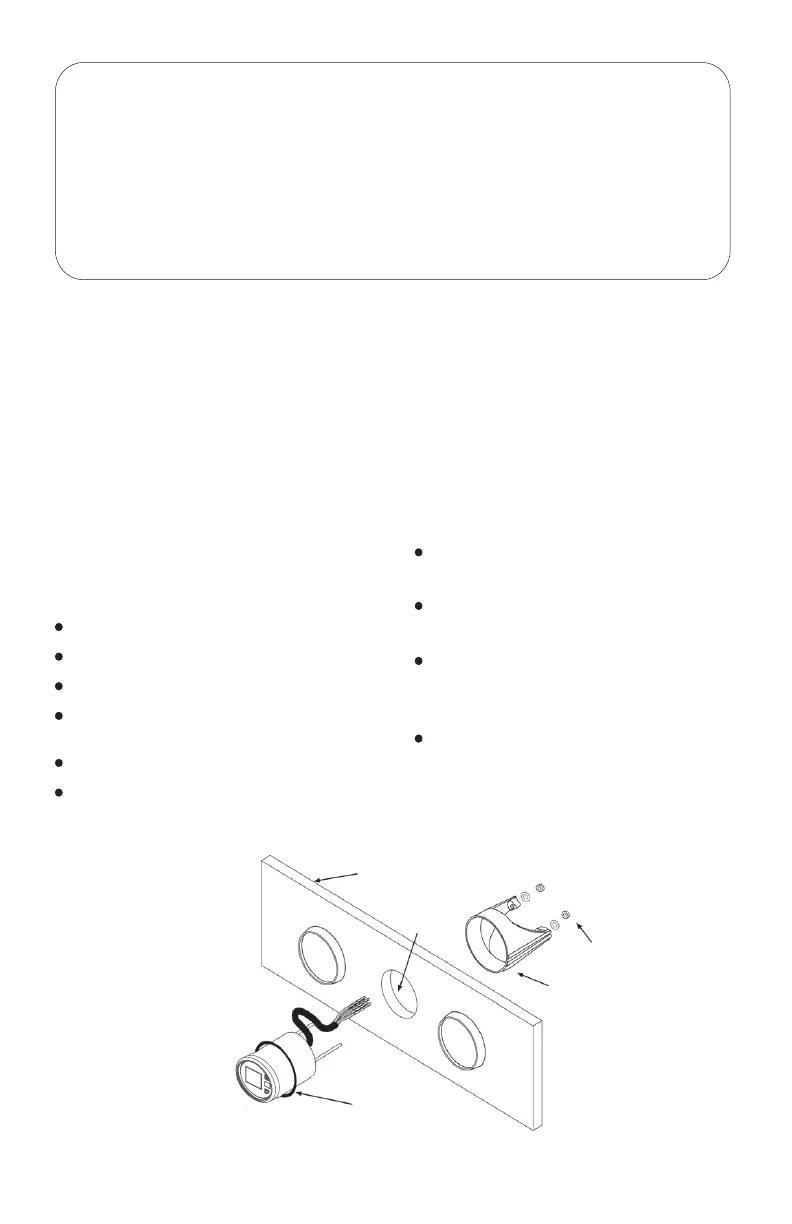

Instrument Panel
2
1
/
16
" Hole
Instrument
Mounting Bracket
Mounting Hardware
The Fuel Management Gauge is designed
for above or below deck installation.
Select a position that is:
5
IMPORTANT
Always install the Fuel Flow Transducer AFTER the primary lter. The primary lter must be
a good quality water separator type with a minimum ltration of 30 microns or better. (10 or 2
micron. The lower the micron rating the ner the ltration) Failure to provide this level of
ltration protection will result in inaccurate readings or total failure or damage to the transducer.
If there is not a suitable length of hose after the primary lter, an in-line lter (30 micron or
better) should be tted before the Fuel Flow transducer. Damage due to insufcient ltration
is not covered by warranty. If in doubt please consult your local
Marine dealer for advice
prior to installation.
Installation
Location
On a at surface
At least 12" from a compass
At least 20" from any radio
Easy to read by the helmsman and
crew
Protection from physical damage
Accessible to electrical cable
connections.
Mounting
The instrument panel may be up to
3
/
4
"
in thickness.
Drill a 2 hole in the instrument
panel.
1
/
16
"
Remove brackets and insert the
instrument so the back is ush with
the instrument panel.
Slide the back clamp over the
instrument and tighten mounting
nuts until secure.
Instrument Panel
2
1
/
16
" Hole
Instrument
Mounting Bracket
Mounting Hardware
Always wire your Fuel Management Gauge into your boat’s ignition so that when the
engine is turned on, the gauge is recording the fuel used. If an accessory switch is used
and you forget to turn the unit on then the gauge will not have recorded the fuel used
and will be inaccurate. If you are unsure how to do this, contact a qualied marine
electrician.
The Fuel Management Gauge is designed
for above or below deck installation.
Select a position that is:
