Farnell TSV 70 - Page 19

oUTPUT IMPEDANCE (OHMS)
1-0T
0-54
0-1
+30mVt
+20mVt
+10nV
70V
-10mV
-20mV
-30mV+
1 KHz
10 KHz
FREQUENCY
1 HR.

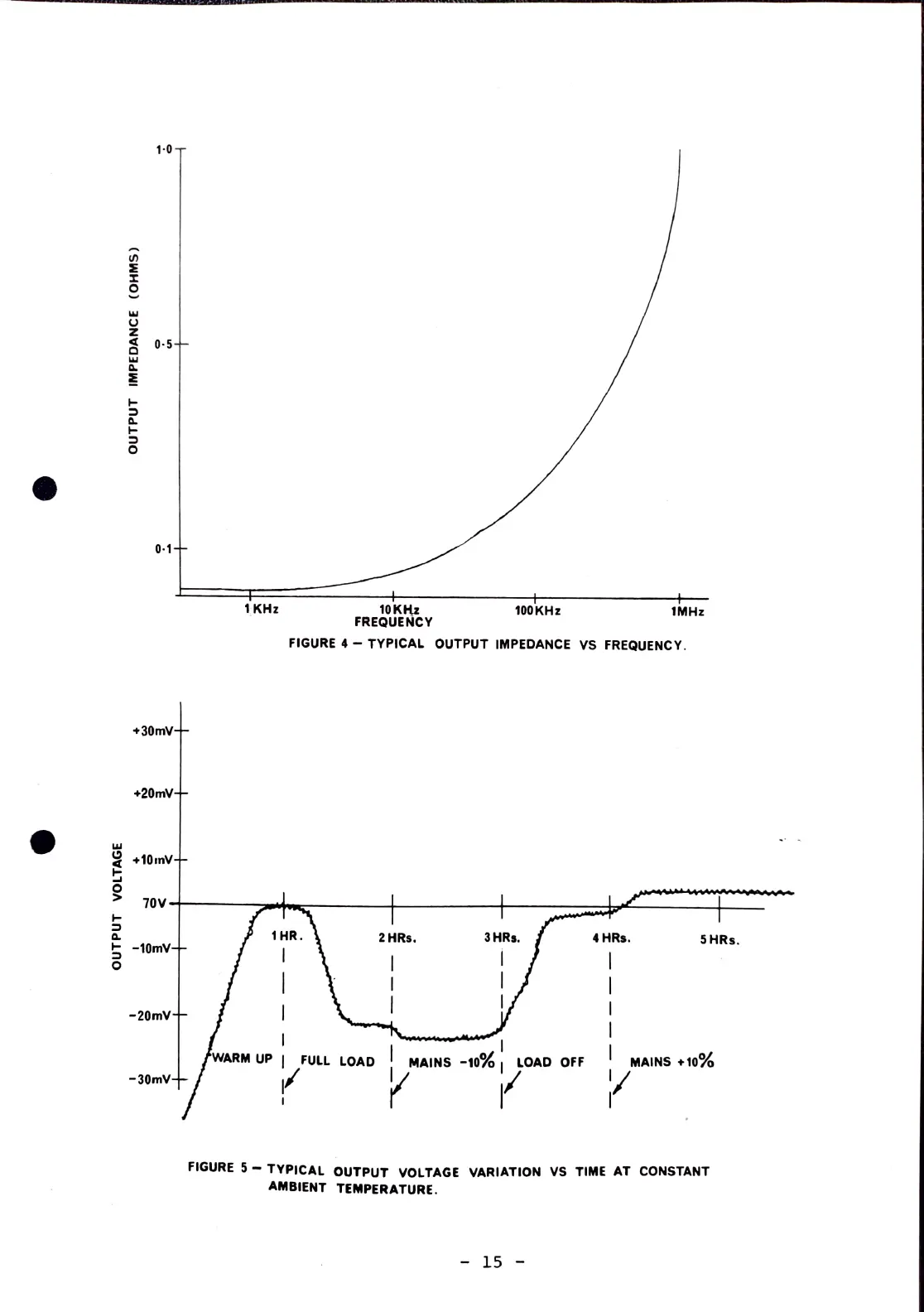

FIGURE 4- TYPICAL OUTPUT IMPEDANCE Vs FREQUENCY.
2 HRs.
100 KHz
3HRs.
WARM
UP |
FULL
LOAD
MAINS -10% LOAD OFF
- 15
1MHz
4 HRs.
5 HRs.
MAINS + 10%
FIGURE 5 - TYPICAL oUTPUT vOLTAGE VARIATION vs TIME AT CONSTANT
AMBIENT TEMPERATURE.
