Farnell TSV 70 - Page 2

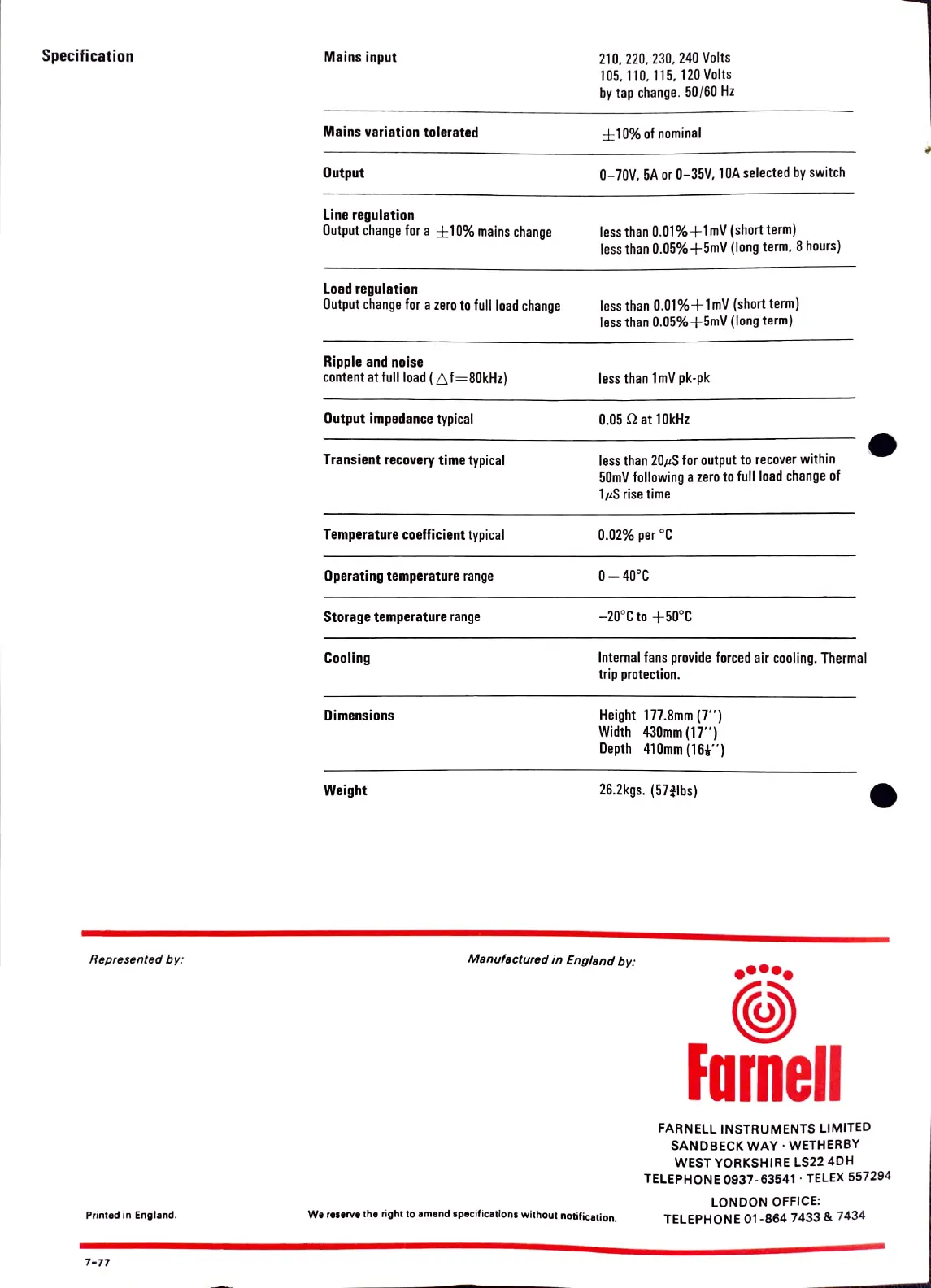

Specification
Represented by:
Printed in England.
7-77
Mains input
Mains variation tolerated
Output
Line regulation
Output change for a 10% mains change
Load regulation
Output change for a zero to full load change
Ripple and noise
content at full load (Af=80kHz)
Output impedance typical
Transient recovery time typical
Temperature coefficient typical
Operating temperature range
Storage temperature range
Cooling
Dimensions
Weight
210, 220, 230, 240 Volts
105, 110, 115, 120 Volts
by tap change. 50/6O Hz
+10% of nominal
0-70V, 5A or 0-35V, 10A selected by switch
less than 0.01%+1mV (short term)
less than 0.05%+5mV (long term, 8 hours)
less than 0.01%+1mV (short term)
less than 0.05%+5mV (long term)
less than 1mV pk-pk
0.05 2 at 10kHz
less than 20S for output to recover within
50mV following a zero to full load change of
1uS rise time
0.02% per °C
0- 40°C
-20°C to +50°C
Internal fans provide forced air cooling. Thermal
trip protection.
Height 177.8mm (7")
Width 430mm (17")
Depth 41Omm (161")
26.2kgs. (572lbs)
Manufactured in England by:
We roserve the right to amend specifications without notification.
