HYDRAULIC SCHEMATICS
FOR CRANE
F 170A
54
CODE DESCRIPTION
DV002 DEVIATOR
DV008 DEVIATOR
FI870 FILTER
RU975 FAUCET
VA102 DOUBLE EFFECT BLOCK VALVE
VA175 BLOCK VALVE + FAUCET
VA187 BLOCK VALVE + FAUCET
VA194 DOUBLE EFFECT BLOCK VALVE
VA209 SIMPLE EFFECT BLOCK VALVE
VA222 OIL FLOW REGULATOR VALVE FOR ROTATION CYLINDER
VA227 SEQUENCE VALVE
VA233 DOUBLE EFFECT BLOCK VALVE

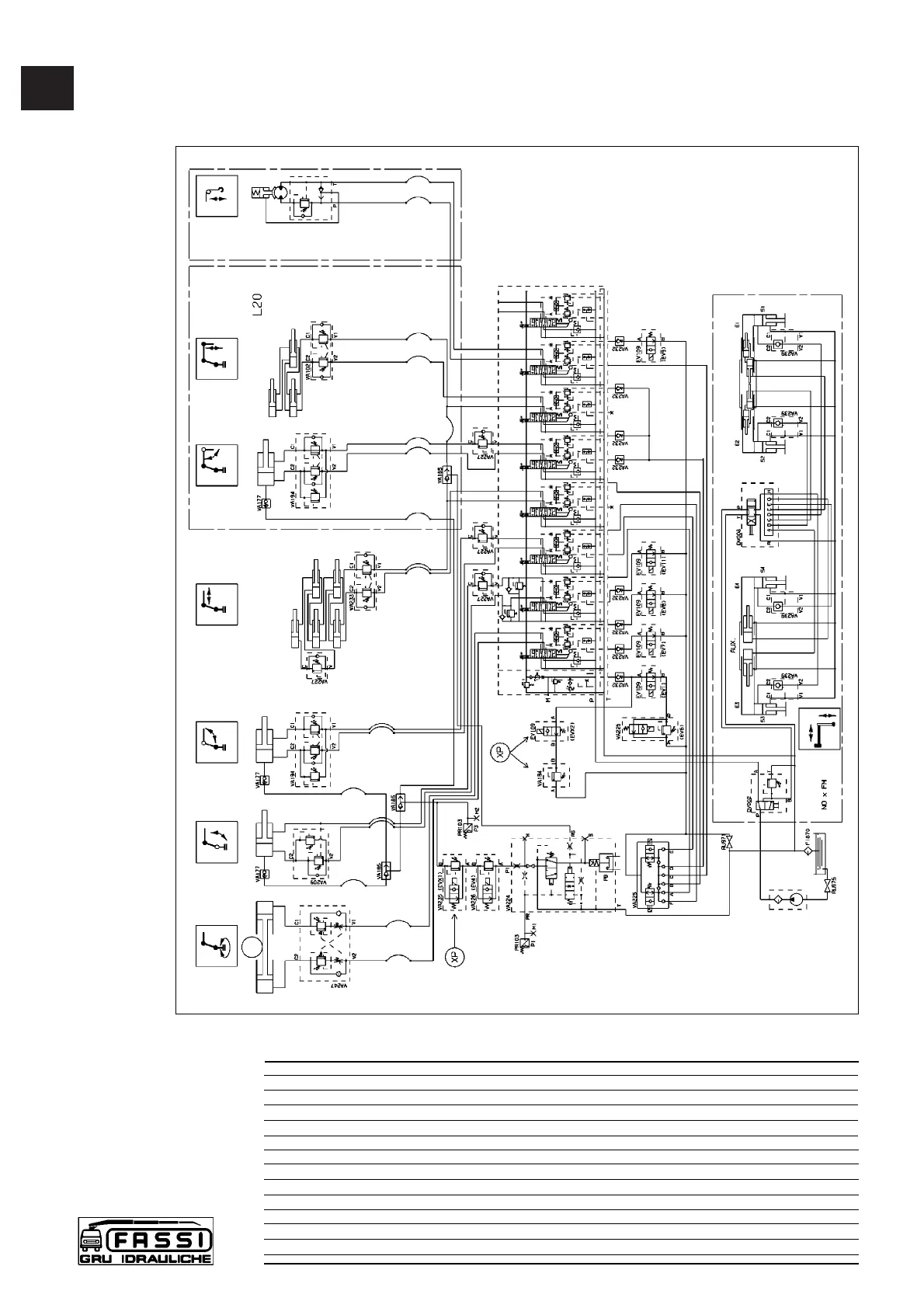

Hydraulic schematic for crane - Danfoss distributor - load limiting device
