the crane must be operated from the
opposite side or with the radio-remote
control.
When operating through a winch, lift the
load vertically using the cable and not the
booms in order to avoid swinging the load.
Do not rotate the crane before the load
is lifted.
Do not operate with sudden move-
ments, activate the controls with slow
and progressive movements; rotate
slowly and with care paying attention to
the stability of the vehicle.
With vertical lift, on hydraulic and
mechanical extension, rotate slowly in
order to avoid side-skidding.

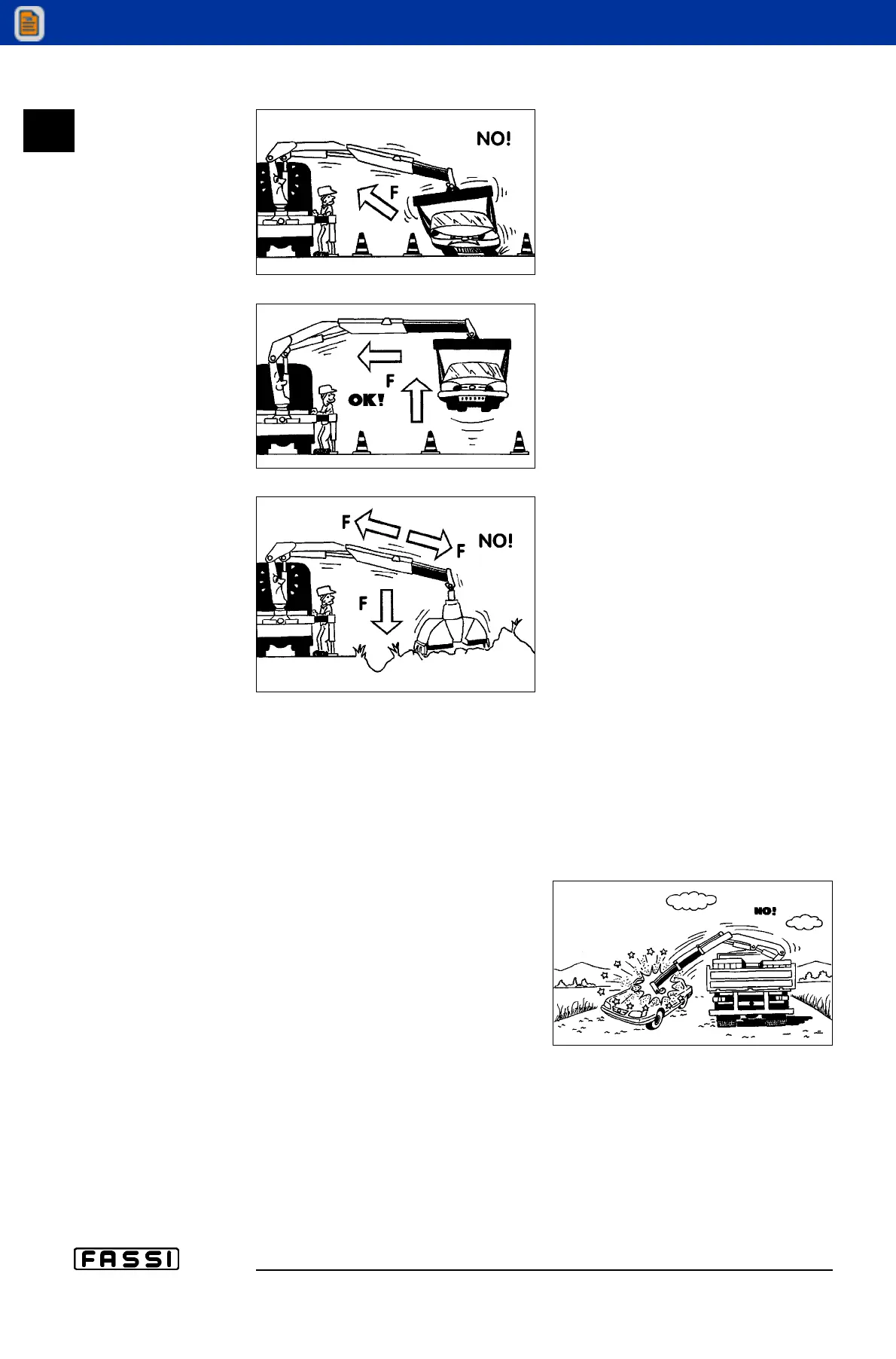

(!) ATTENTION (!)
Do not utilize the crane for pushpull
(F), lateral (F) or sideways (F) opera-
tions.
(!) ATTENTION (!)
Crushing (F) or push (F) ma-noeu-
vres are not permitted.
(!) Never operate the outriggers
when the crane is loaded.
(!) ATTENTION (!)
The vehicle\crane must not be left
unless the load is on the ground, the booms of the crane (and of the
hydraulic jib), are folded and laid on a solid base and the power take-off is
disengaged.
Do not move the vehicle with the crane not in transport position and not with a
load suspended on the crane.
7.4 At the end of the operation (Prior to driving the vehicle)
Fold the crane.
If the booms of the crane (or of the
hydraulic jib) are to be laid on the body
or on the load, they must be suitably
blocked to prevent possible sideways
movements.
Make sure that the indications about
the overall dimensions are respected.
NOTE
Implements can be left mounted on the booms of the crane (or of the hydraulic
jib) only if the overall dimensions are respected; they must be suitably blocked to
prevent possible sideways movements.
If an accessory (fork, ...) is mounted, it must be tied down at all times during tran-
sport.
Make sure that the outrigger supports and rams are re-entered within the overall
width of the truck and locked by the safety devices.
Disengage the power take off.
7.4
WARNING AND
INSTRUCTIONS
GRU FASSI
