CRANE

NOMENCLATURE

GR3_080

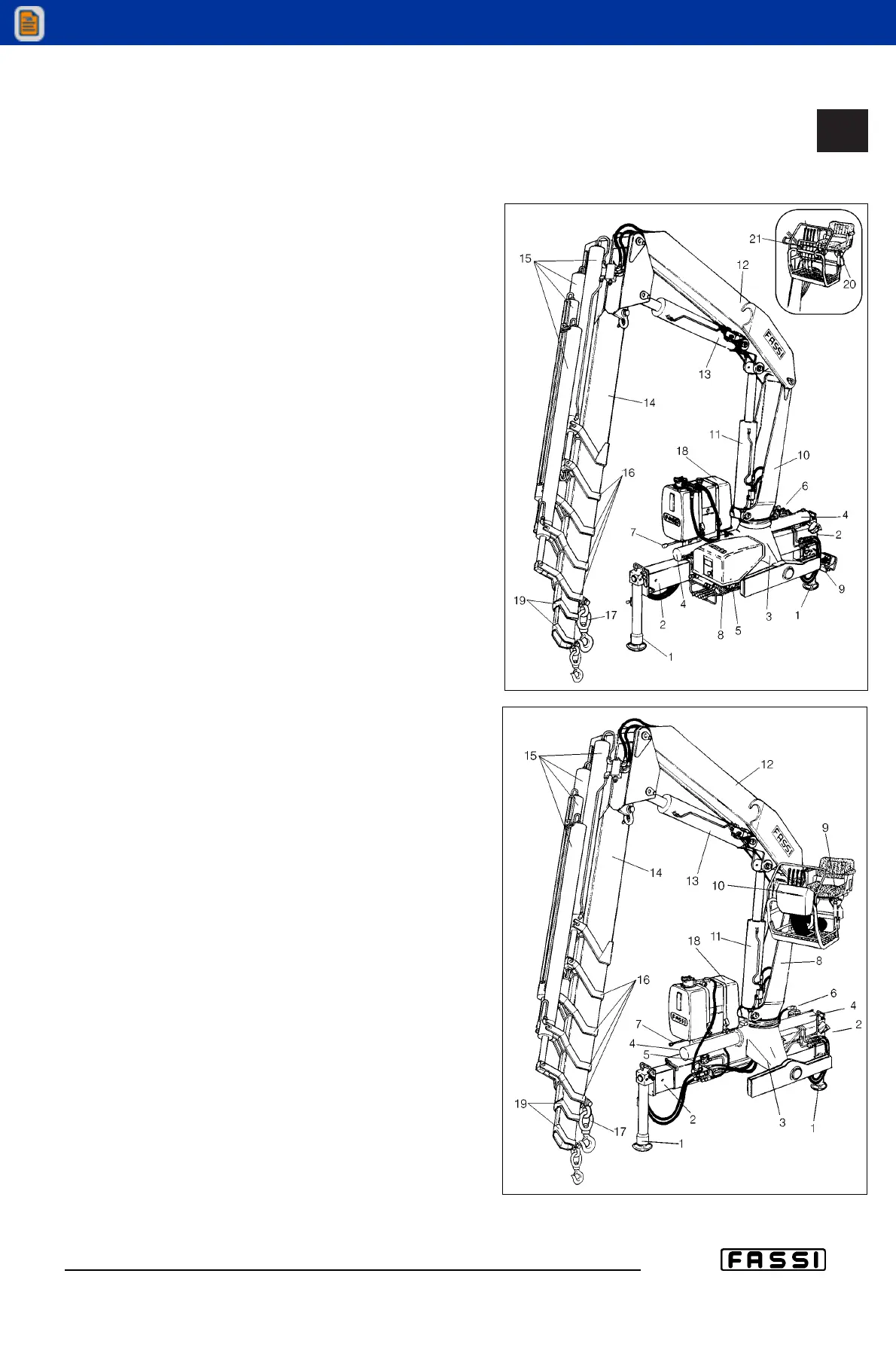

9 CRANE NOMENCLATURE

9.1 Crane with ground controls on both sides.

Crane with ground controls on both

sides and with top seat controls by

hand cables (on request) (fig. 4).

Pos. Description

1. Outrigger rams

2. Outrigger supports

3. Base

4. Rotation cylinders

5. Deviator crane-outriggers

6. Outrigger distributor

7. Outrigger double control

8. Distributor bank

9. Double control

10. Column

11. Inner ram

12. Inner boom

13. Outer ram

14. Outer boom

15. Booms extension rams

16. Extension boom sections

17. Lifting hook

18. Oil tank

19. Manual extensions (optional)

20. Seat (optional)

21. Hand-cables for crane (optional)

9.2 Crane with top seat controls and with

ground controls for outriggers. (fig. 5)
