11
SUPPLEMENTARY
BEAMS
GR3_80»95

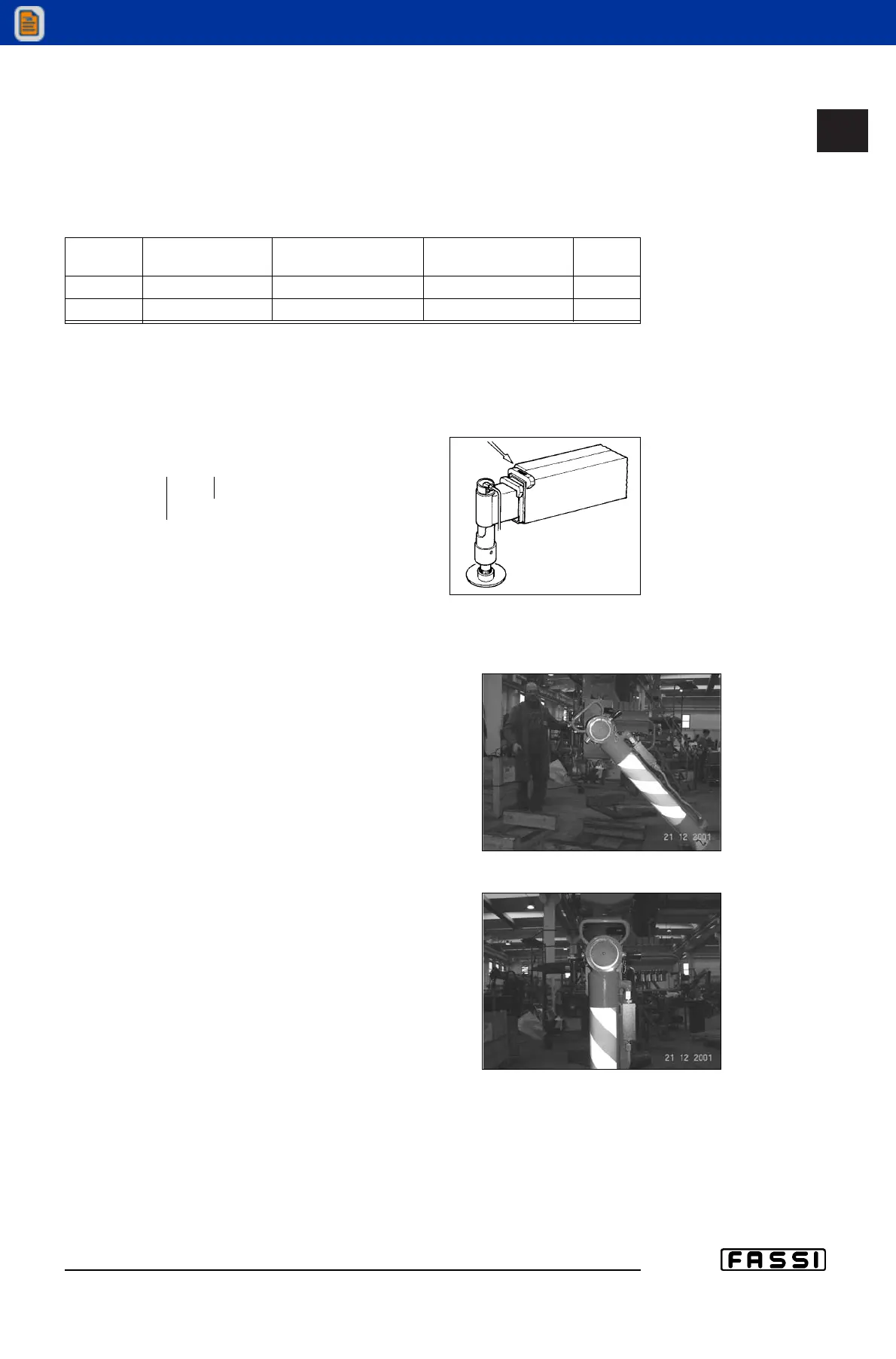

11 SUPPLEMENTARY BEAMS
11.1 Generality
Supplementary beams are used in conjunction with the crane outriggers to
ensure the vehicle stability during load handling.
Code
outrigger ram outrigger extension Weight
stroke mm interaxis mm type kg
52185 550 2132
Fixed
115
42049 550 3098
Manual
195
11.2 Identification of the supplementary beams
Identification data of the supplementary beam is punched on the beam (fig. 8) in
the following sequence:
Ex. *42049*0001
serial no.
identification code
12 TILTABLE OUTRIGGER RAMS
12.1 Manually tiltable outrigger rams
They are outrigger rams, which can be placed in a
vertical (at 180°) or inclined position (at 30°) to avoid
obsticles on the truck frame. (fig. 9-9a)
To position the rams in a working condition.
- Supporting the ram, remove the check pin and the
locking pin from their positions; when the ram is in the
vertical position, a stop prevents it permits from over-
turning.
- Position, carefully, the ram in working condition,
insert the locking pin in its new position and secure
it with the check pin (fig. 9a)
To re-position the rams to the folded position.
- Remove the check pin and the locking pin from
their position.
- Carefully position, the ram in a upward direction and
support the ram, insert the locking pin in its new
position and secure it with the check pin (fig. 9); if
the ram is placed in a vertical position, a rotation
stop prevents overturning.
(!) The locking pin is held to the base structure by a chain
in order to prevent its loss.
(!) The locking pin is constructed from special material
- do not replace it with a non original part
- your security depends on it
fig. 8
fig. 9a
fig. 9
