13.1.1 Manual extension and re-entry of the
outrigger supports
(!) ATTENTION (!)
To manoeuvre the supports hands must only grab the handles
placed on the outrigger rams.

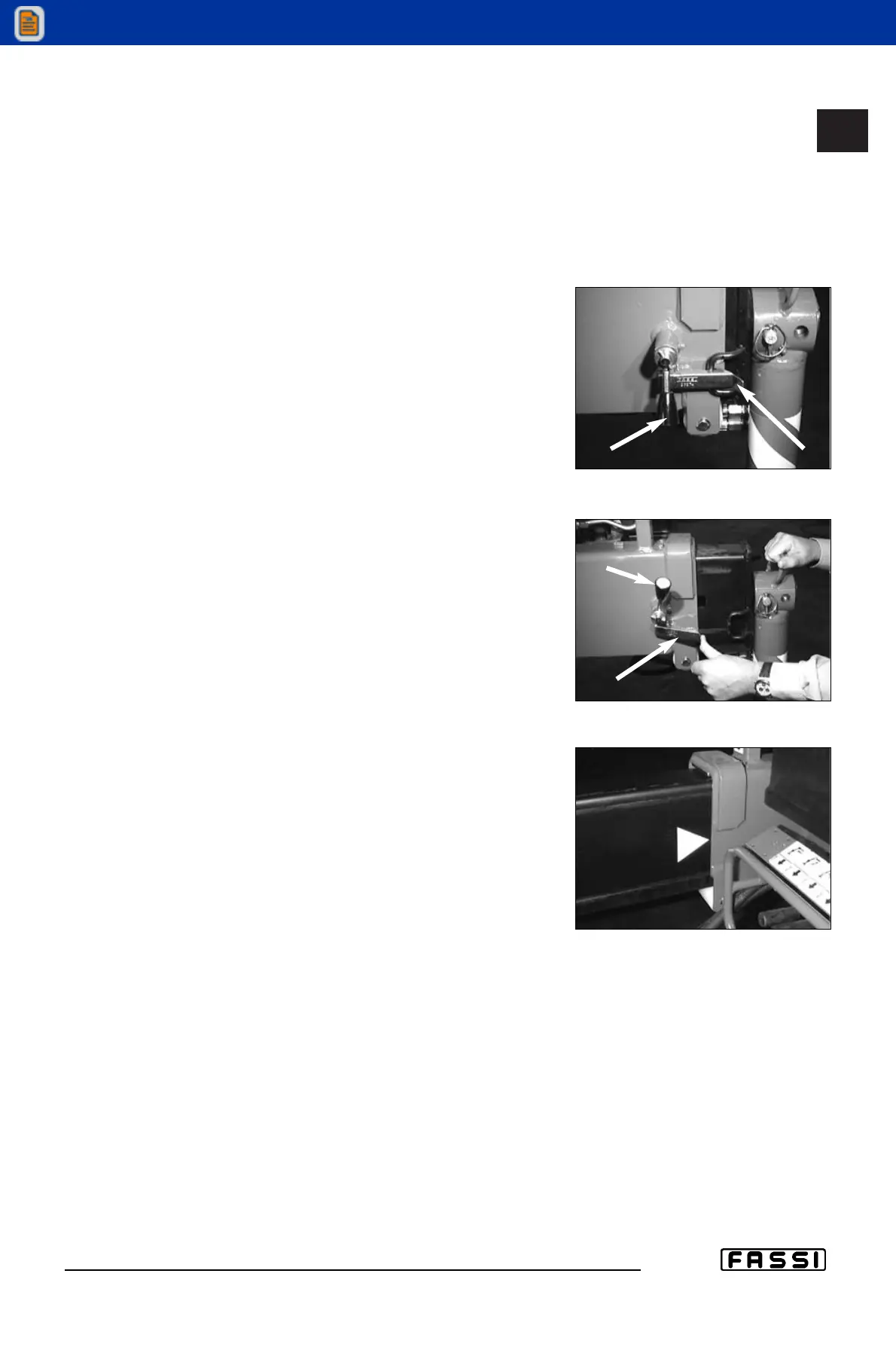

- Disengage the locking devices of the outrigger supports by
putting the levers of the devices A and B from the position of
the fig. 10 to the one of the 10a.
- Pull, extending from the base the outrigger support.
- Position the lever of the device B downwards; the locking loaded
security device B remains disengaged.
- Pull, extending the outrigger support till the engaging of the
pin of the device B in its seat.
- By the same sequence, repeat the operations described to
extend the other support.
To re-enter the outriggers repeat the operations previously
described in reverse.
(!) WARNING (!)
Keep hands clear of automatic stop device (lever A of the fig.
10).
Always check that the outriggers locks, once in their rest
position, are locked in their seat by the safety devices, so as
to assure the impossibility of accidental movement.
13.2
SUPPLEMENTARY
BEAMS
GR3_80
fig. 10
B
A
B
A
fig. 10b
fig. 10a
