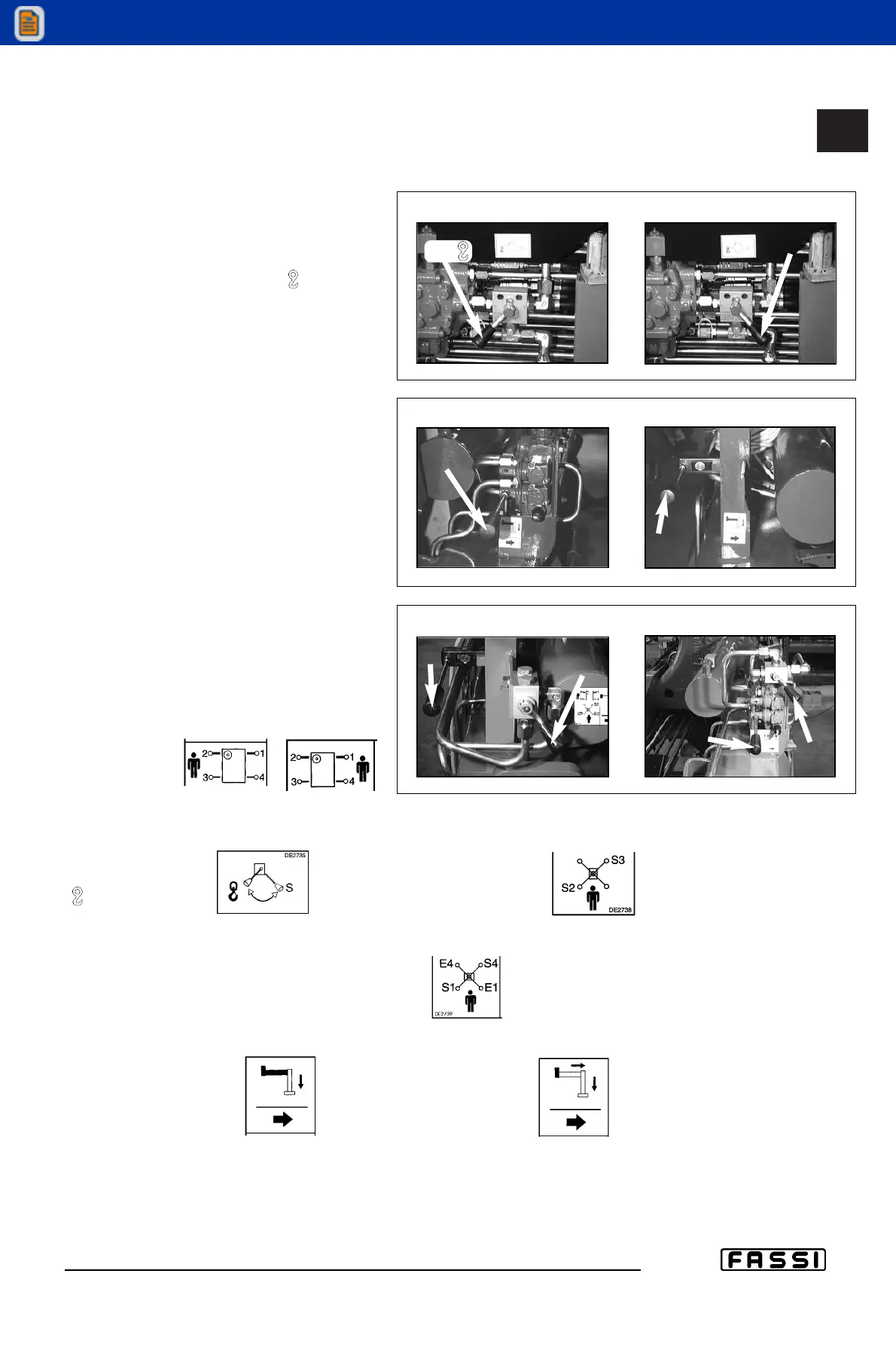

13.2 Functions of control levers for stabilization
The controls to stabilize the vehicle are activated only from ground level and
on both sides of the crane base.
Lever function D - C - CD
Lever D Control for deviator
crane-outriggers ( - S ).
(fig. 12-12a)
Levers C Control and dual control
for outrigger distributor
(fig. 12b-12c)
Levers CD Deviator control for selecting
the outrigger rams (outrigger-
extension); the position of the
select lever is guaranteed by
an internal detent.
(fig. 12d-12e)
NOTE
The graphic symbols illustrated hereunder
are marked on the plates affixed on the
deviator and indicate with the following
symbolism
They indicate the position of the operator
in relation to the vehicle and the crane.
Control for deviator Positions of the deviator
crane-outriggers to control:
( - S) Outrigger rams (S)
Positions of the deviator to control:
Outrigger extension (E)
Outrigger rams (S)
Activation control for: Activation control for:
Outrigger rams Outrigger extension
Outrigger rams
See Paragraph 25 Instruction and warning plates.
13.2
SUPPLEMENTARY
BEAMS
GR3_80
fig. 12
D=
fig. 12a
D=S
fig. 12b
C
fig. 12c
C
fig. 12d
fig. 12e
C
CD
C
CD
