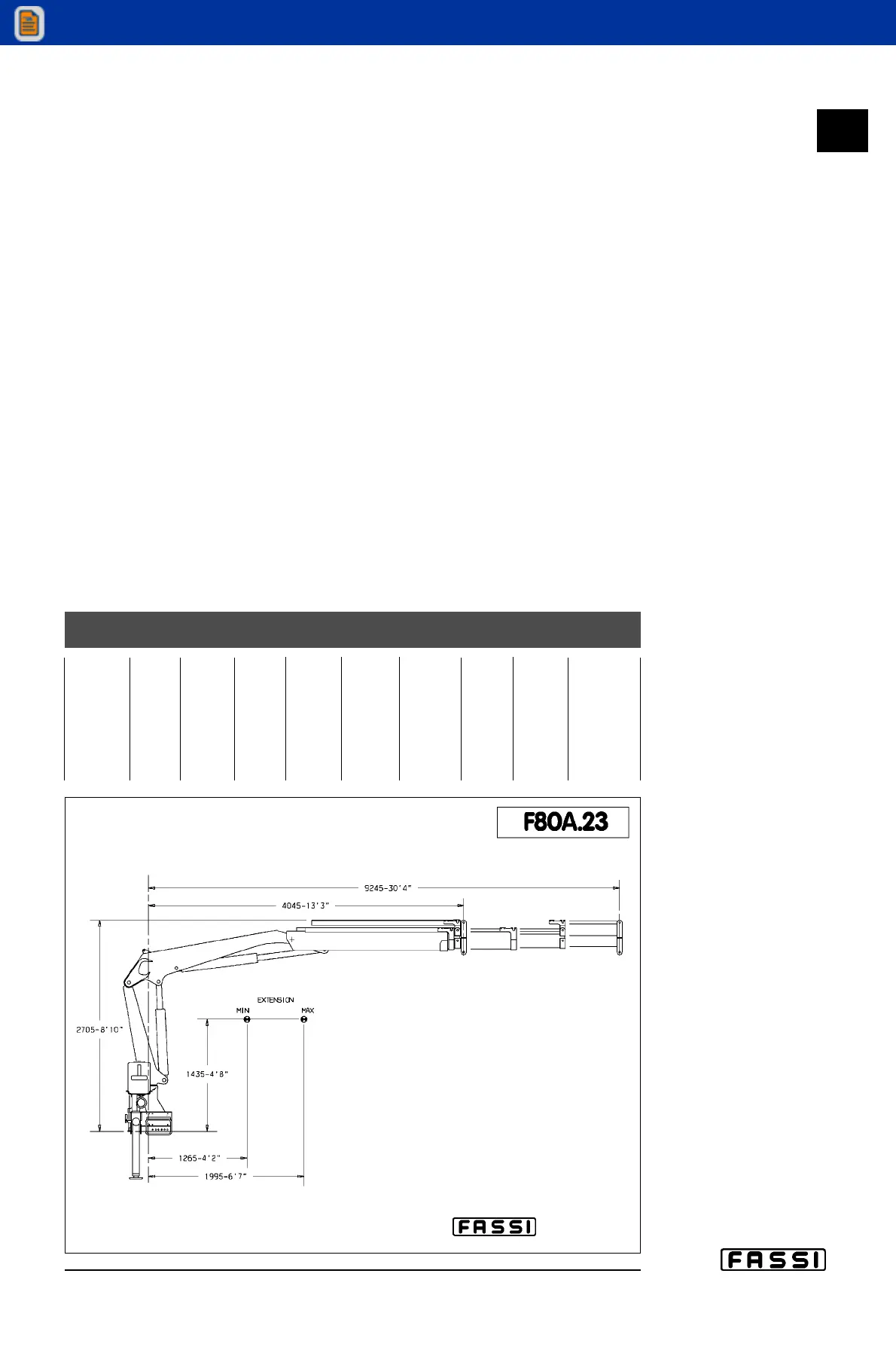

2 CLASSIFICATION OF THE CRANE MODEL
2.1 Generality
The design of this crane has been carried out in respect of DIN 15018 norms,
fatigue test classification H1B3.
The crane can operate, intermittently, with lifting devices other than the hook.
The dimensions and the capacity of the implements must be proportioned with
crane performances.
2.3 Technical data
2
CLASSIFICATION OF
THE CRANE MODEL
F 80A.23
ST 080
F 80A.23
Lifting Standard Hydraulic Rotation Rotation Working Pump Oil tank Crane Max. working
capacity reach extension arc torque pressure capacity capacity weight pressure
on the outrigger
(Φ 140)
7,5 tm 9,30 m 5,20 m 370° 1,20 tm 30 MPa 20 l/min 60 l 1110 kg 43,2 daN\cm
2
73,6 kNm 11,75 kNm
54.248 30’6” 17’0” 8.680 4.351 5,28 15,85 2.447 626,56 psi
lbf.ft ft/in ft/in lbs.ft psi gal/min gals lbs
