FATEK P5043N - Page 223

223

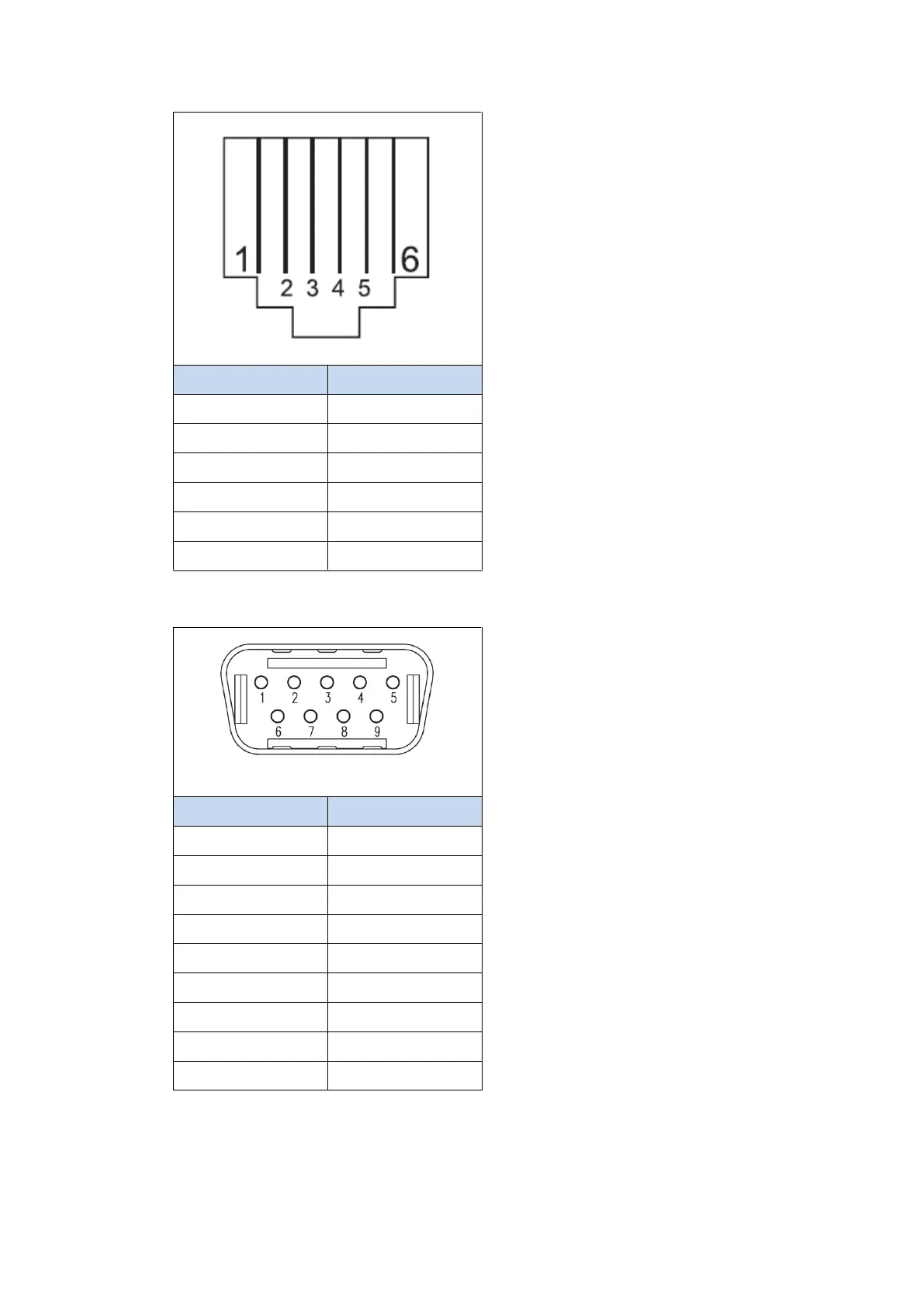

PIN#
Signal
1
GND
2
Power+ 5V
3
Rx (RS-232C)
4
Tx (RS-232C)
5
Power+ 5V
6
GND
HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
4
5
GND
6
7
RTS
8
CTS
9
