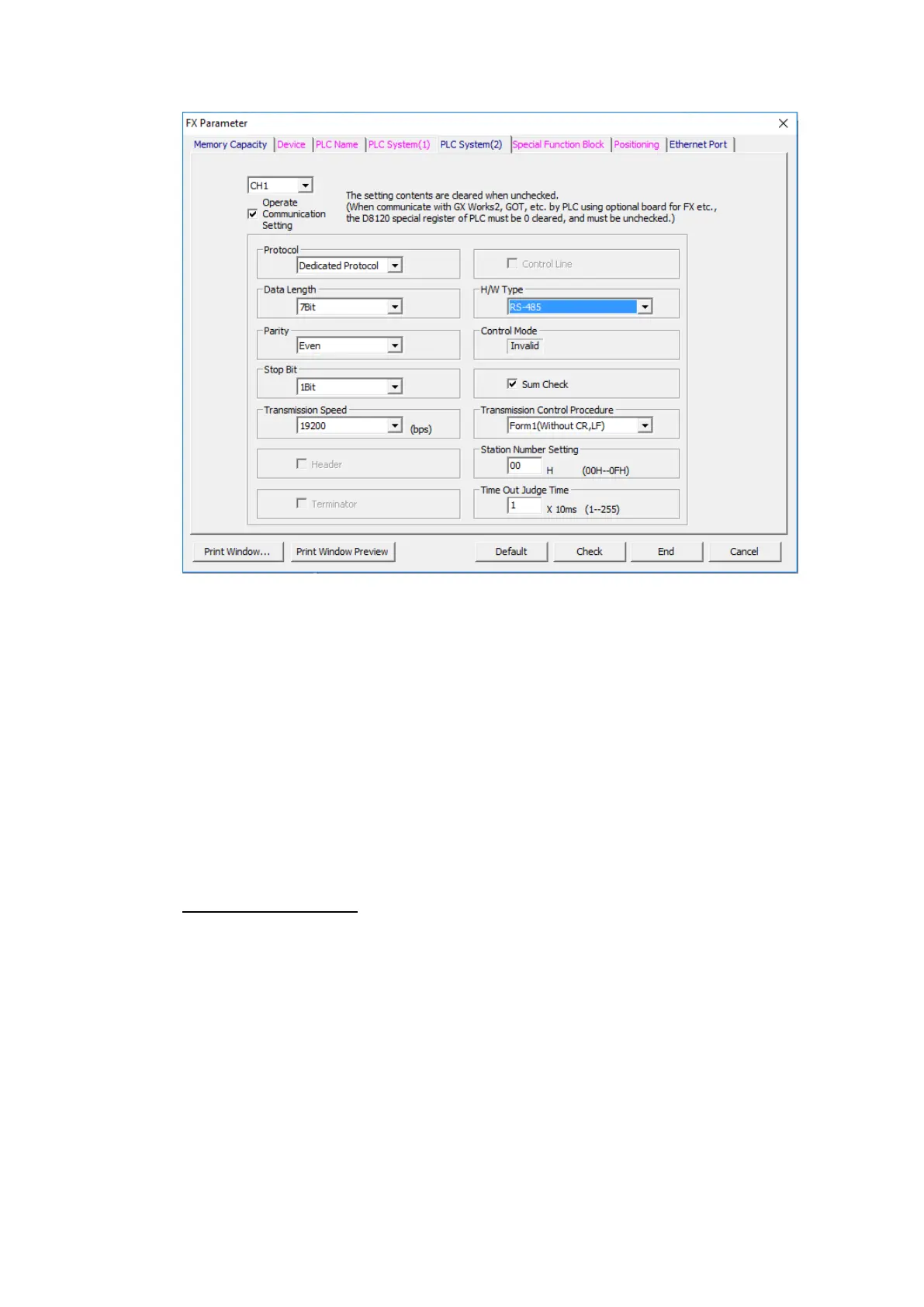

Check Operate Communication Setting to enable configuration
Set Protocol to Dedicated Protocol
Set Parity to Even
Set Transmission Speed to 19200
Set H/W Type to RS-485
Check the Sum Check checkbox
Verify the Station Number is consistent with the one set in FvDesigner.
Note: For more detailed information please refer to the PLC manual.
Connecting PLC to HMI
