FATEK P5043N - Page 75

75

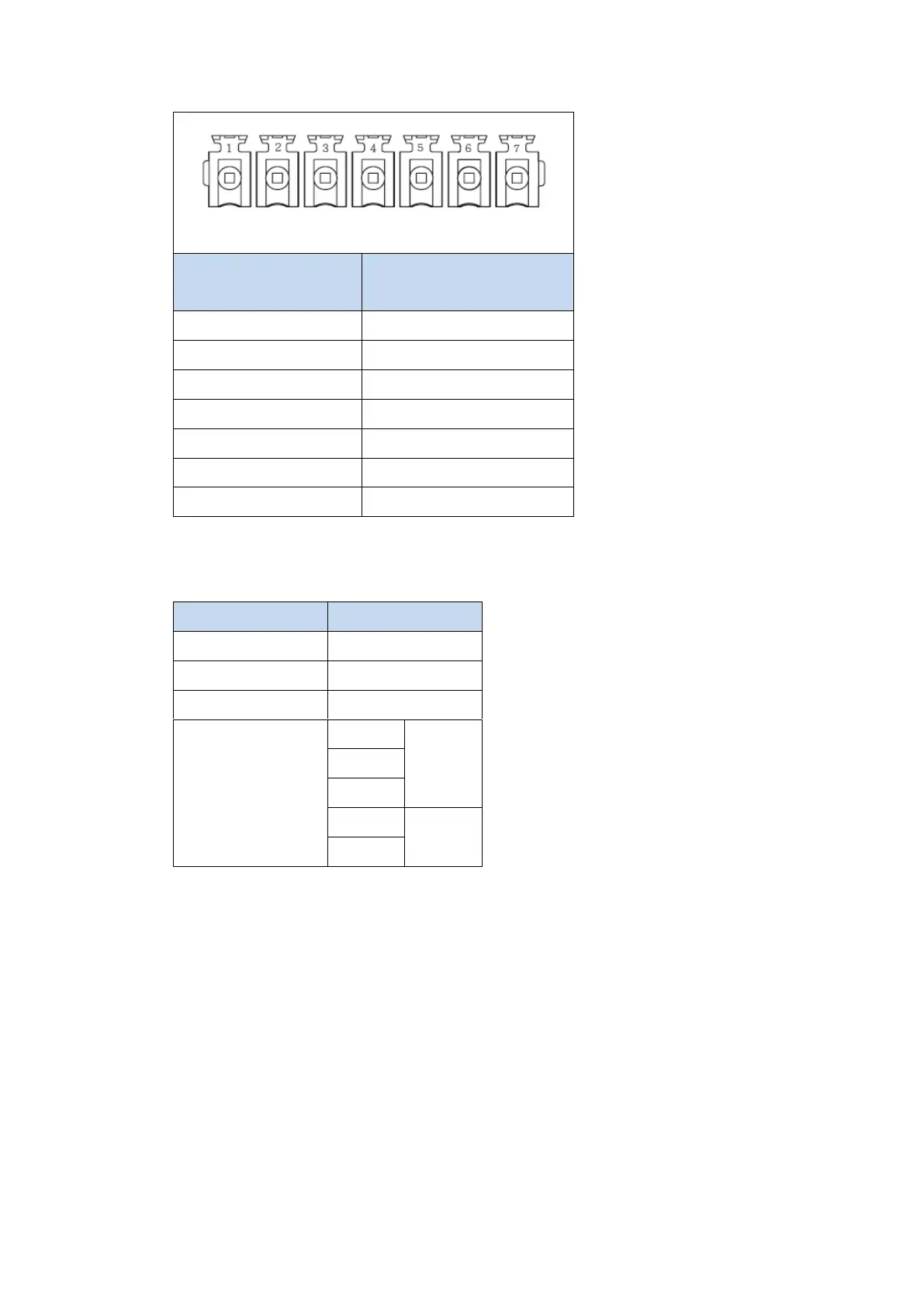

*Looking into HMI Device
PIN#
COM3
(RS-422/RS-485)
1
2
3
ISO_GND
4
RX+
5
RX-
6
TX+
7
TX-
All P5 Series
RS232
HMI COM1
QJ71 RS232 Port
2 RX
3 TXD
3 TX
2 RXD
5 GND
5 GND
1 DCD
circuit
4 DTR
6 DSR
7 RTS
circuit
8 CTS
Wiring Diagrams:RS232
