FATEK P5043N - Page 90

90
6
7
8
9
GND

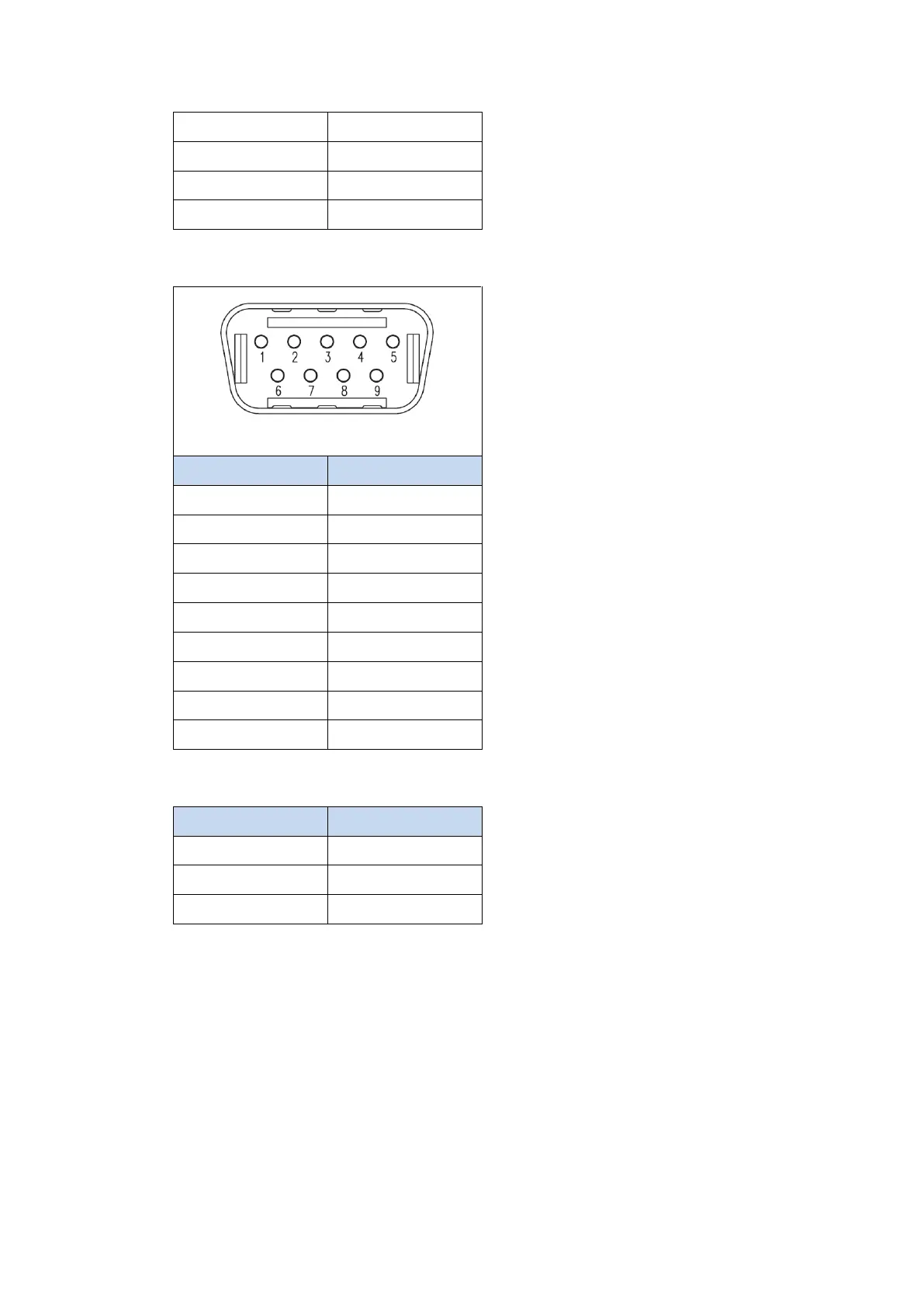

HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
4
5
GND
6
7
RTS
8
CTS
9
All P5 Series
HMI COM1
PLC RS232 Port
2 RX
2 TX
3 TX
3 RX
5 GND
9 GND
Wiring Diagrams:All P5Series
