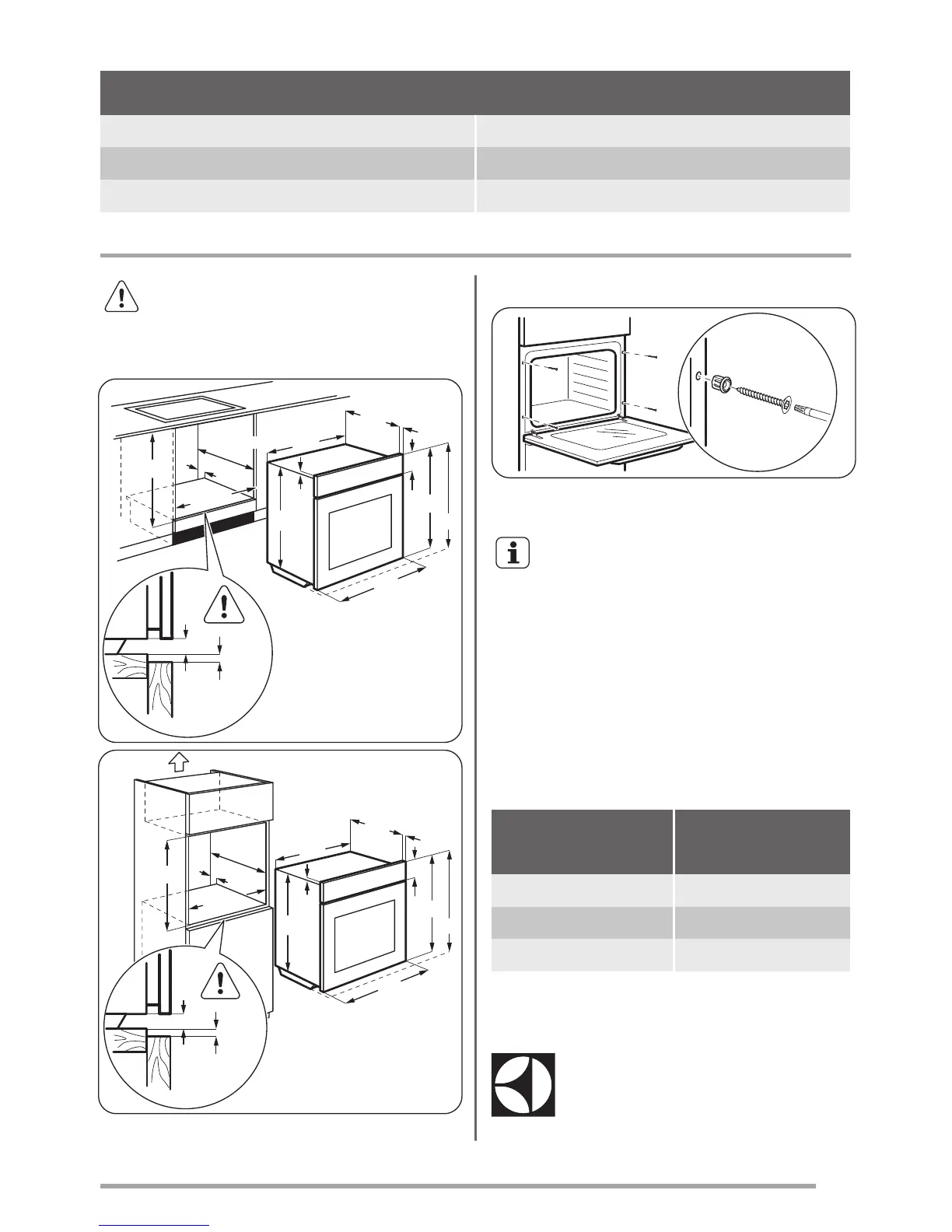

FAURE FFQ27908 - Installation; Securing the Appliance to the Cabinet; Building In; Electrical Installation

We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
Warning! Refer to Safety chapters.
Building In
589
598
594
114
19
21540
570
558
min. 550
20
600
min. 560
3
9
min. 550
20
590
min. 560
589
598
594
114
19
21540
570
558
3
9
Securing the appliance to the cabinet
A
B
Electrical installation
The manufacturer is not responsible if
you do not follow the safety precautions
from the Safety chapters.
This appliance is supplied only with a main cable.
Cable
Cable types applicable for installation or replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-
F (T90), H05 BB-F
For the section of the cable refer to the total power on
the rating plate and to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must be 2 cm
longer than phase and neutral cables (blue and brown
cables).
19
