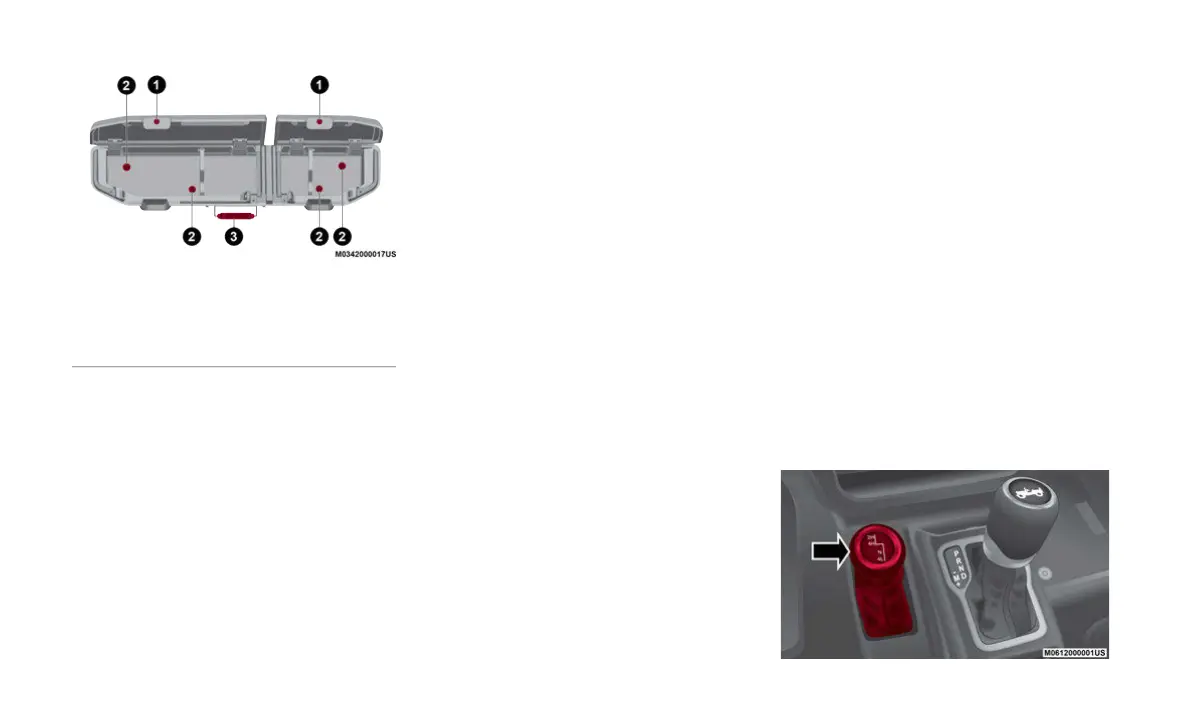

Locking Storage Bin (Open View)
The Locking Storage Bin can be removed by
the four bolts that attach the bin to the
vehicle floor.
STOW CLIPS
Your vehicle is equipped with a stow clip on the
lower trim next to each of the rear seats. This
clip is used to hold the seat belt out of the path
of the seatback when it is being folded and
opened. Only place the seat belt webbing in
this clip while folding and opening the seat. Do
not leave the webbing behind the clip when
using the belt to restrain an occupant.
JACKING AND TIRE
CHANGING
JACKING AND TIRE
CHANGE
The jack and lug wrench are located under
the rear passenger side seat.
To remove the jack and tools:
1. Fold up the passenger side rear seat.
2. T
urn the wing bolt counterclockwise,
remo
ve the wing bolt, and then lift the
assembly out from under the seat.
SPARE TIRE REMOVAL
To remove the spare tire, proceed as follows:
1. Attach the lug wrench to the extension tubes
with the curved angle facing away from the
vehicle.
2. I
nsert the extension tube through the access
hole
located between the lower tailgate and
the top of the bumper, and into the winch
mechanism tube.
3. Rotate the lug wrench handle counterclock-
wise
until the spare tire is on the ground with
enoug
h cable slack to allow you to pull it out
from under the vehicle.
4. Pull the spare tire out from under the vehicle
to g
ain access to the spare tire retainer.
5. Lift the spare tire with one hand to give clear-
ance
to tilt the retainer at the end of the
cable
.
6. Pull the retainer through the center of the
whee
l.
STARTING AND
OPERATING
FOUR-WHEEL DRIVE
OPERATION
Four Wheel Drive Gear Selector
1 — Key Locks
2 — Removable Bolts
3 — Handle
