Febco 805YD - MODEL 805 YD; 806 YD Cut-A-Way; Model 805 Yd;806 Yd Parts

13
4
41.1
17
40
41 42
16
2.17 615
2 150
17.4
9
4.1
14
2.3
2.4
11
5
7.1
3
7.2
17.1
305.1
311
311
301.1
307.1
308
308
309
302
311
304
Vertical Pipe

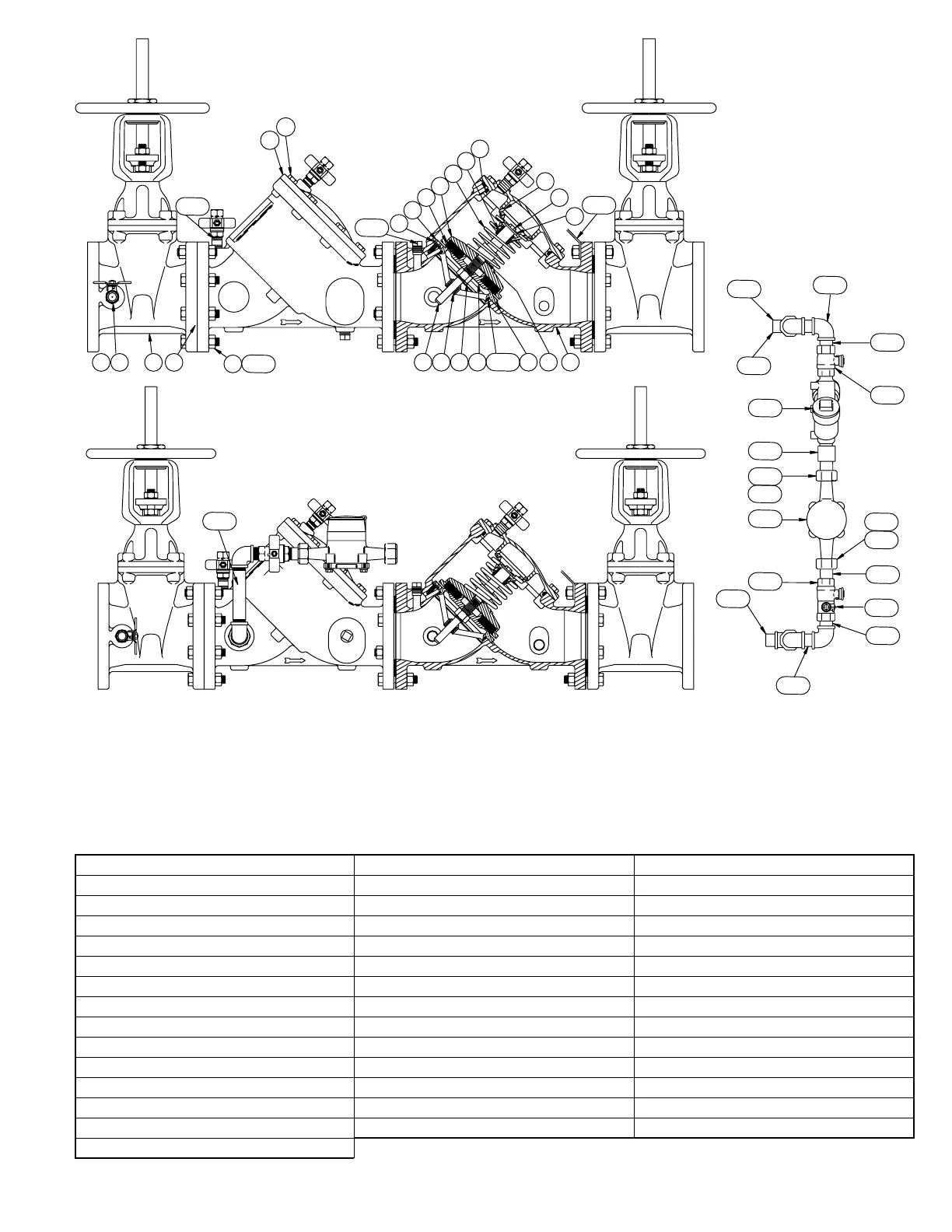

MODEL 805YD / 806YD
Cut-a-Way
MODEL 806YD
By-Pass Assembly
305.1
306
312
313
309
300
303
305.1
10.4
12.1
Fig No. Description (QTY)
1 Body (1)
2 Seat Ring (1)
2.1 Bushing (1)
2.3 Washer (6)
2.4 Capscrew (6)
3 Guide (2)
4 Cover (4)
4.1 Bushing (2)
5 Disc Holder (2)
6 Disc Washer (2)
7 Stem (2)
7.1 Screw (2)
7.2 Washer (2)
9 Spring (2)
11 Seat Disc (2)
MODEL 805YD/806YD PARTS
Fig No. Description (QTY)
12.1 O-Ring (2)
13 Capscrew (16)
14 O-Ring (2)
15 Hex Nut (2)
16 Gasket (1)
17 Capscrew (4)
17.1 Hex Nut (12)
17.4 Lift Strap (2)
40 Ball Valve (3)
41 Nipple (1)
41.1 Nipple (2)
50 O-Ring (2)
42 NRS Gate Valve
42 OS&Y Gate Valve
Fig No. Description (QTY)
300** Meter
301** Nipple
302** Ball Valve
303** Ball Valve
301.1** Testcock
304** Elbow
305** Nipple
306** Nipple
307.1** Tailpiece
308** Coupling Nut
309** Meter Washer
311** Nipple
312** 805Y (Less Shutoff's)
313** Coupling
** Used in the Model 806YD only.
FEBCO Model 805YD & 806YD (2
1
/
2
" - 10") Page 3
