Ethernet-I/P Fieldbus Expansion Unit
PAGE 26

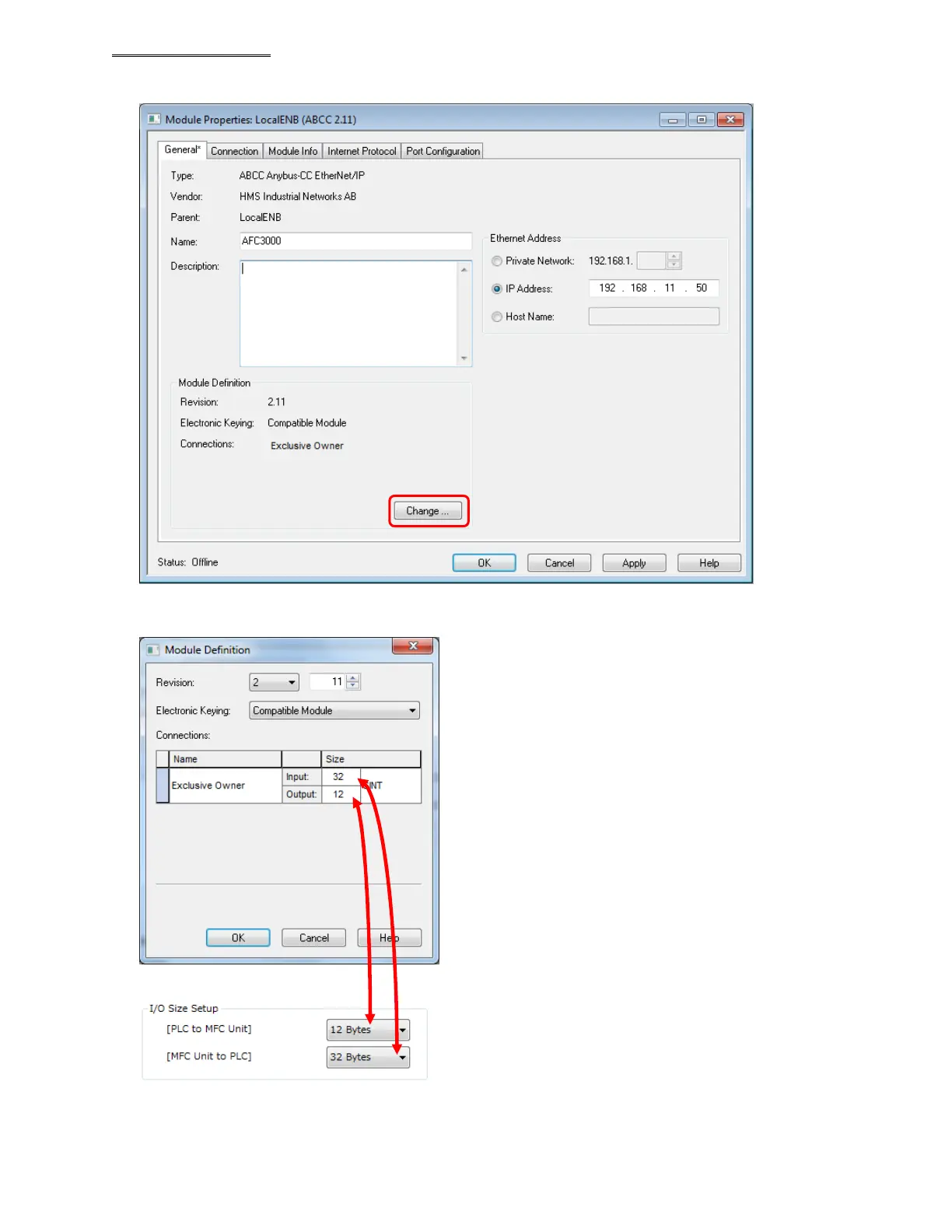

Edit Name of the module and IP address then click “Change…” button for editing I/O Size.
Edit Input and Output size.
NOTE: These values must match with the controller’s setup set at page 4 of this document.
I/O Size Setup for AFC3000 Controller.
Click OK button then click Apply button.
